S5D Five Step Digital Slit Lamp
Illumination Source: LED Lamp
Magnifications: 6X 10X 16X 25X 40X
Slit Width: 0mm~14mm Continuous
Filter: Heat Absorption, Grey, Redfree(Green), Cobalt Blue
Camera: DSLR Digital Camera
Software: Professional Software Included
S5D Ophthalmic Digital Slit Lamp Machine
S5D digital slit lamp is a professional ophthalmology device that provides high definition imaging during eye exam. Ophthalmic doctors can conveniently get digital test results of iris, cornea, and lens. This digital slit lamp has easy-to-use software that is compatible with Microsoft Windows operation system, and you can connect it with any personal computer (you can also purchase the computer from our company). Like conventional S5 slit lamp, S5D is also designed with 5 step magnifications, four color filters, LED lamp, stepless illumination adjustment, adjustable illumination body angle, and detachable base plate.
This ophthalmic slit lamp is equiped with high quality DSLR camera and beam splitter, and it can efficiently transmit images to the computer during the examination. Professional software helps doctors easily manage patient archives, edit and mark images, take a video record, and generate test report.
Input voltage and plug can be produced to conform with your local conditions. If you are a reseller or distributor, we can customize the device with your own logo and label for free.
Features:

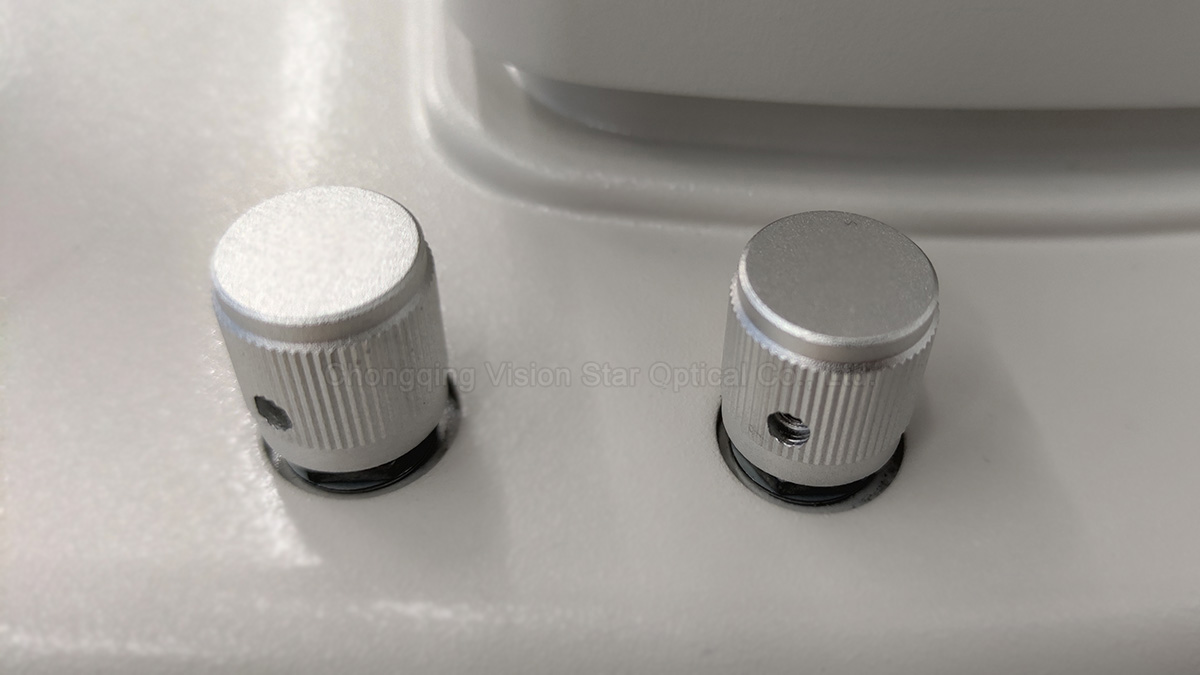

1. 5 Step magnifications, 4 filters, 0 to 14mm spot size, adjustable illumination angle, and stepless illumination meet various examination requirements
2. LED illumination bulb offers stable and soft light, and it improves patient comforts. It also has longer life span than halogen bulb
3. Outstanding optic system ensures high quality imaging and clear view
4. Precise machining technology provides smooth and flexible operation
5. Multifunctional software with simple interface makes it convenient to operate
6. Both image capturing and video recording functions are available
7. Professional image processing system helps doctors make accurate diagnosis
8. Windows based system makes it easy to export and backup patient database to local computer or external devices
S5D Slit Lamp Examinations
![]() |
![]() |
![]() |
Iris Examination | Cornea Examination | Lens Examination |
Professional Software and HD Images
Technical Specifications:
Microscope Type | Parallel |
Magnification changer | Revolving drum |
Eyepiece | 12.5X |
Illumination Source | Imported LED |
Max Illumination Intensity | 60000 Lux |
Total magnification | 6X 10X 16X 25X 40X |
Diameter of Vision field | φ37 φ23 φ14 φ8.7 φ5.7mm (φ23 φ14 φ8.7optonal) |
Diopter adjustment | -7D~ 7D |
Slit image width | 0mm~14mm continuous |
Slit image length | 1mm~14mm continuous |
Diameter of aperture | Ф14mm Ф10mm Ф5mm Ф3mm Ф1mmФ0.2mm |
Slit angle | 0~180 continuously rotation |
Illumination tilting | 5◦ 10◦ 15◦ 20◦ totally 4 step |
Filter | Heat absorption, Grey,red freer(Green), Cobalt blue |
Illumination | LED Bulb or 12V 50W Halogen Bulb |
Fixation | Red LED 3.5V |
Power | In put votage100~240V |
![]() |
![]() |
Workshop | Packaging |
Trusted Services:
1. Video chat to check our factory and products.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
