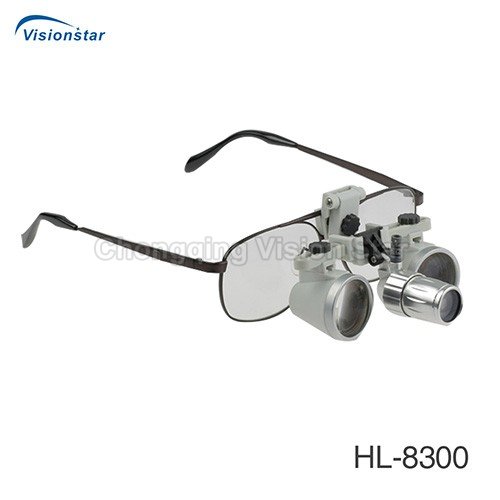

HL-8300 Medical Headlight

Model: HL-8300

MOQ: 1 Set


Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: whatsapp +8613618377608

HL-8300 Headlight

1.Light Source: Our LED lamp has no heat of traditional Halogen headlight. With a color temperature of 5500 Kelvin, it light supplies bright, white, shadow-free light allowing the doctor to see tissue characteristics without distortion.
2.Homogenous illumination of the whole field of view.
3.Enjoy the flexibility of operating the headlight using the rechargeable Lithium battery, it can work without the direct power source. It is one of the most comfortable lightweight headlights and suitable for all kinds of surgery.
4.The headlight could be used when it is charging.
5.Low-battery indicator light.

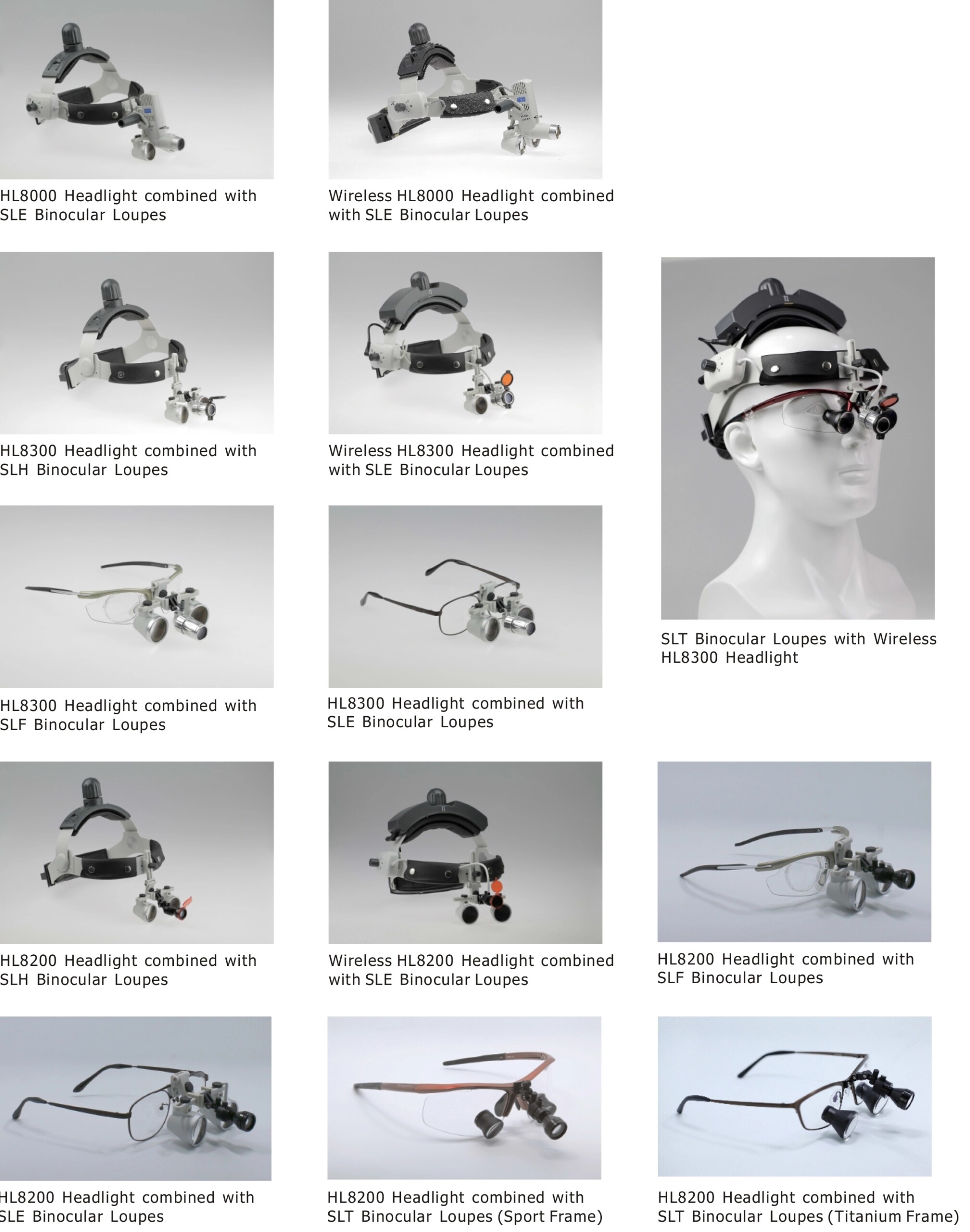

6.Optional adapts to any Binocular Loupes of Zumax,Gallilei, Zeiss, Orascophic TTL, Orascophic Flip Up, Grendel Meier and Heine.
7.Yellow filter reduces blue light, prevents premature curing of composite.
8.Smart design, convenient for mobile diagnosis.

HL-8300 Headlight HL-8300 Headlight


Optical Specification

With Portable Battery Pack

With Wireless Battery Pack

Illumination at 200mm working distance

>35000 Lx

>35000 Lx

Adjustable Range

Direction of Illumination

Vertical ±25° adjustable

Vertical ±25° adjustable


Head lamp



Electrical specifications

Illumination Source

Extremely bright light, 3W LED, life 20, 000 hours continuous burn

Extremely bright light, 3W LED, life 20, 000 hours continuous burn


Lithium battery 7. 4V 2300mAh

Lithium battery 7. 4V 1800mAh

Battery Run- time

≥ 9 hours

≥6 hours

Input voltage

100- 240VAC

100- 240VAC

Maximum Power input



Electrical Safety  standard

IEC60601. 1, class II equipment

IEC60601. 1, class II equipment

With more than 20 years experience in ophthalmology, Chongqing Vision Star now has become a professional manufacturer and supplier for ophthalmic and optometry equipment. Our main products include slit lamp, fundus camera, tonometer, OCT machine, AB scan, vision field analyzer, etc. These products are CE and FDA approved. With high technology and artifical intelligence, our ophthalmology diagnostic machines show clear image and accurate results of eyes, helping doctors to provide treatment solution for the patient. The products have been exported to more than 100 countries, and widely praised among our customers. Our company have expert sales team and technician team, provide 1-3 years quality warranty, technical support, and life time after-sales service. We are committed to building a good brand, providing sincere service, and establishing long-term cooperative relationship with our customers. We are glad to have video call with you, introducing our product details to you so that you can know our company and our products better. Please contact us if you are interested in HL-8300 Medical Headlight.
