LM-2600A Digital Auto Lensmeter
LM-2600A Auto Lensmeter is used for measuring various types of lenses, such as single vision lenses, bifocal or trifocal lenses, progressive power lenses, and contact lenses. You can also test green, UV (ultraviolet), and blue light pass-through-rate of the lens with this auto lens meter.
LM-2600A Auto Lensmeter
Previously called JD-2600A
Video:
LM-2600A Auto Lensmeter Features:
Adjustable LCD Display Screen: Tilting color screen provides you with clear view from any position either sitting or standing;
Sensitive touch LCD display Screen: You just need to touch the screen to finish measurement. It is easy and convenient to operate.
Hartmann Sensor technology: This auto lensmeter is designed with Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides fast measurement with improved accuracy and reliability.
User-friendly Operation Interface: Easy to use with recognizable icons. The LM-2600A provides a user-friendly graphical interface for immediate understanding.
Applicable for various types of lenses: You can test various lenses with this auto lensmeter, inlucding single vision, progressive, contact lenses and so on.
Built-in Thermal Printer: Quick data printing with built-in printer. Easy to reload printing paper.
LM-2600A Auto Lensmeter Pictures:
Software Interfaces
 |
 |

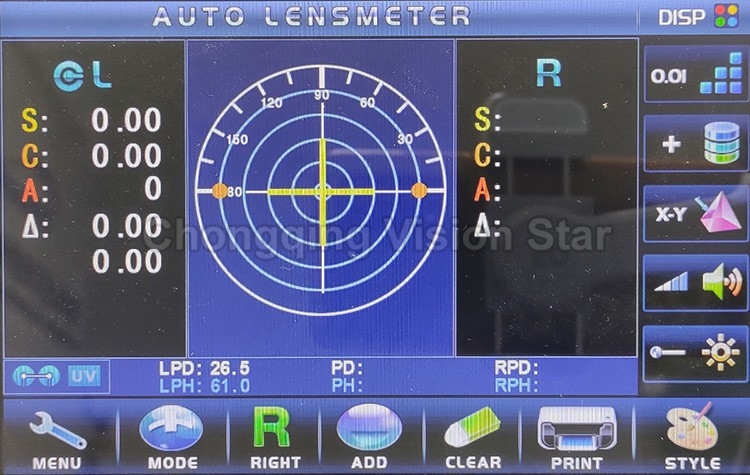

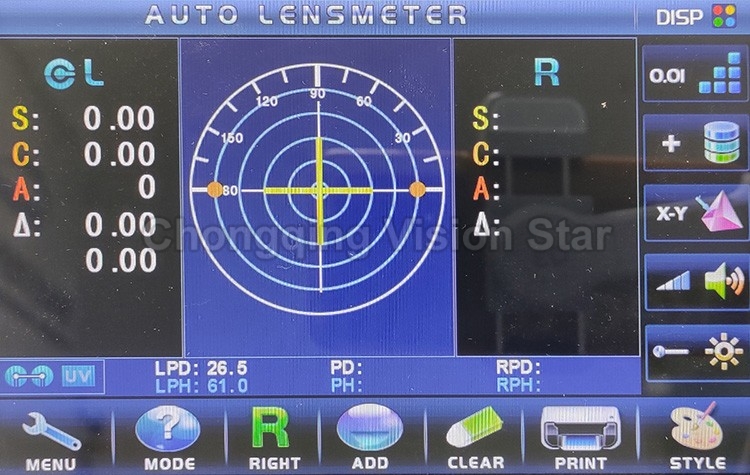

| Automatic Lens Type Detection | Single Vision Lens Test |
 |
 |

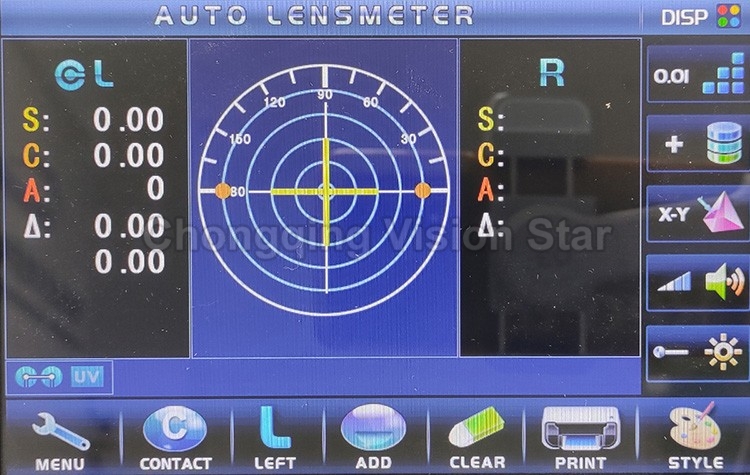

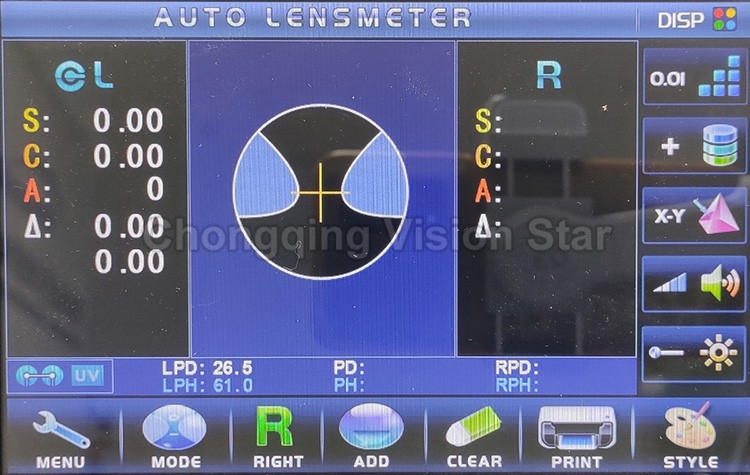

| Progressive Lens Test | Contact Lens Test |
 |
 |

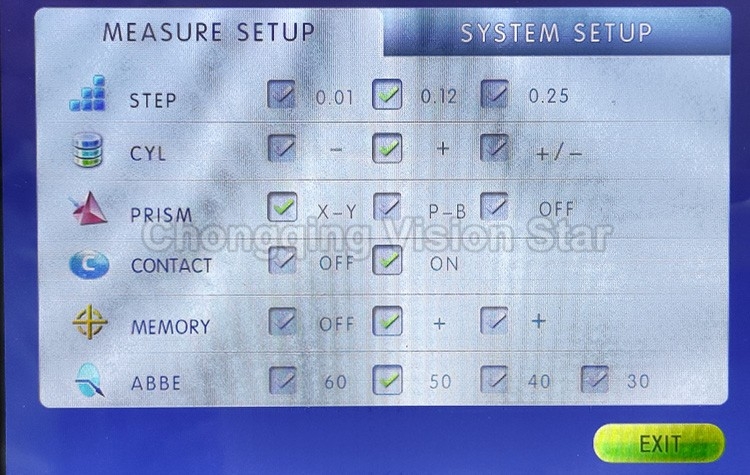

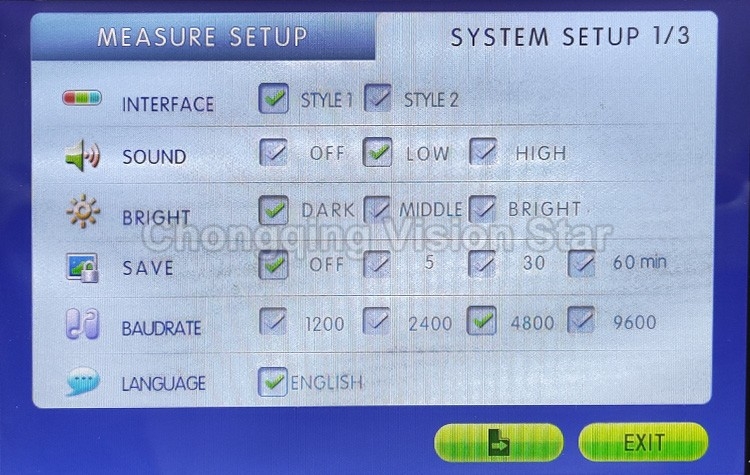

| Measurement Parameters Setup | System Setup |
High Speed UV, Blue and Green Light Measurement: Accurate light transmittance measurement system will directly display light passing-through rate.
 |
 |

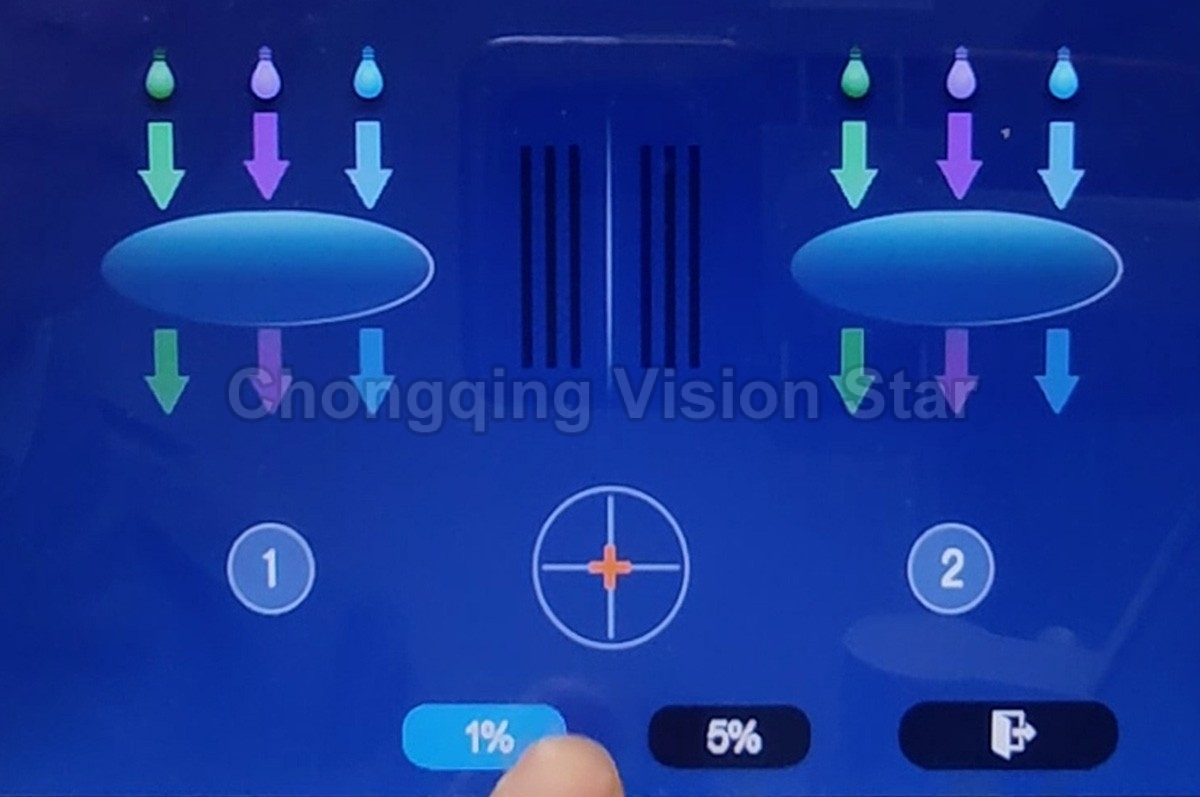

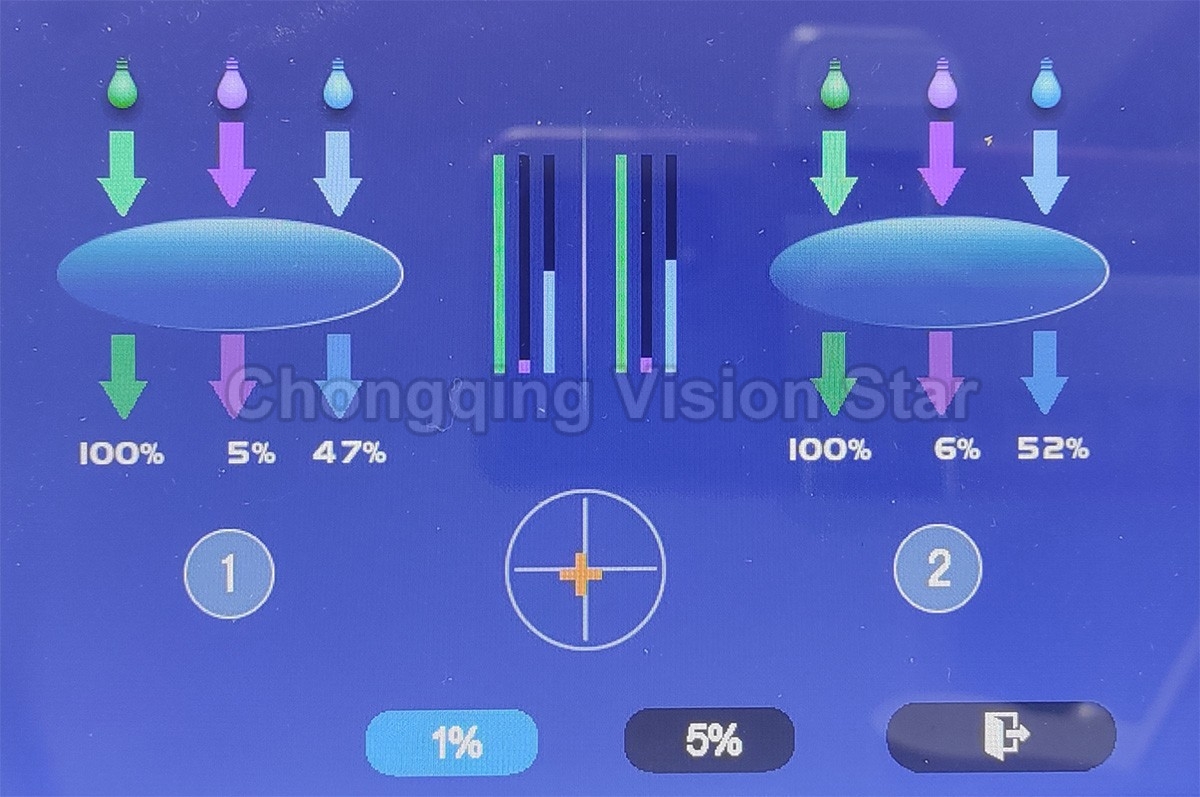

| UV Test Accuracy Setting | UV Test Results |
LM-2600A Auto Lensmeter Specifications:
| Range of measurement | |
| Sphere | 0~ – 25D, 0.01/0.12/0.25D step; |
| Cylinder | 0~ -9.99 D 0.01/0.12/0.25D step. |
| Axis | 0-180 ° (1 ° step) |
| Add. | 0-9.99 D 0.01/0.12/0.25D step. |
| Prism degree | 0-15 D 0.01/0.12/0.25D step. |
| Measurement mode | |
| Cylinder | , /-, – |
| Prism | X-Y, P-B |
| Contact Lens | soft/hard; |
| Measuring mode | Single/progressive/automatic recognition |
| Specifications | |
| Diameter of lens | 20-108mm; |
| PD | 40-90mm, 0.5mm step; |
| Speed of measurement | 0.1s |
| Display | JD-2600A: 7” TFT LCD; |
| Printer | Thermal Printer |
| Weight | 5.5kg |
| Power supply | 100-240V, 50-60HZ |
Trusted Services:
1. Video chat to check our factory and products.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
We warmly welcome you to directly visit our company in Chongqing, China. Contact us now, and schedule your visit.
