LM-6800P/LM-6800C Digital Auto Lensmeter
LM-6800P/LM-6800C Digital Auto Lensmeter

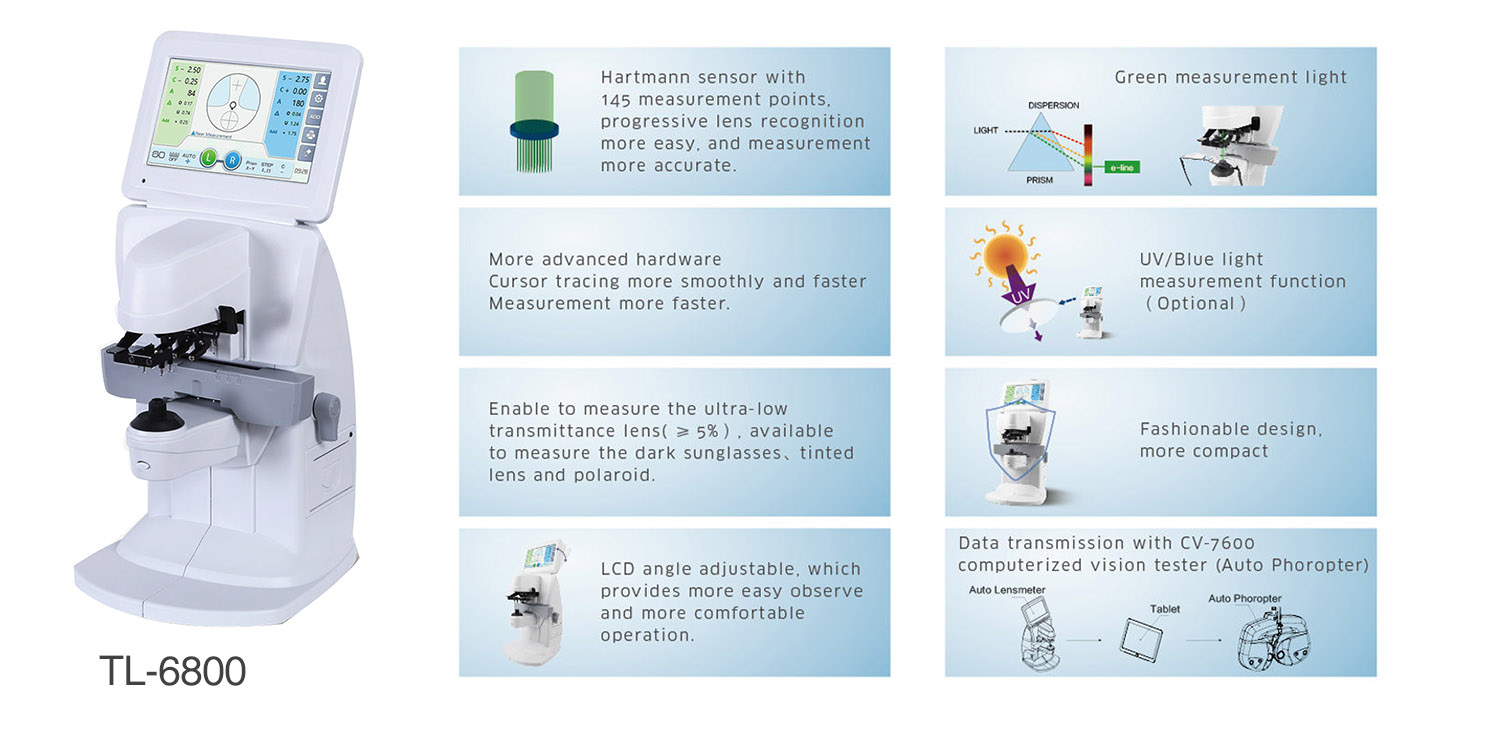

Features:
1.More advanced hardware cursor tracing more smoothly and faster measurement more faster.
2.Enable to measure the ultra-low transmittance lens(≥5%), available to measure the dark sunglasses/tinted lens
and polaroid.
3.LCD angle adjustable, which provides more easy observe and more comfortable operation.
4.Hartmann sensor with 145 measurement points, progressive lens recognition more easy, and measurement more accurate.
5.Green measurement light.
6.UV/Blue light measurement function(Optional)
7.Fashionable design, more compact

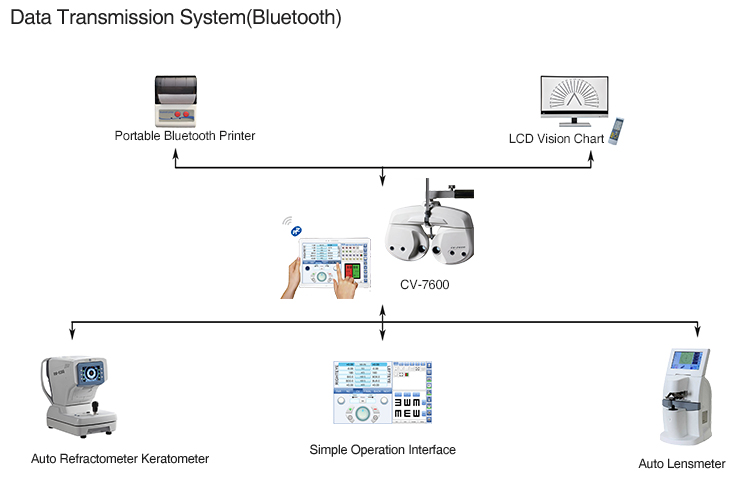

8.Date transmission with CV-7600 computerized vision tester (Auto phoropter)
Specifications:
Measurement range
|
Sphere |
-25.00 to 25.00 (Step:0.01/0.06/0.12/0.25D) |
Cylinder |
0 to ±10.00D (Step:0.01/0.06/0.12/0.25D) |
|
Axis |
0 to 180°(Step:1°) |
|
ADD |
0 to 10.00D (Step:0.01/0.06/0.12/0.25D) |
|
Prism |
0 to 20∆ (Step:0.01/0.06/0.12/0.25∆) |
|
Measurable lens diameter |
Φ 10 to 119mm |
|
Measurement mode
|
Cylinder |
-,MIX, |
Prism |
X-Y,P-B |
|
PD measurement |
42.0 to 82.0mm,Single vision PD, Progressive lens far vision PD |
|
Wavelength/Measuring point |
525nm(green)/145 within nosepiece |
|
Display |
7.0-inch touch screen(800×480) |
|
Printer |
Build-in thermal printer |
|
Interface |
RS232/LAN/USB |
|
Dimensions |
203(W)×233(D)×471(H)mm |
|
Weight |
4.5kg |
|
Power Supply |
AC 100 to 240 V, 50/60HZ |
Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.
With more than 20 years experience in ophthalmology, Chongqing Vision Star now has become a professional manufacturer and supplier for ophthalmic and optometry equipment. Our main products include slit lamp, fundus camera, tonometer, OCT machine, AB scan, vision field analyzer, etc. These products are CE and FDA approved. With high technology and artifical intelligence, our ophthalmology diagnostic machines show clear image and accurate results of eyes, helping doctors to provide treatment solution for the patient. The products have been exported to more than 100 countries, and widely praised among our customers. Our company have expert sales team and technician team, provide 1-3 years quality warranty, technical support, and life time after-sales service. We are committed to building a good brand, providing sincere service, and establishing long-term cooperative relationship with our customers. We are glad to have video call with you, introducing our product details to you so that you can know our company and our products better. Please contact us if you are interested in LM-6800P/LM-6800C Digital Auto Lensmeter.
