VT-5C Manual Phoropter

Name: VT-5C Manual Phoropter
Brand: Chongqing Optometry and Ophthalmic Equipment Manufacturer
SKU: VT-5C
Rating: 5 (1 reviews)

Model: VT-5C

MOQ: 1 Set

VT-5C Phoropter

Video:

Features:
1. Top-grade quality View Tester
2. Elegant design of butterfly-shape appearance
3. High grade plated-film used in all optic lenses
4. This device is applicable to ophthalmology department of hospitals and spectacle stores for precision measurement of visual functions such as myopia, hyperopia, astigmatism, eyesight balance, heterophoria, stereoscopic vision and eyesight amalgamation.
5. Two colors for option

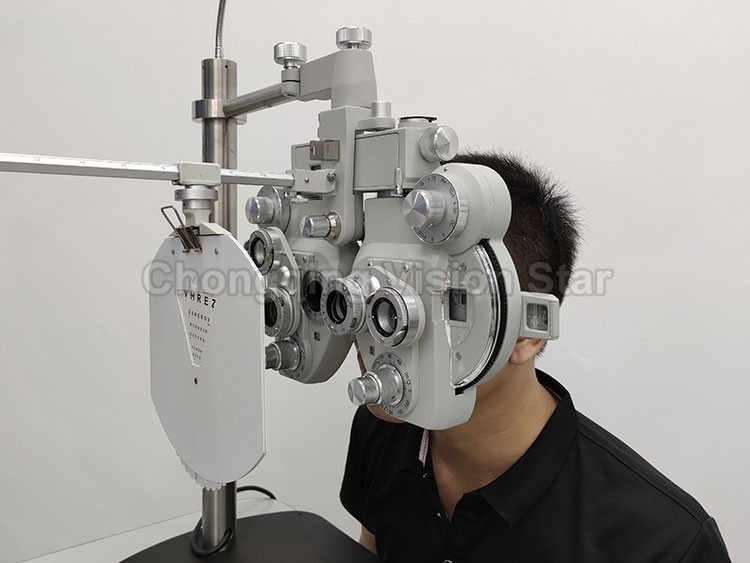

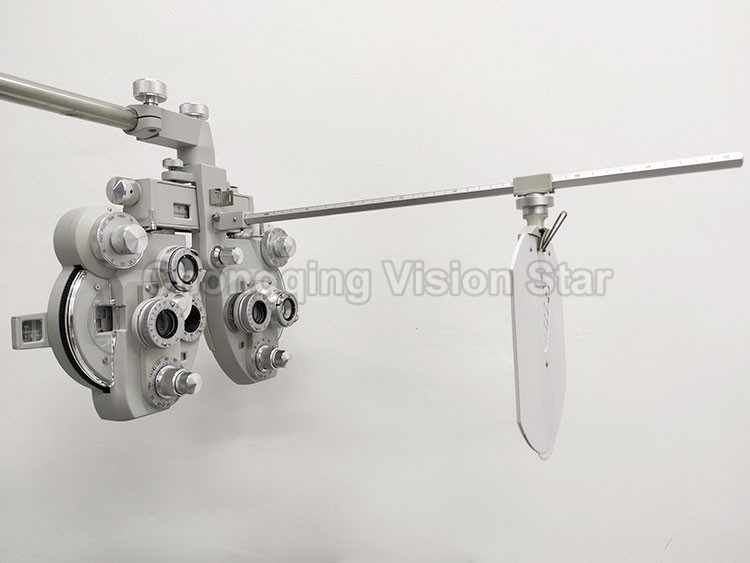

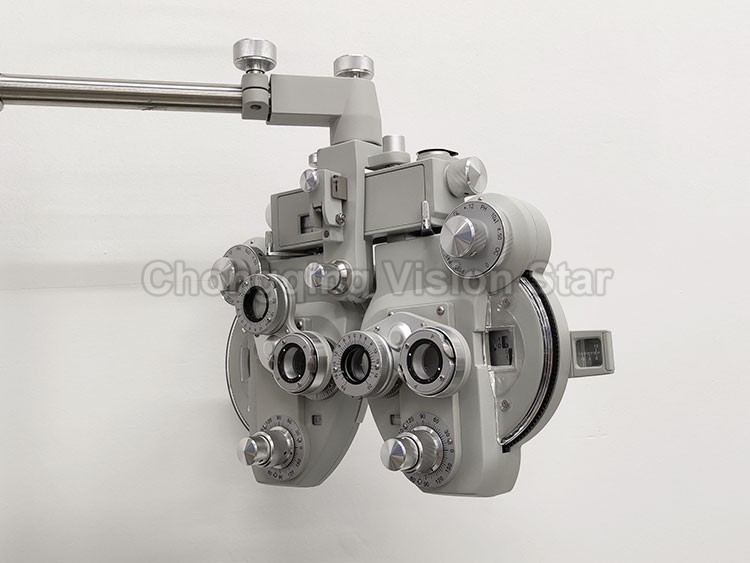

Pictures

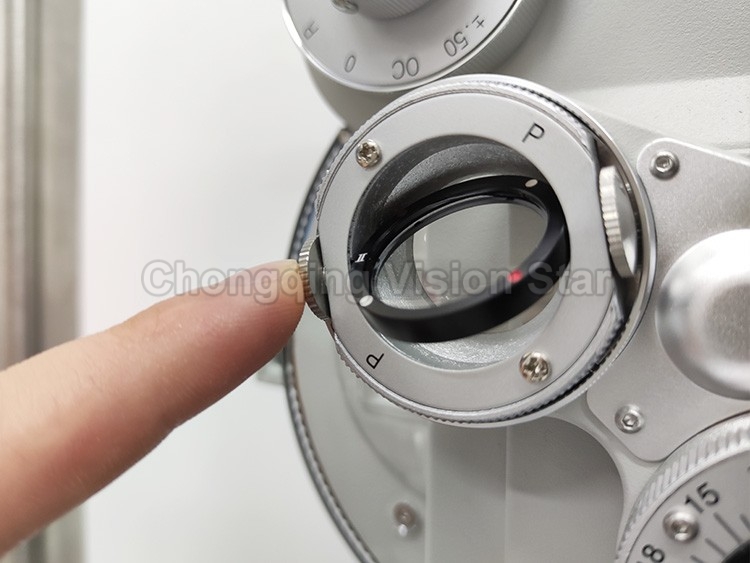

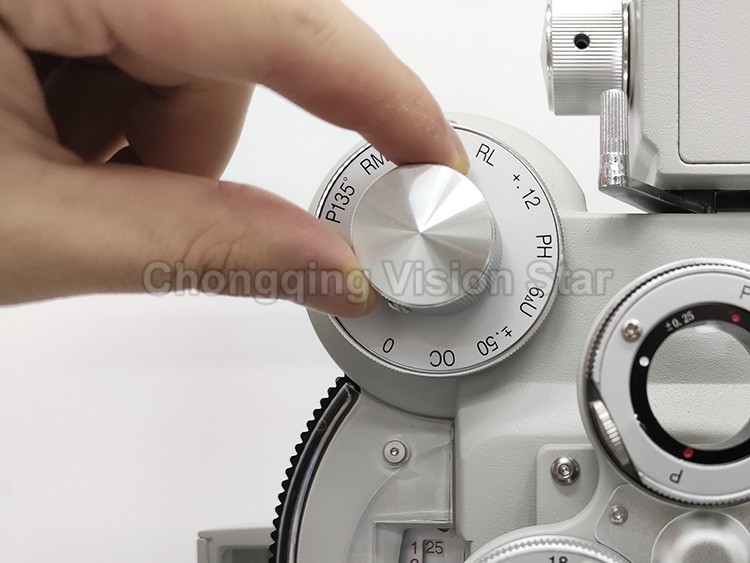

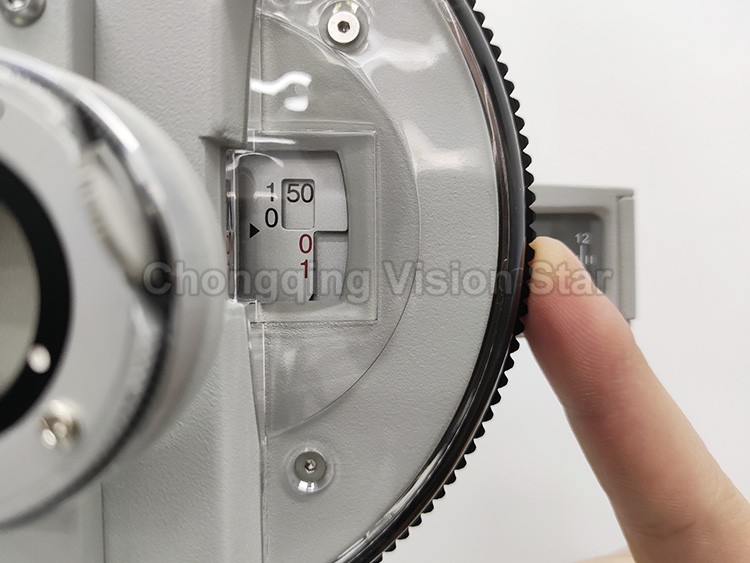

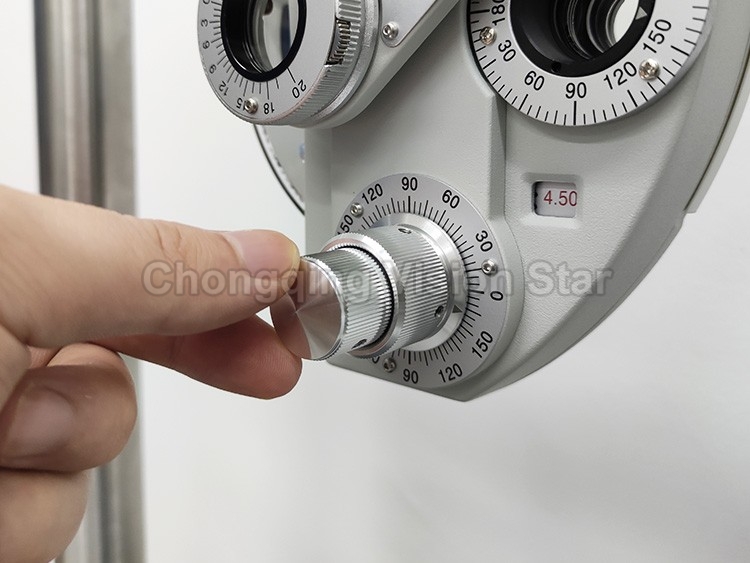

Adjustable Parts

Specifications：

Sphere powers range	±16.75Dto-19.00D,with minimum reading 0.25D or 0.12D
(when 0.12D auxiliary lens or optional±0.12D lens is in use)
Cylinder powers range	0 to-6.00D,with minimum reading 0.25Dor0.12D
( when auxiliary lens is in use) 0 to-8.00D
( when-2.00D auxiliary lens is in use)
Astigmatic axis scale	0 to 180°in 5°steps
Cross Cylinder	reversal type (synchronized with astigmatic axis) ±0.25D,or±0.50D
Rotary prism	0 to20△D in 1△D steps
P.D. adjustment	48-80mm;Step:1mm
Forehead rest adjustment	16mm forward and backward
Convergence	The optical axes 0g thelenses are aligned at a diatance of 400mm from the vertexes of the corneas (2mm each for right and left inward)Interpupillary distance enabling convergence=57mm to 80mm
Corneal distance device	2mm forward and 5mm backward from standard plane;with scale
Effective field of view	19mm
Weight	5kgs
Size	291-323mm×315mm×85mm

With more than 20 years experience in ophthalmology, Chongqing Vision Star now has become a professional manufacturer and supplier for ophthalmic and optometry equipment. Our main products include slit lamp, fundus camera, tonometer, OCT machine, AB scan, vision field analyzer, etc. These products are CE and FDA approved. With high technology and artifical intelligence, our ophthalmology diagnostic machines show clear image and accurate results of eyes, helping doctors to provide treatment solution for the patient. The products have been exported to more than 100 countries, and widely praised among our customers. Our company have expert sales team and technician team, provide 1-3 years quality warranty, technical support, and life time after-sales service. We are committed to building a good brand, providing sincere service, and establishing long-term cooperative relationship with our customers. We are glad to have video call with you, introducing our product details to you so that you can know our company and our products better. Please contact us if you are interested in VT-5C Manual Phoropter.
