P03 Hand-Held Slit Lamp

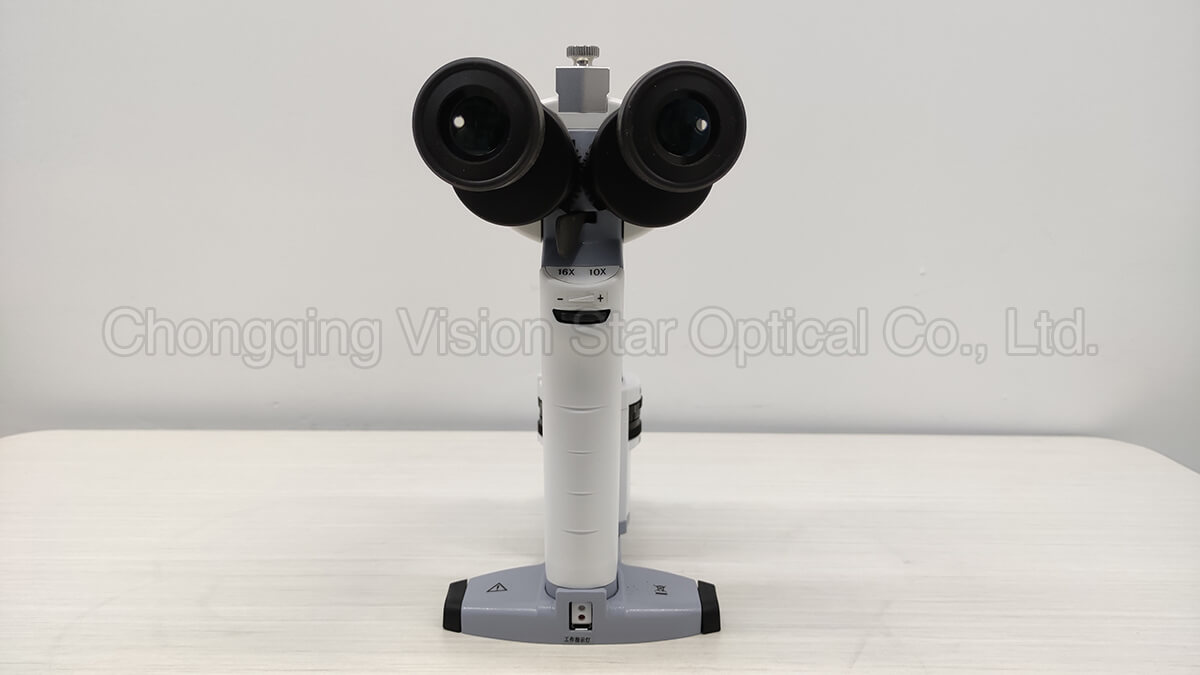

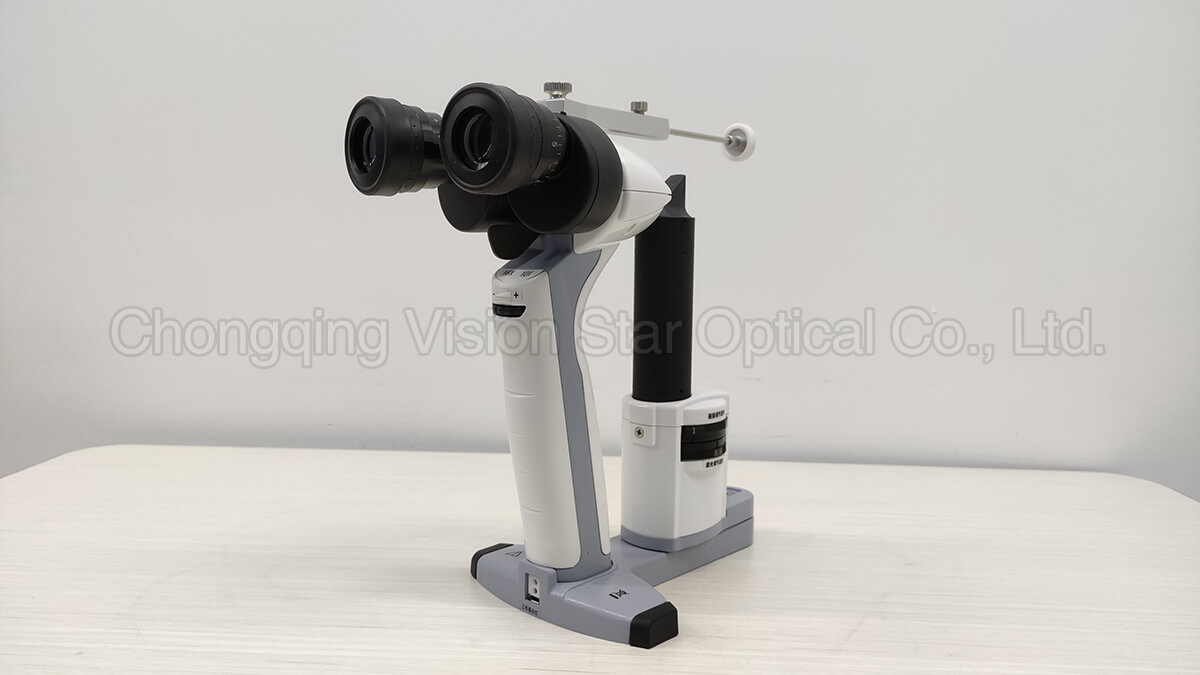

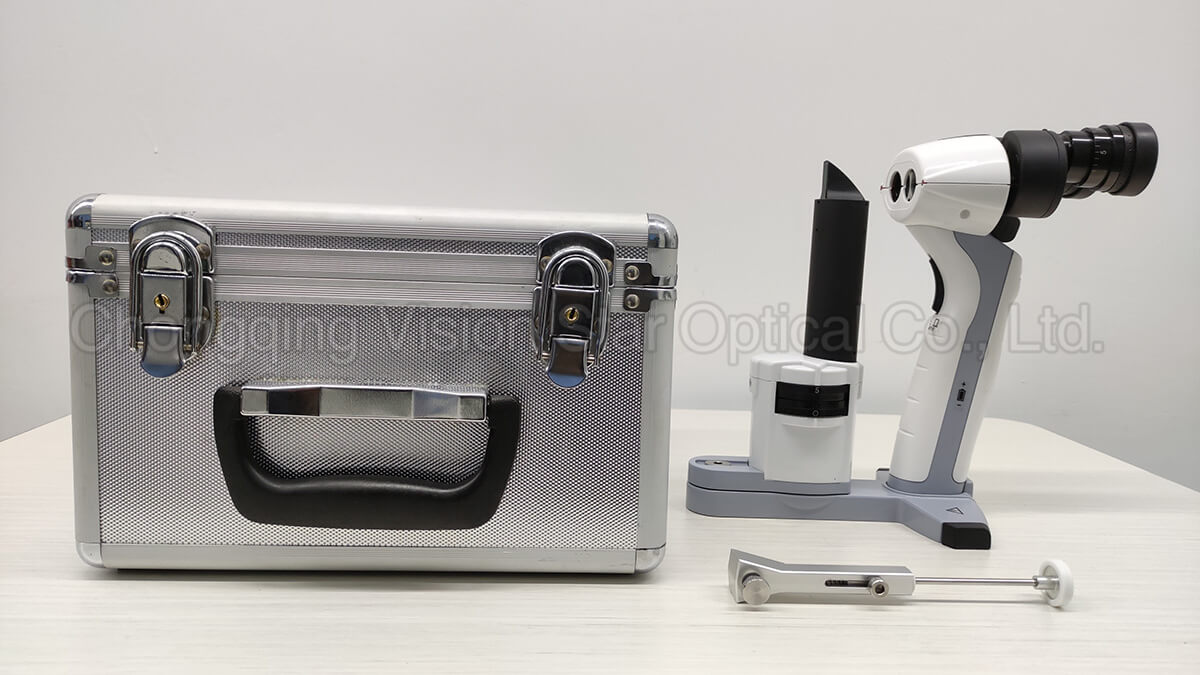

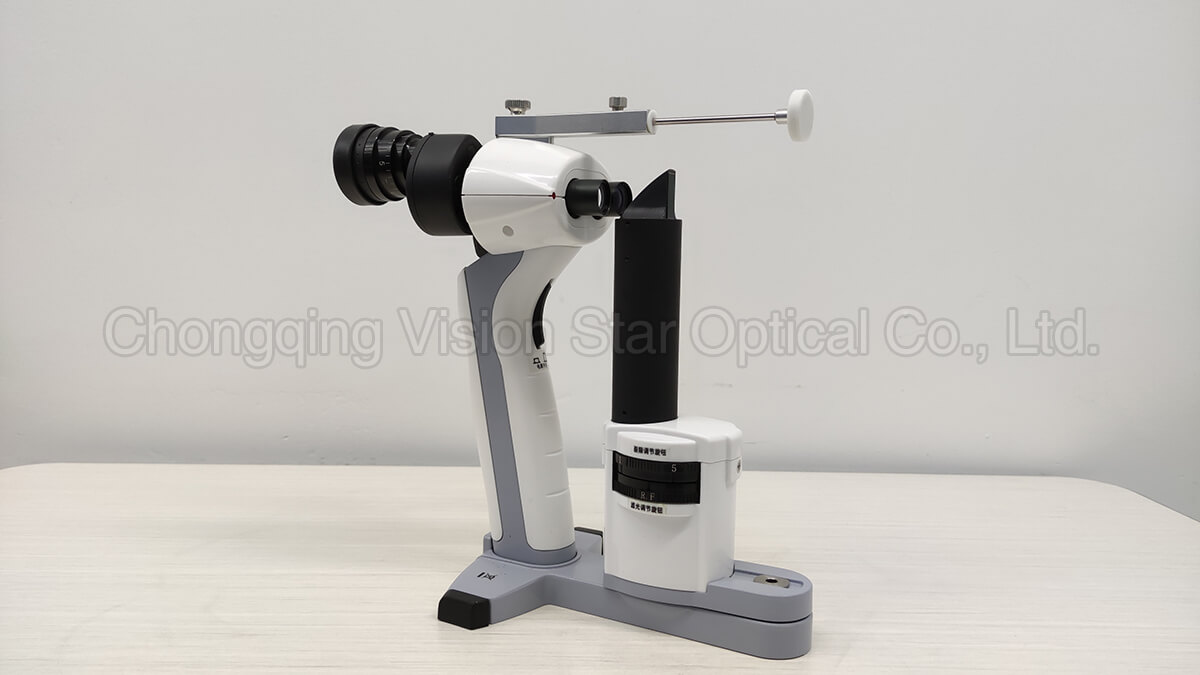

P03 ( Previously called S-02) is a portable slit lamp machine for eye exam. It has two step magnifications (10x, 16x) for ophthalmologist to have a clear view on iris, cornea, and lens. This slit lamp features LED illumination light, max 12mm slit width, stepless light brightness adjustment, and adjustable slit angle. It provides 4 filters (heat-absorption, color temperature compensation, red free,cobalt blue) to meet different exam requirements.

Video:

Features:

1. Magnification: 10x, 16x

2. High-performance and easy to operate

3. 60º Slit Angle for the better observation of corneal section

4. One-hand magnification switch

5. 50% Increased Visual Range

6. 450k high Illumiance to meet outside use

7. Iphone Adapter (Optional)

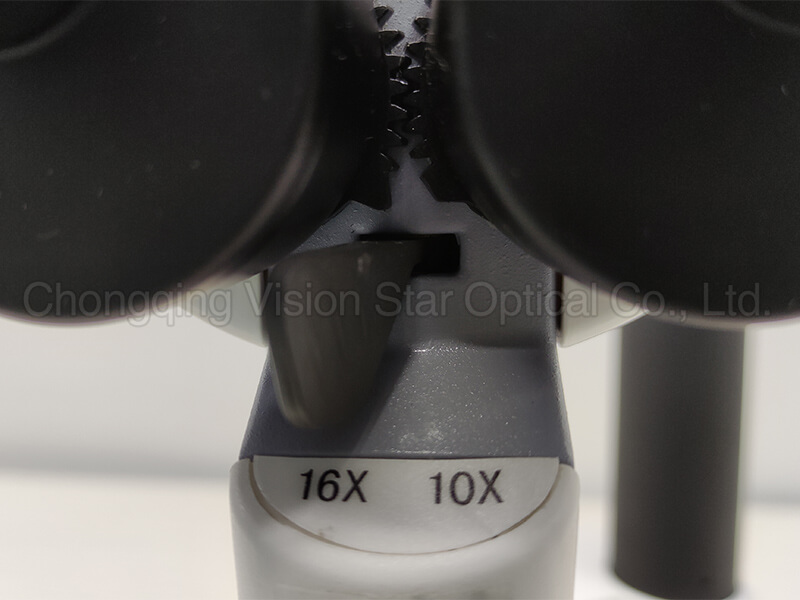

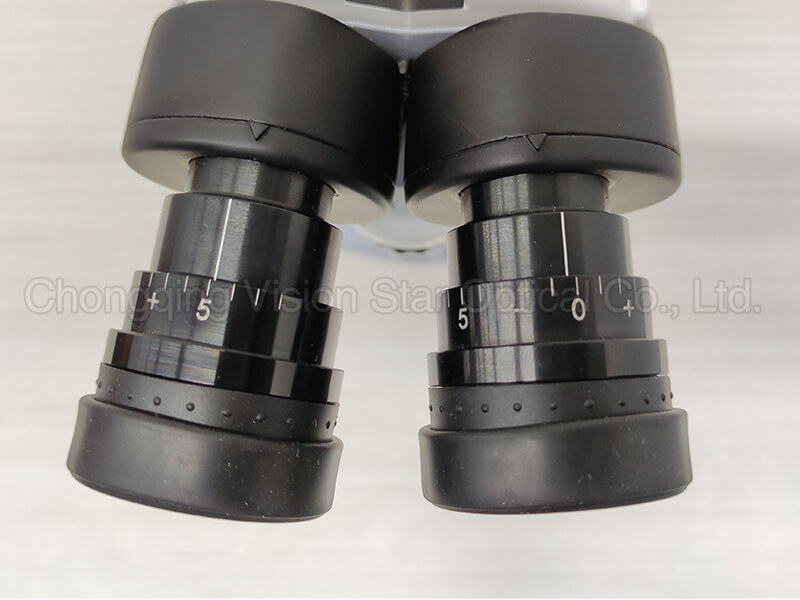

12.5x magnification eyepieces	2 magnification

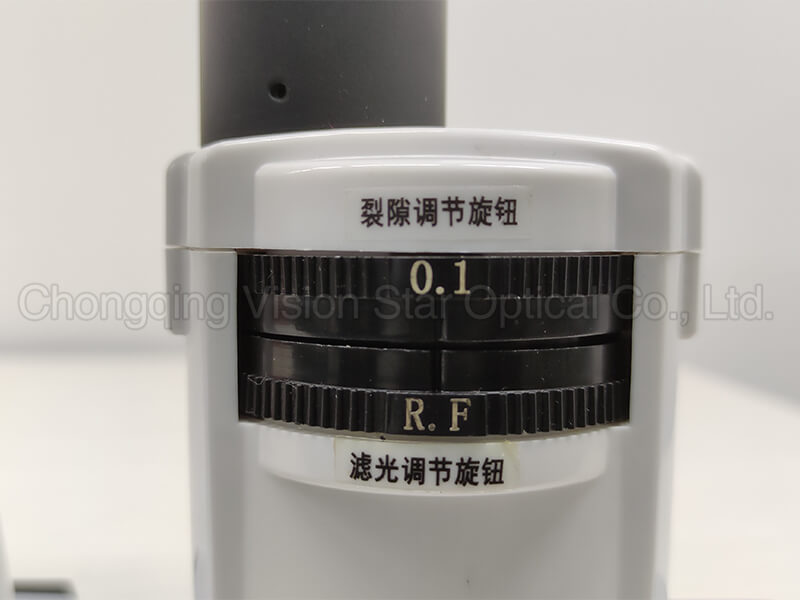

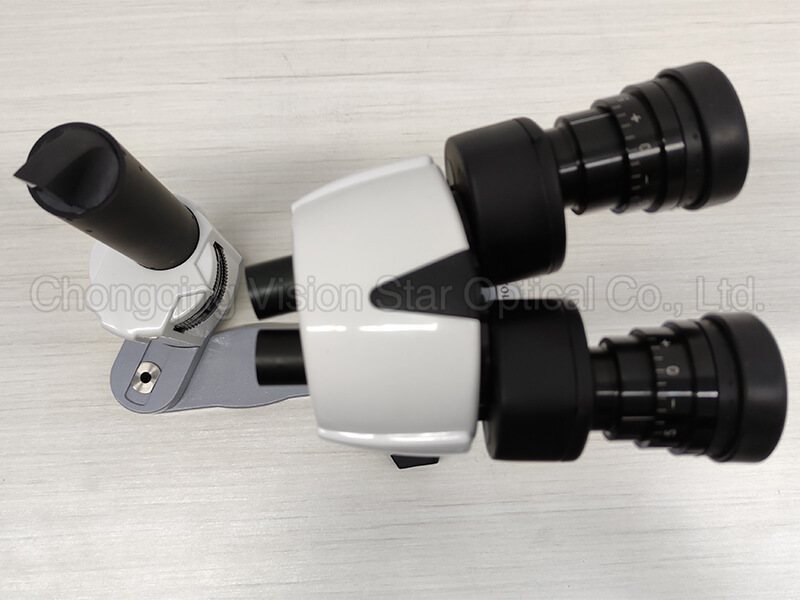

Adjustable light spot size	Adjustable slit angle (maximum 60 degrees)

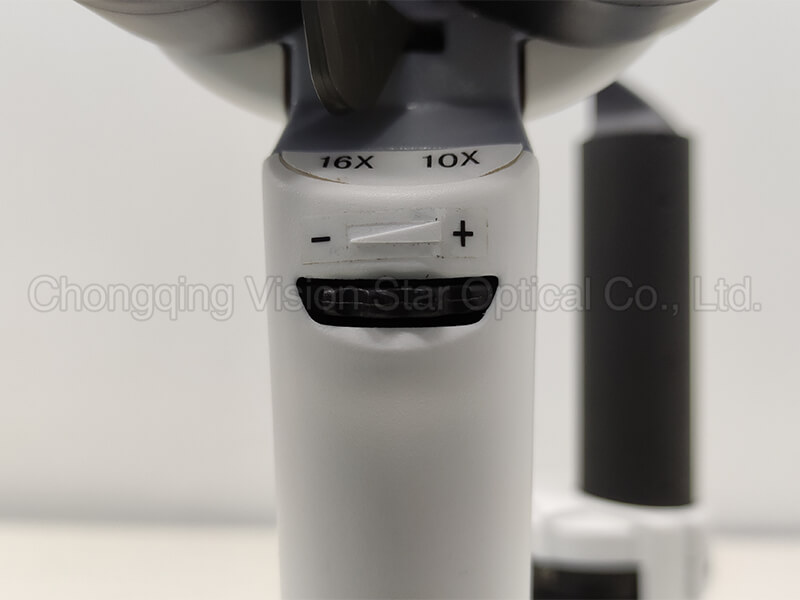

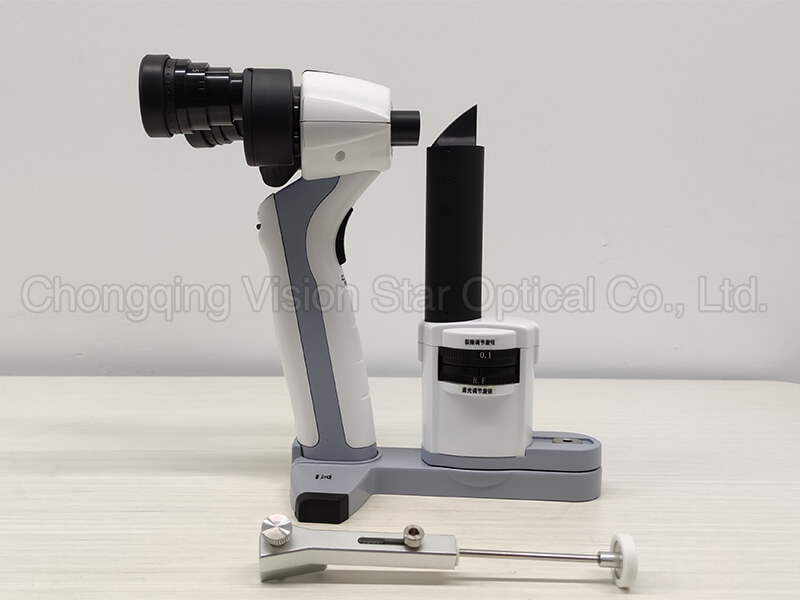

Stepless light brightness adjustment	Detachable forhead mandrel



Model		S-02
Microscope	Type	Binocular Handheld Slit Lamp
	Eyepiece	Convergence binoculars, 13 degree
	Magnification	10X, 16X
	Working Distance	80mm
	Pupil Distance	45mm~ 78mm
	Diopter Compensation	-8D~+8D
Illumination	Slit Width	0.15mm, 0.5mm, 0.8mm, 1.6mm, 12mrm, 1X1mm Block
	Slit Length	12mm
	Slit Angle	Horizontal 160
	Filter	Heat-Absorption, Color Temperature Compensation, Red Free, Cobalt blue
	Light Source	White LED
	Maximum Illumination	> 50000Lux
Power Source	LED Working Voltage	DC7 4V, 950mAh
	Battery	Li-ion battery 7.4V/950mAh, continuous working time > 3 hours after fully charged
