CSW-7000 Specular Microscope

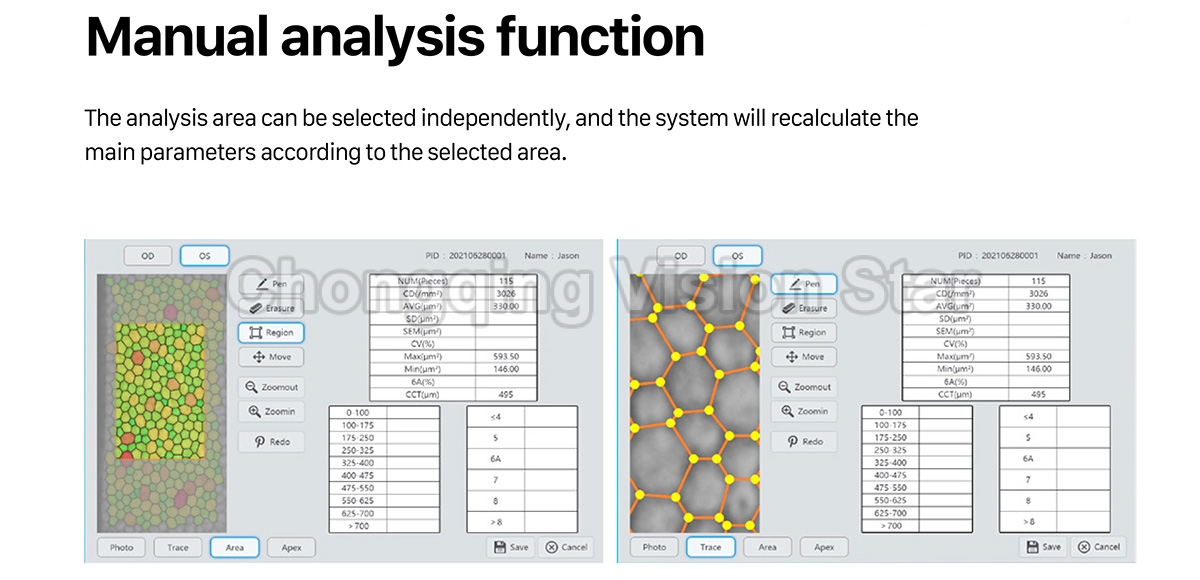

* Auto pupil detection, auto alignment, auto shooting, auto analysis, manual analysis function
* 10 inch LCD touch screen
* Wide field of view & multiple measuring points
* Central corneal thickness measurement
* Support DICOM3.0, USB*2, LAN*1
CSW-7000 Specular Microscope

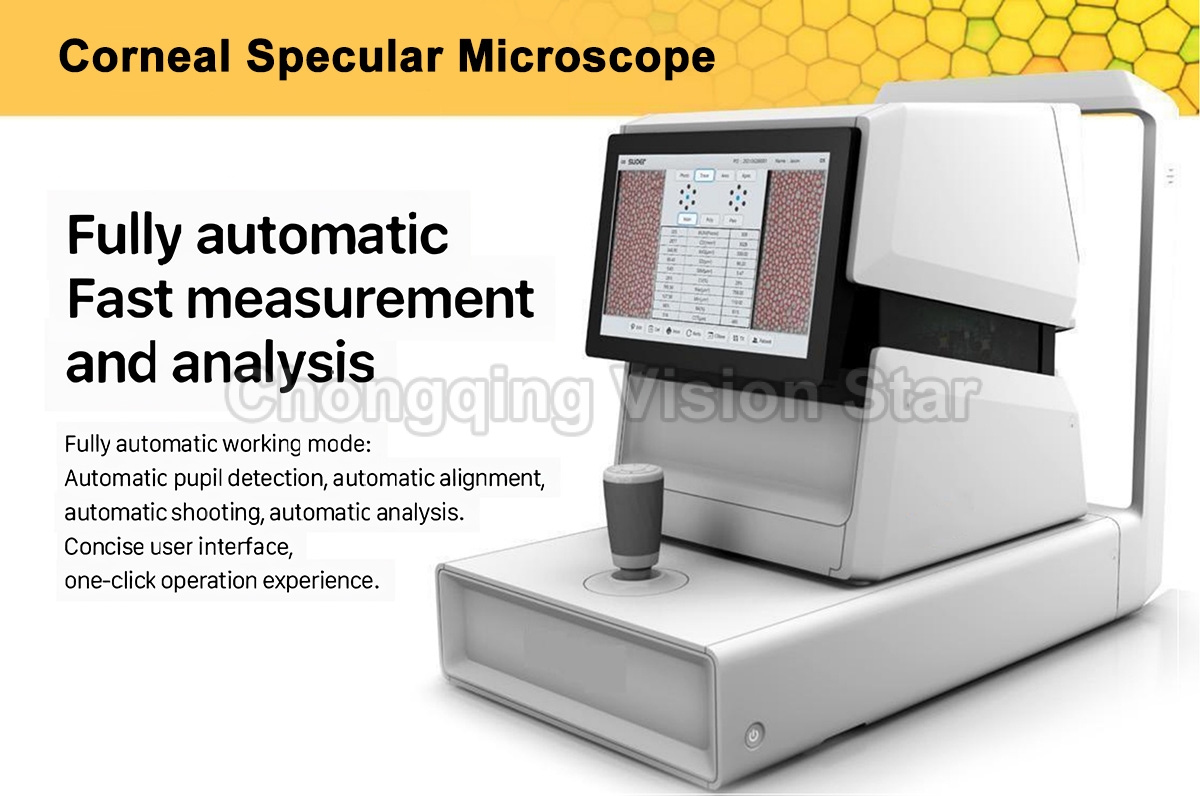

CSW-7000 Specular microscope is a fully automatic ophthalmic machine, used for measuring and analysing endothelial tissue and cells of cornea.
Features:

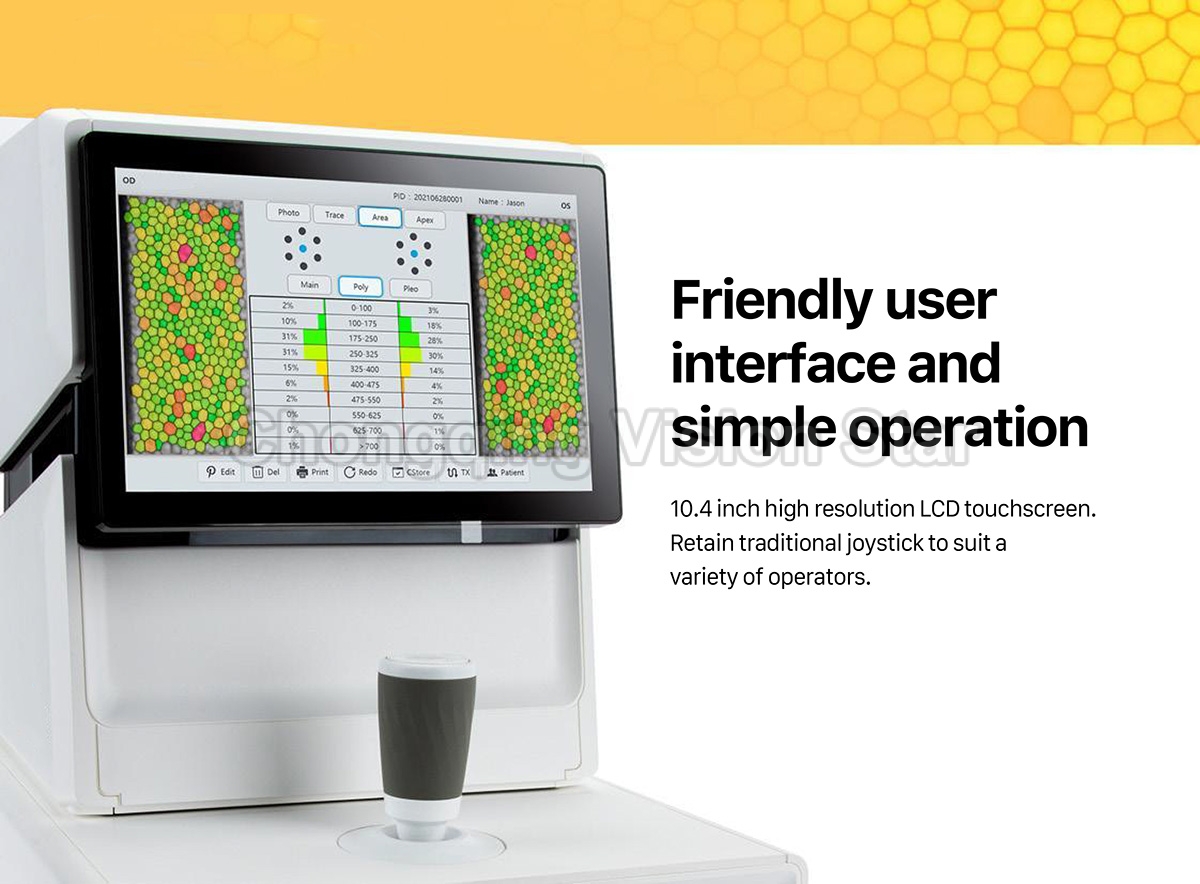

1. 10.4 inch high resolution LCD touch screen. Concise user interface, one-click operation experience.

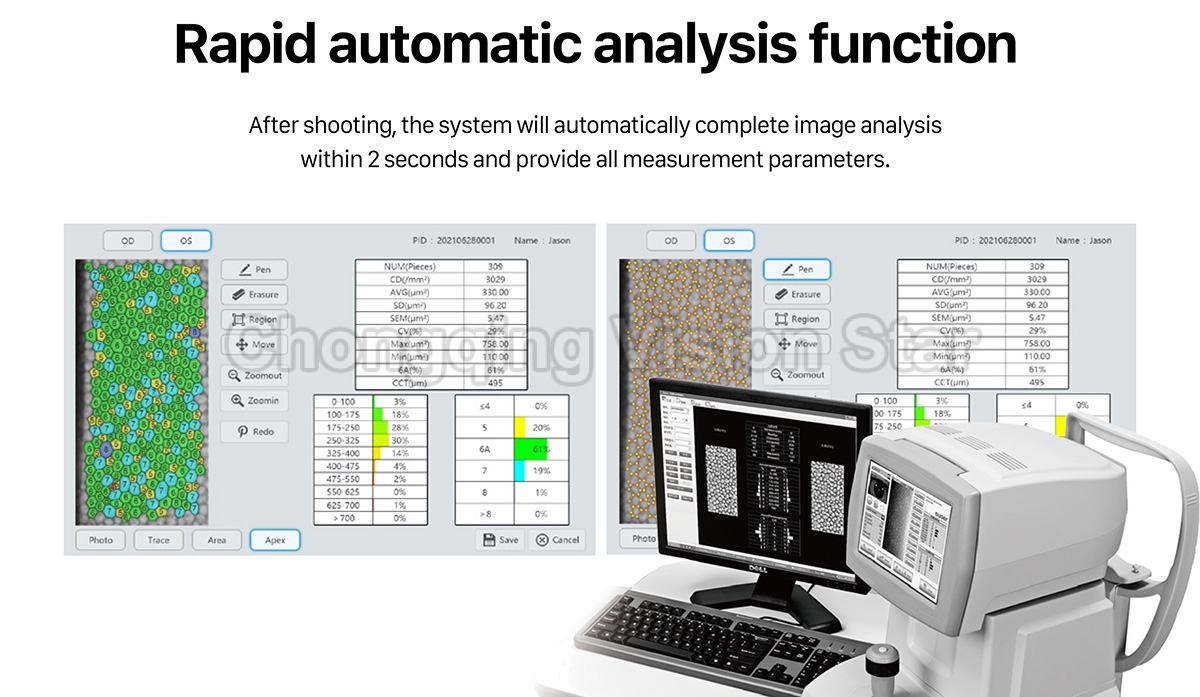

2. Fully automatic working mode: automatic pupil detection, automatic alignment, automatic shooting, automatic analysis.

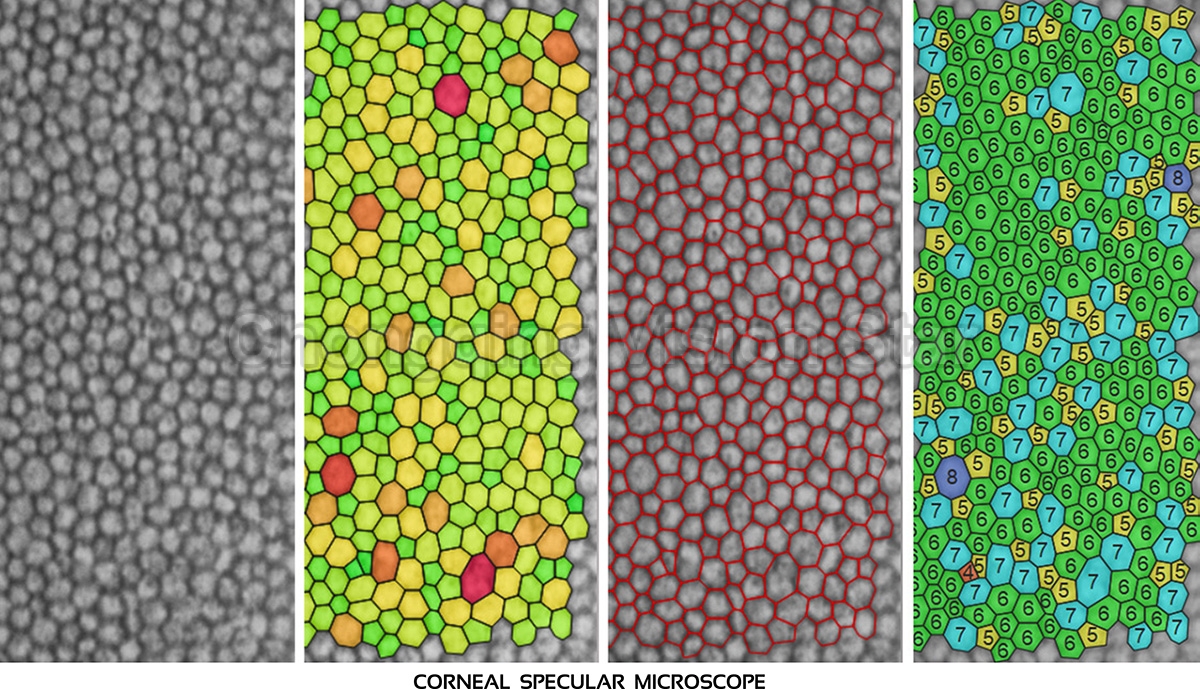

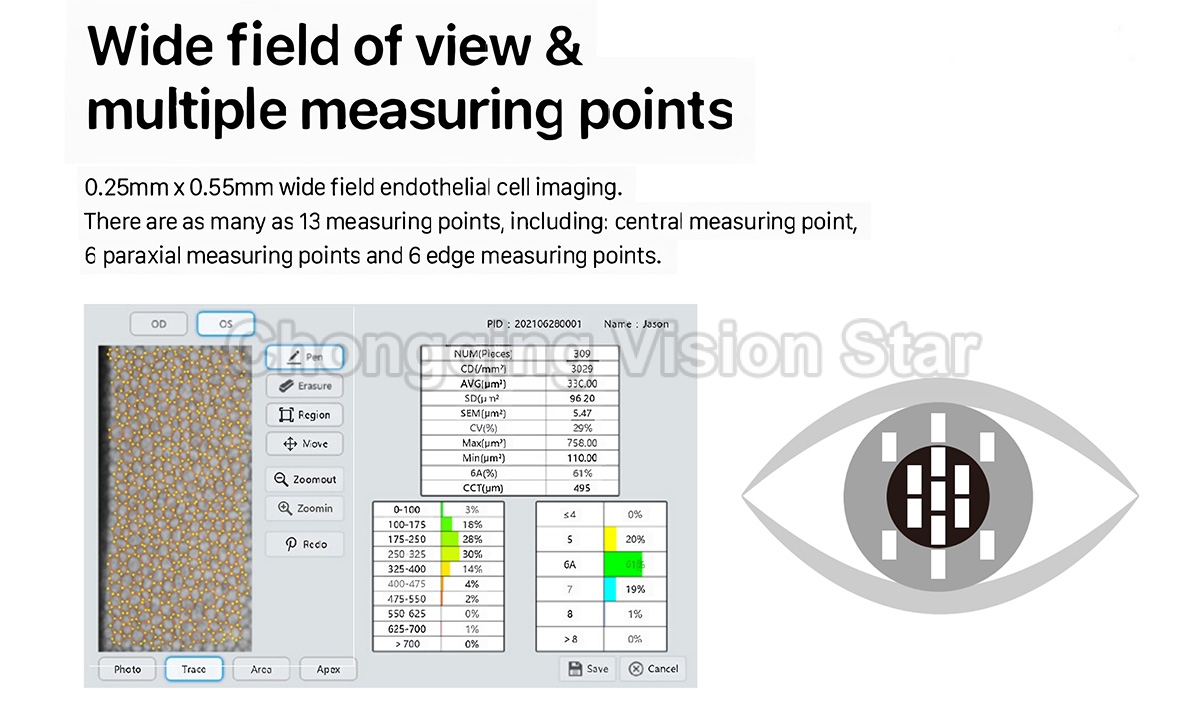

3. 0.25mm x 0.55mm wide field endothelial cell imaging.
4. There are as many as 13 measuring points, including: central measuring point, 6 paraxial measuring points and 6 edge measuring points.

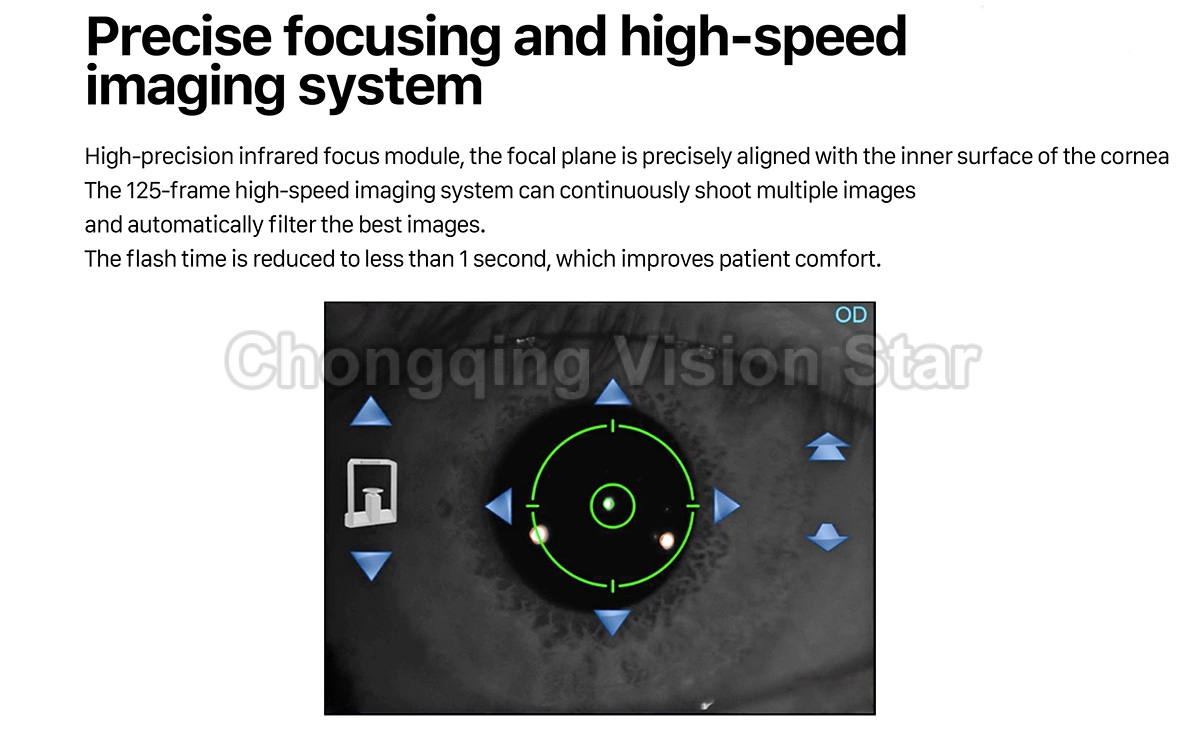

5. High-precision infrared focus module, the focal plane is precisely aligned with the inner surface of the cornea.
6. The 125-frame high-speed imaging system can continuously shoot multiple images and automatically filter the best images.
7. The flash time is reduced to less than 1 second, which improves patient comfort.

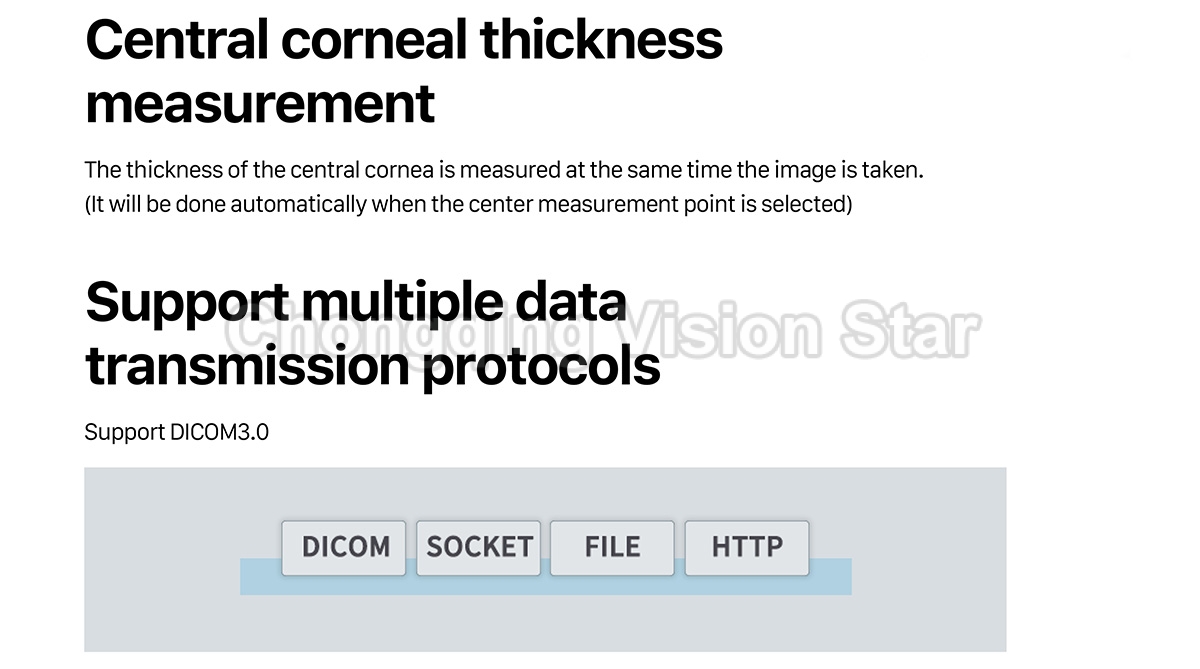

8. The thickness of the central cornea is measured at the same time the image is taken. (It will be done automatically when the center measurement point is selected).
Technical Specifications:
| Capturing method | non-contact |
| Capturing range | 0.25mm x 0.55mm |
| Capturing area | Center and 12 peripheral fixation points |
| Working mode | Full-auto/Semi-auto |
| Cornea thickness measurement range | 400μm ~ 750μm |
| Cornea thickness measurement accuracy | ±10μm(<600μm), ±25μm（>600μm) |

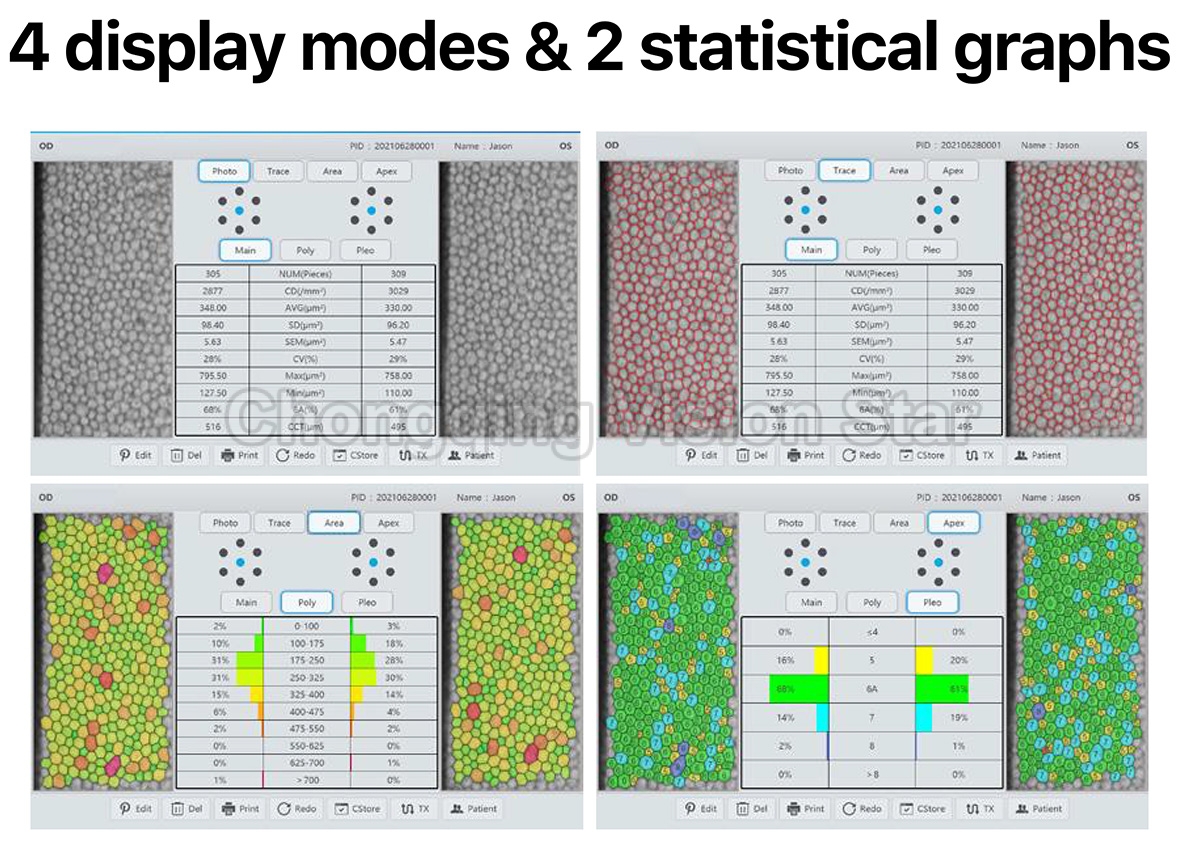

| Analysis parameter | NUM(Number of cells) CD(Cell density) AVG(Average area) SD(Standard deviation of area) CV(Coefficient of Variation) MAX(Maximum area) MIN(Minimum area) 6A(Percentage of hexagonal cells) |
| Histogram Area | Area: Polymegathism(Distribution by areas) Apex: Plemorphism(Distribution by shapes) |
| Display | 10.4 inch colored touchscreen(1080P) |

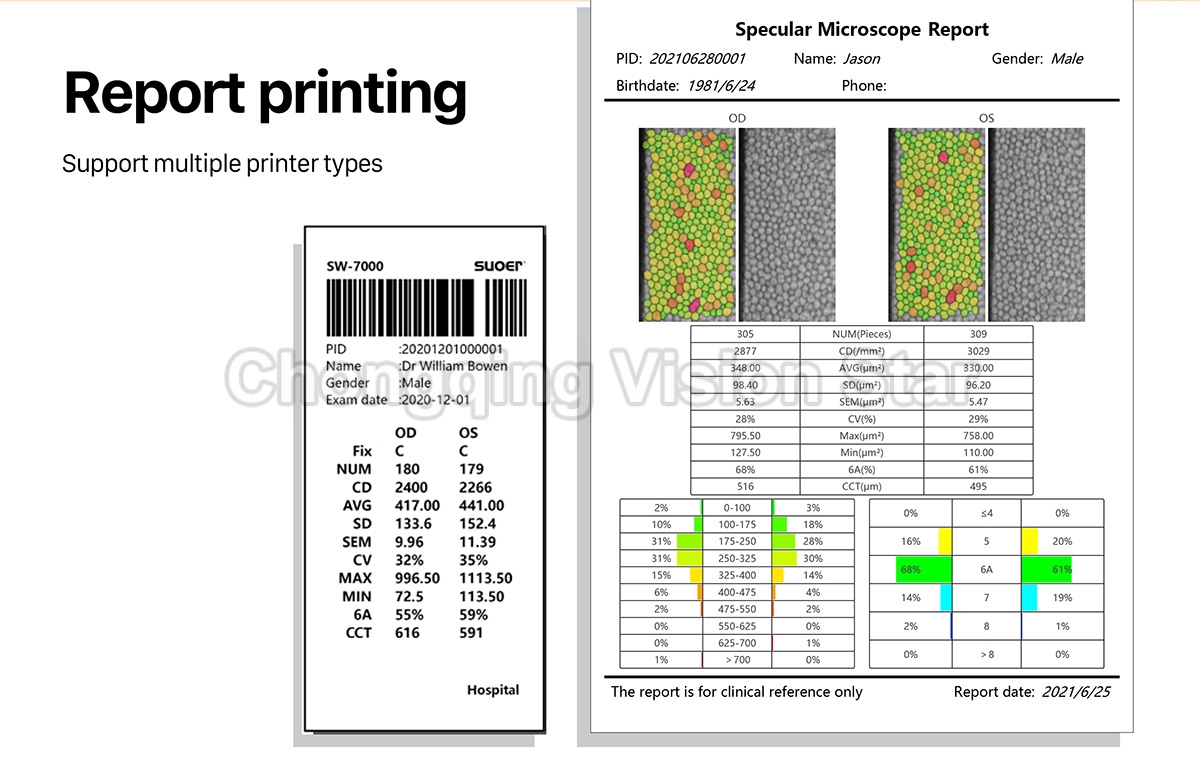

| Printing | Able to connect to most regular printing devices |
| Data output | USB*2, LAN*1, support DICOM 3.0 |
| Dimensions and weight | 315*535*465mm, approx. 23Kg |
