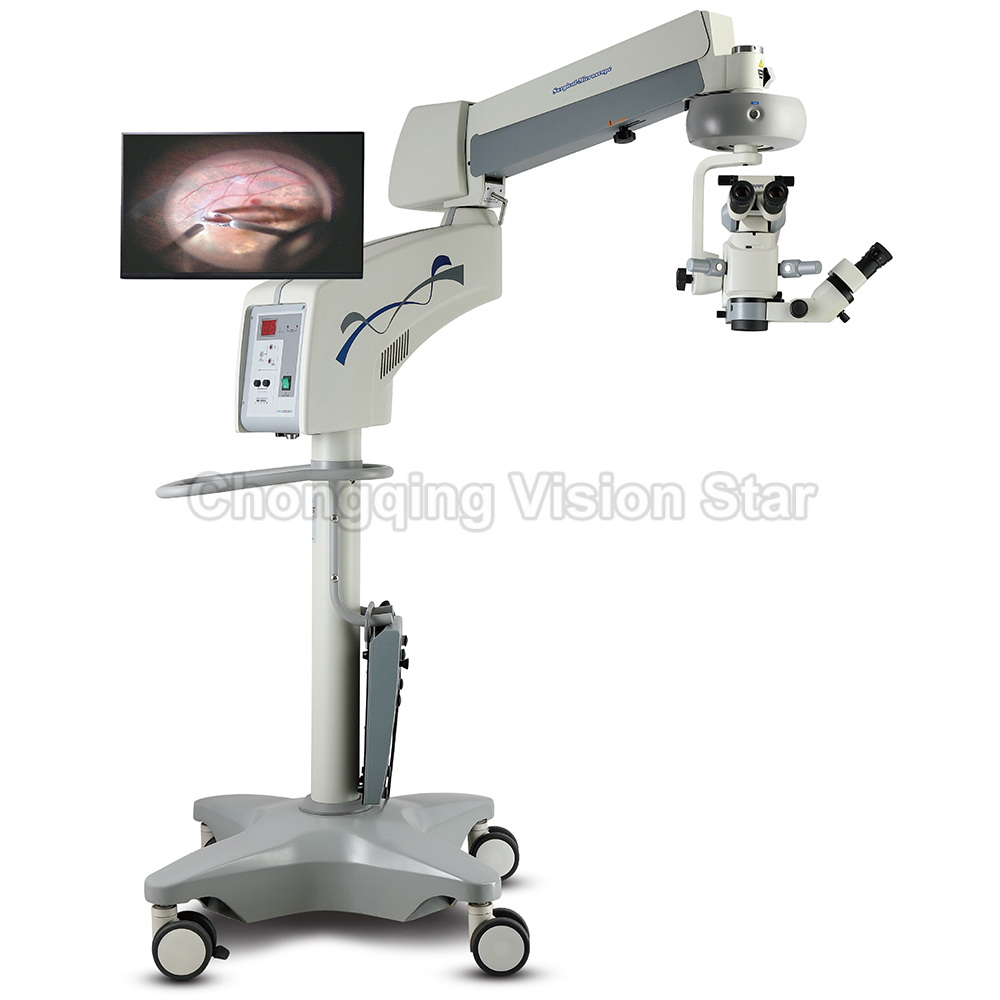

SM-3000L Ophthalmic Operation Microscope

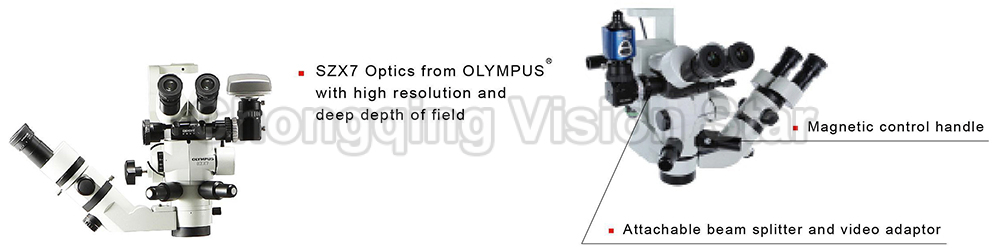

Optics: SZX7
Eyepiece: 10X wide field
Pupil Distance: 50-76mm
X-Y speed: 2.2mm/sec foot control
Magnification: ≥4X-20X continually motorized zoom
SM-3000L Ophthalmic Operation Microscope
Technical Sepecificaitons:
| Microscope | Optics | SZX7 |
| Eyepiece | 10X wide field | |
| Observation Angle | 0°-60° | |
| Pupil Distance | 50-76mm | |
| Diopter Adjustment | ±5D (binocular) | |
| Depth of Field | Manual adjustable | |
| Objective | 60mm apochromatism | |
| X-Y speed | 2.2mm/sec foot control | |
| Magnification | ≥4X-20X continually motorized zoom | |
| Field of View | 8mm-50mm | |
| Working Distance | ≥180mm | |
| Fine Adjustment | ±20mm foot control | |
| Illumination | Type | Aspheric design |
| Light Source | Double light 15V/150W Halogen light | |
| Control mode | 8 level brightness, foot control | |
| Intensity | ≥60,000Lux | |
| Power control | 220V, 50Hz | |
| Retinal protection | yes | |
| Red reflex | Double focus multilayer reflection | |
| Base | Length of Arm Extended | 1260mm |
| Upper and Lower Adjustment Range | ±200mm | |
| Base Size | 720mmx720mm | |
| Foot Switch | 11 functions:X-Y Focus/Motorized focus,and zoom/Brightness adjustment/Light source switch | |
| Assist. Microscope | Type | 4X，6X，10X,Stereo Coaxial Assistant Microscope |
