AL-700 Auto Biometer

AL-700PLUS Trinity Auto Biometer

Features:

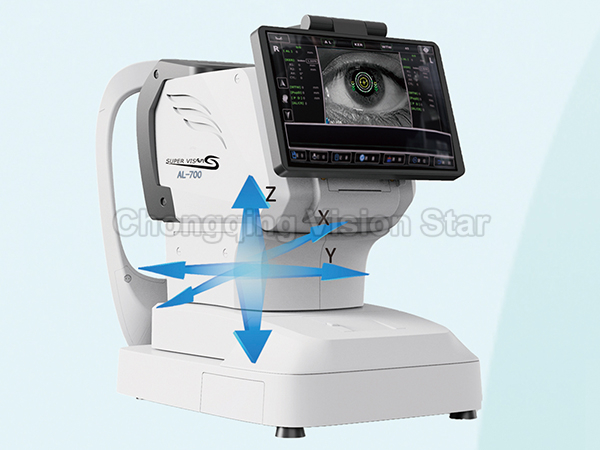

1. 3D large-range binocular automatic tracking,focusing, and measurement
2. Built-in case system
3. Built-in database, can save more than 10,000 customer test records
4. Fast measurement speed: ≤ 0.5s
5. Stable measurement repeatability
6. Support WiFi and Bluetooth data transmission (optional)

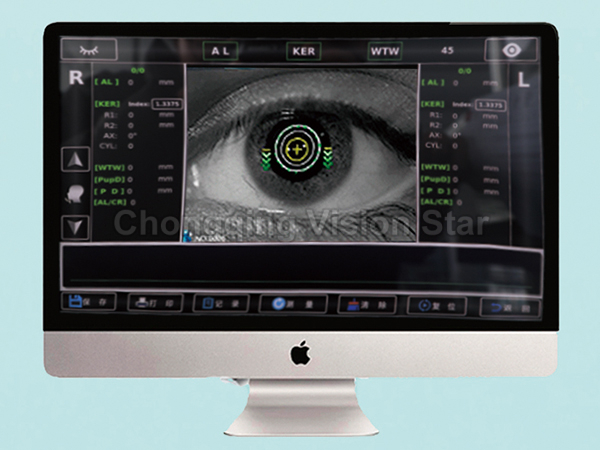

7. Support HDMI external screen (optional)
8. Support A4 printer

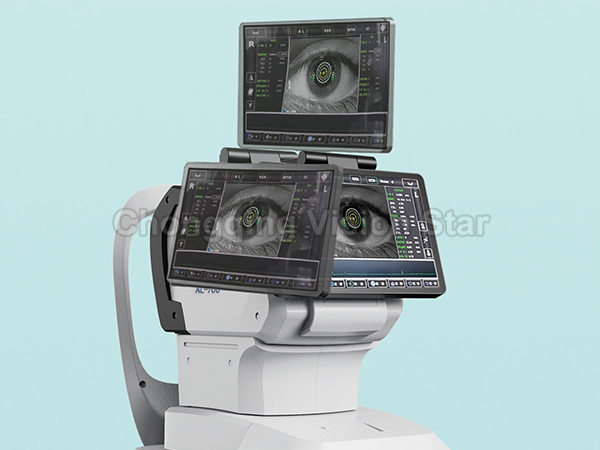

3D large-range binocular automatic tracking,focusing, and measurement	Flip 180° up and down rotates freely left and right

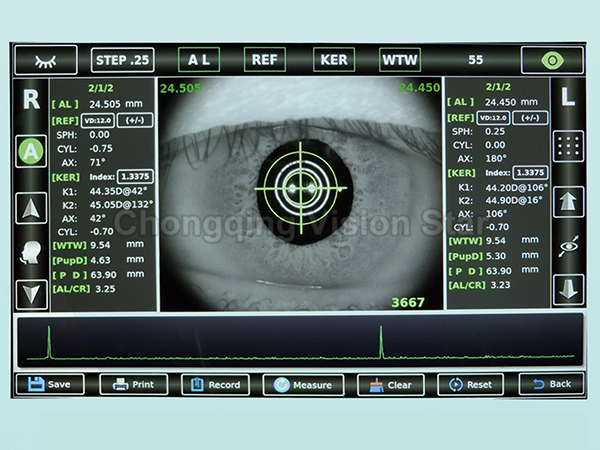

Support WIFI and Bluetooth data transmission (optional)                                    Support HDMI external screen (optional)                                    Support A4 printer	Measurement results are displayed in real time(AL-700PLUS)

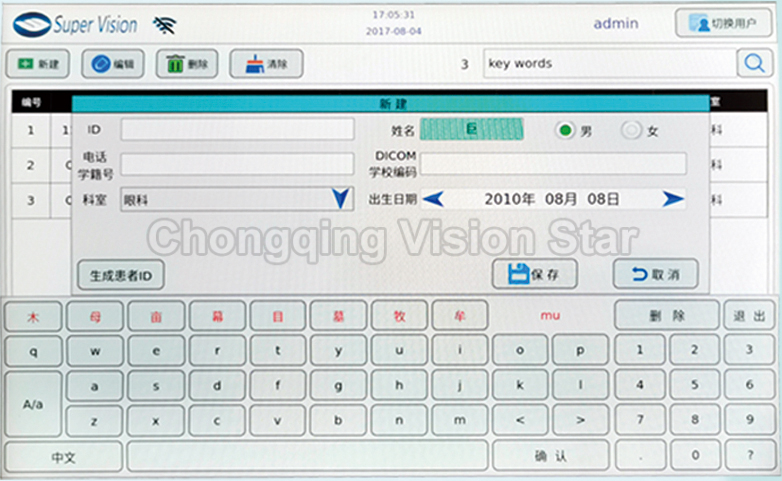

Built-in case system

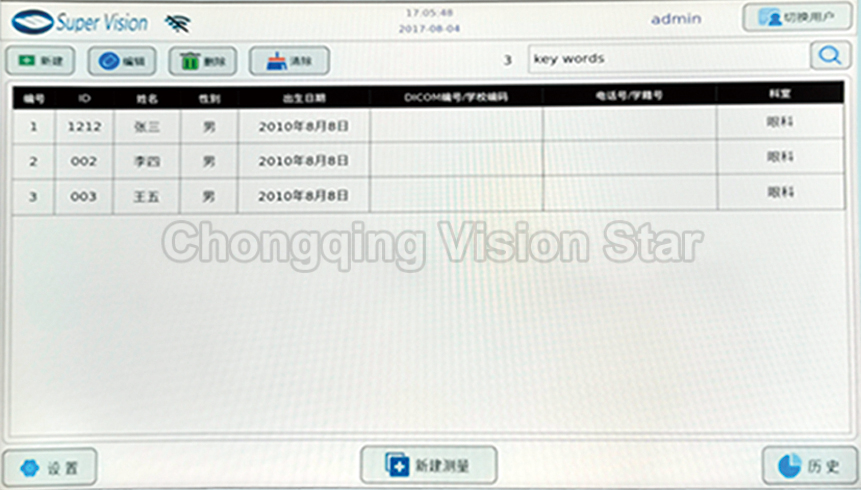

Built-in database, can save more than 10,000 customer test records

AL-700 Auto Biometer

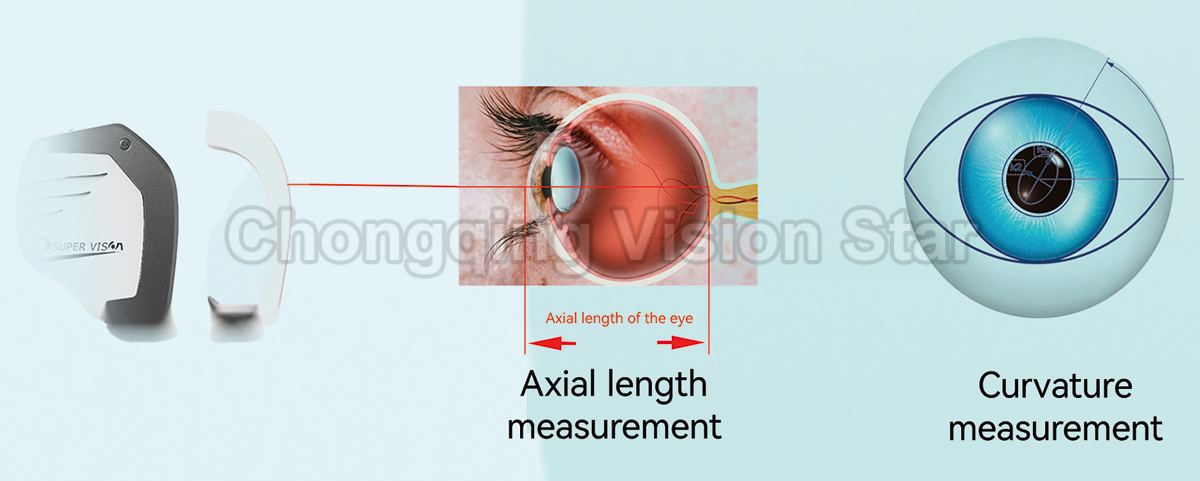

Fully functional

AL-700PLUS Trinity Auto Biometer

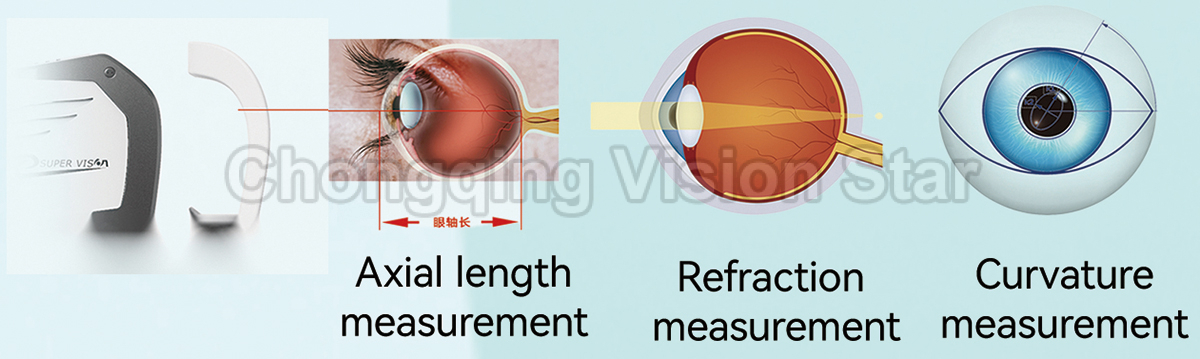

Fully functional(three-in-one)

	AL-700	AL-700PLUS
Sphere power	/	0.01D
Curvature radius	0.01mm	0.01mm
Axial length	0.01mm	0.01mm
Cylinder power	/	0.12D
Cylinder axis	/	1°
Axial length	10-35mm	10-35mm
Sphere power	/	-30D~+25D
Cylinder power(absolute value)	/	0~12D
Clinder axis	/	0° ~180°
Curvature radius	6.5~10.5mm	6.5~10.5mm
Corneal refractive power	32.1D~51.9D	32.1D~51.9D
Corneal diameter	6~14mm	6~14mm
Pupil diameter	2~14mm	2~14mm
Pupillary distance	10~85mm	10~85mm
Axis ratio	1.25~5.38	1.25~5.38
Axial length	≤0.05mm	≤0.05mm
Curvature radius	≤0.02mm	≤0.02mm
Fast measurement speed	0.5s	0.5s
