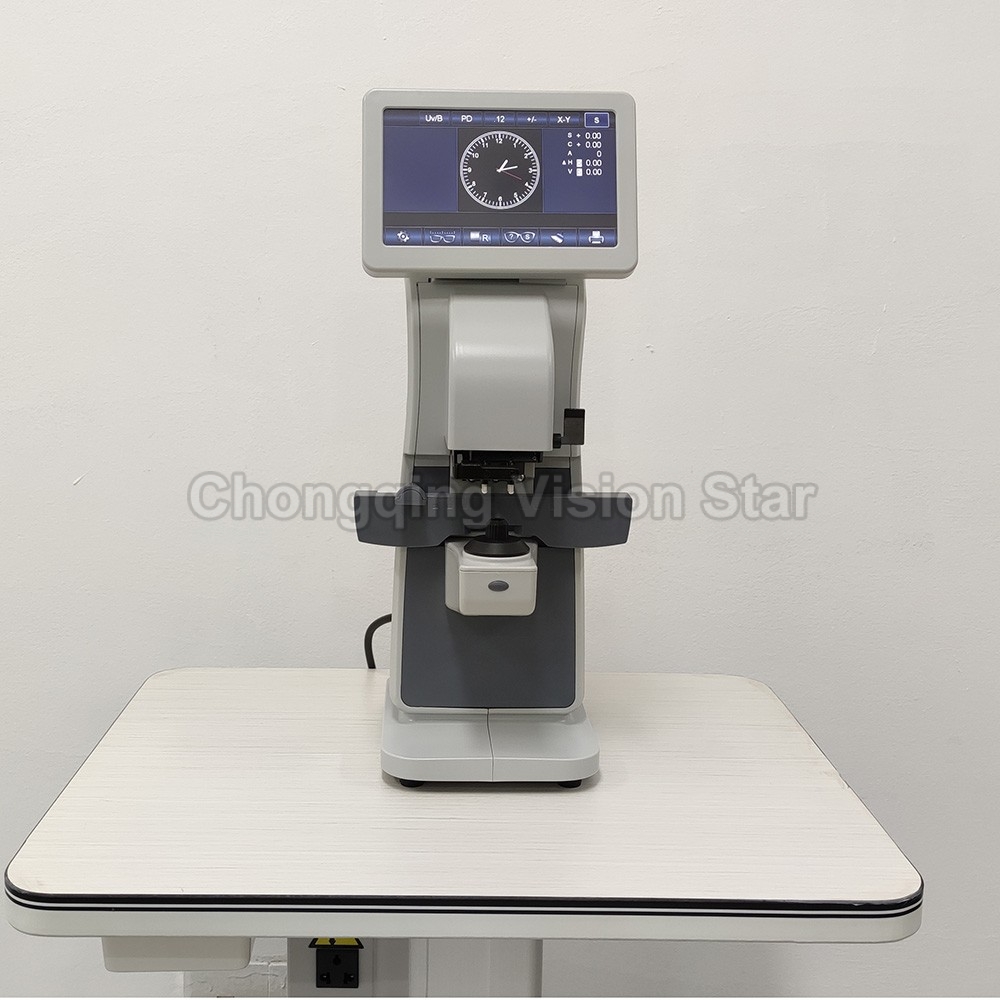

LM-400 Digital Auto Lensmeter
MOQ: 1 Set
LM-400 Auto Lensmeter
Video:
Feature:
* Reversible HD touch LCD display
* High-end technology, precision assembly
* Modern, simple and high-end appearance
* Rapid and automatic recognition of progressive multifocal lenses
* The green LED light source ,does not need ABBE coefficient compensation
* Optimized and upgraded Hartmann multi-point measurement technology
* Pupil distance measurement function
* Ultraviolet/blue light transmittance measurement function
* Contact lens measurement function
* Fine dotting device
* Selective dotting pen
* UV transmittance measurement
* Pupil height measurement of lens frame
* External equipment for data transmission
* It can measure single light, double light, astigmatism, progressive multifocal light and other lenses
 |
 |
 |
 |
More Details:
 |
 |

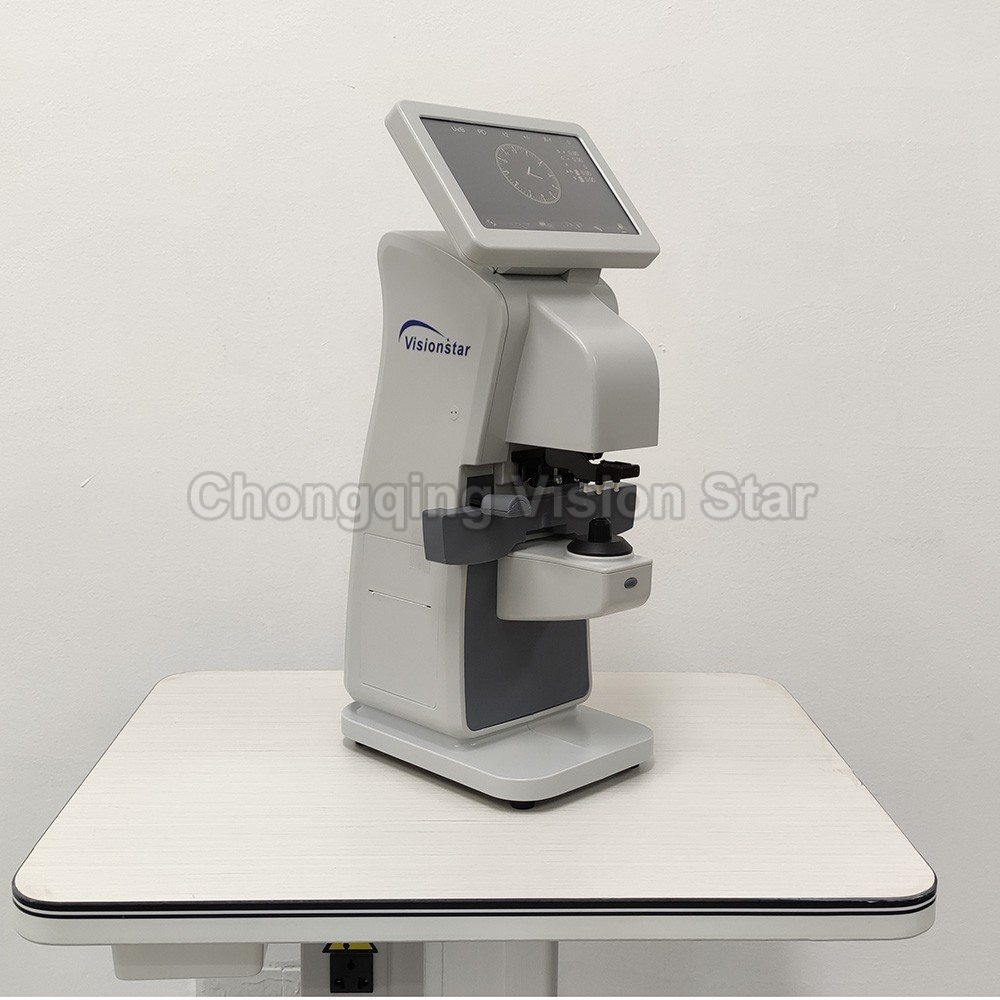

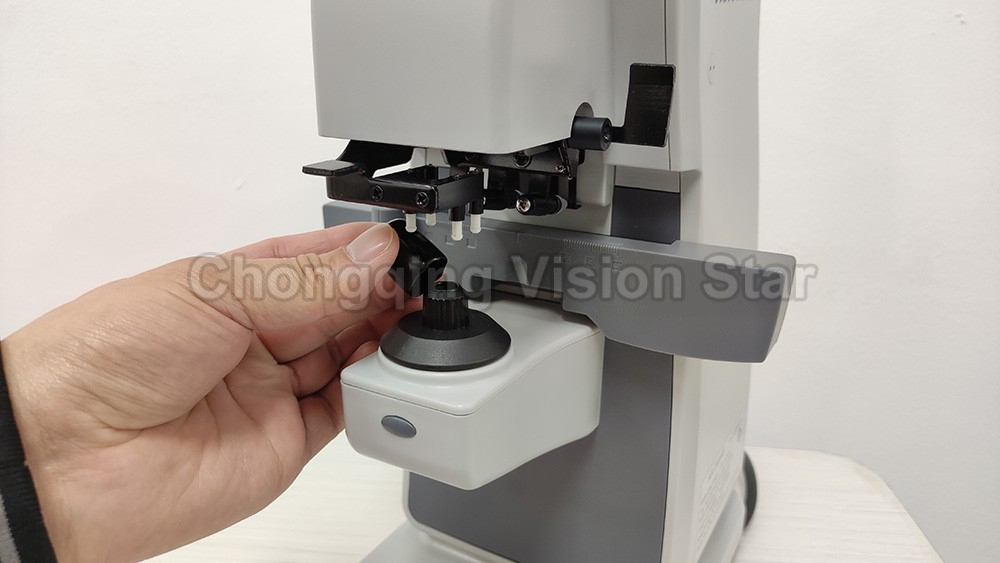

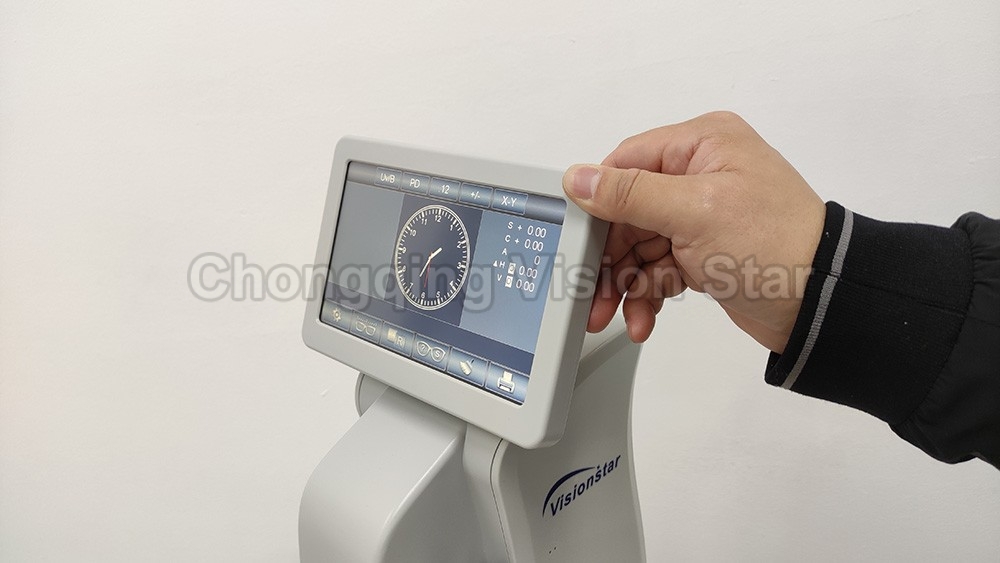

| Tilting LCD Touch Screen | Detachable Lens Support |
 |
 |

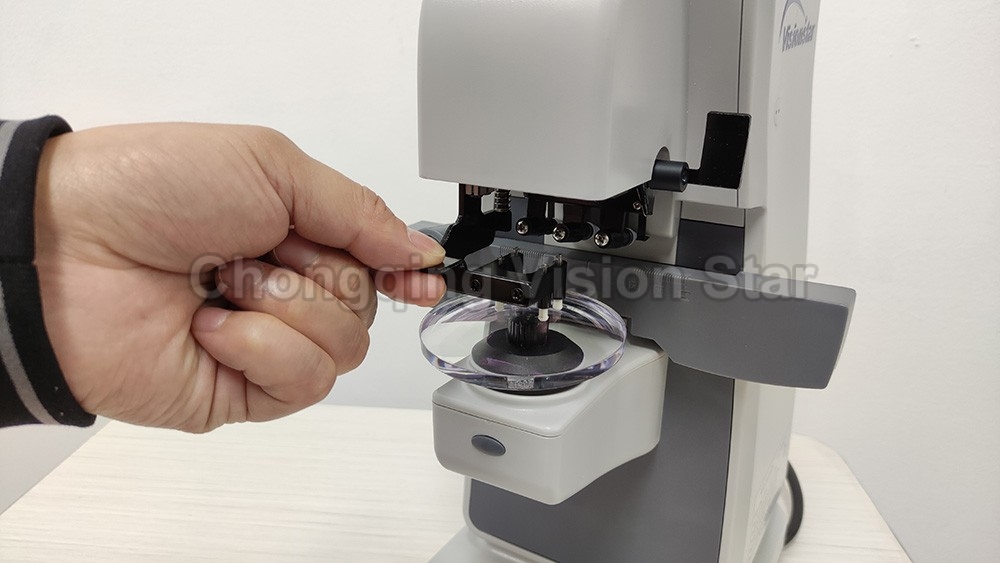

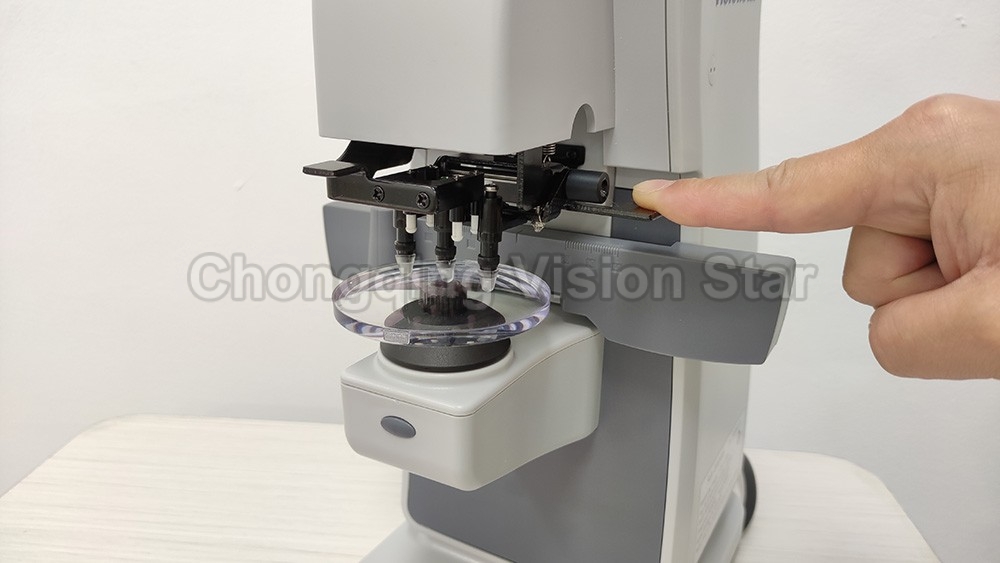

| Lens Pressing Unit | Lens Marking Unit |
 |
 |

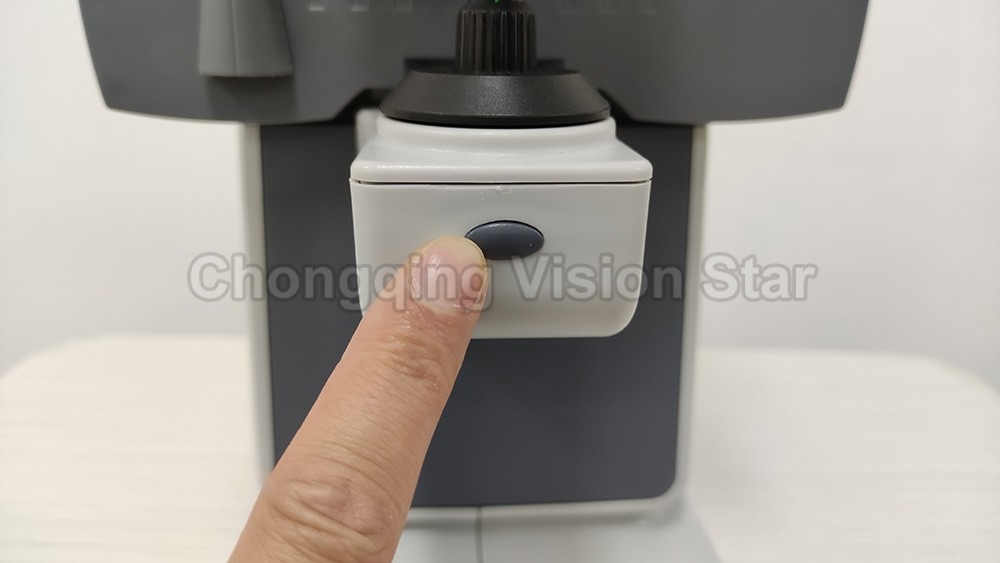

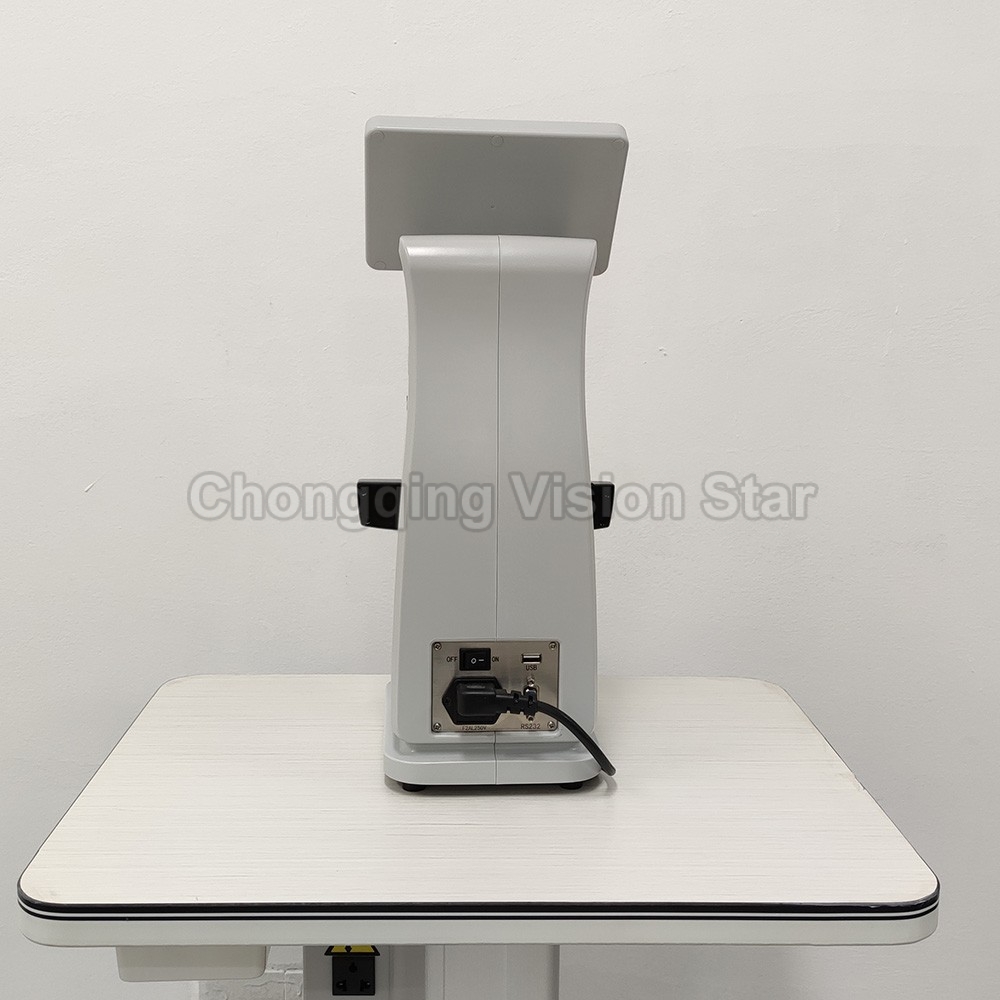

| Manual Read Key | USB and RS-232 Interface |
 |
 |

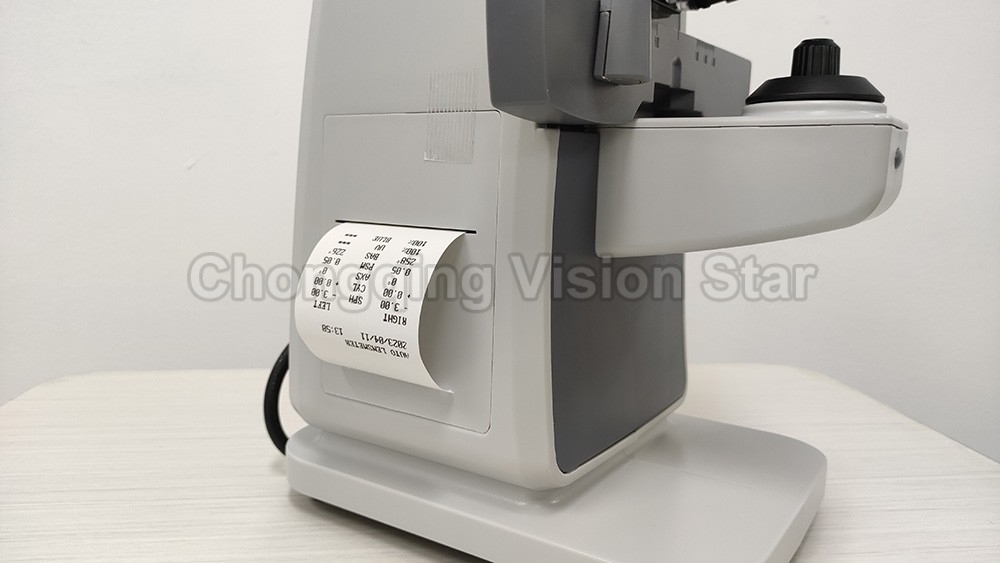

| Built-in Printer | Printed Measurement Results |
|
Technical Data |
|
|
Transmission Ratio of Measurable Lens |
> 10%, when the degree exceeds±10D, the transmittance of the lens is required to be > 20% |
|
Contact Lens |
0 to ±25D, BC 6.00 to 9.00 |
|
Display |
7.0-inch HD touch LCD display |
|
Menu |
User friendly design, simple and easy to operate |
|
Diameter of Lens Used |
20mm-100mm |
|
Power Supply |
AC 100 (+ 10%) – 240 (+ 10%) V50/60Hz 40VA |
|
Maximum Power |
40W |
|
Gross Weight |
6kg |
|
Box Size |
550mm * 300mm * 290mm (length * width * height) |
|
Environment Condition |
|
|
A. Temperature: 5-40℃ (service temperature) – 20-60 ℃(storage/transportation temperature) B. Humidity: 30-85% (no condensation) (use humidity) 10-95% (storage transportation humidity) C. Atmospheric pressure: 700-1060hpa D. Altitude: up to 2000m E. Others: no harmful dust and smoke |
|
|
Optional Accessories |
Printer (built-in thermal printer, paper width: 57mm) |
|
Spherical Mirror |
0 to ±35D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
|
Cylinder Sphere |
0 to ±10D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
|
Cylindrical Mirror Axis Position |
0°- 180°(reading accuracy: 1°） |
|
ADD |
0 to 10 D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
|
Prism |
0 to 15△ (0.01△ ) |
|
Reading Resolution |
0.01D/ 0.06D/ 0.12D/ 0.25D |
With more than 20 years experience in ophthalmology, Chongqing Vision Star now has become a professional manufacturer and supplier for ophthalmic and optometry equipment. Our main products include slit lamp, fundus camera, tonometer, OCT machine, AB scan, vision field analyzer, etc. These products are CE and FDA approved. With high technology and artifical intelligence, our ophthalmology diagnostic machines show clear image and accurate results of eyes, helping doctors to provide treatment solution for the patient. The products have been exported to more than 100 countries, and widely praised among our customers. Our company have expert sales team and technician team, provide 1-3 years quality warranty, technical support, and life time after-sales service. We are committed to building a good brand, providing sincere service, and establishing long-term cooperative relationship with our customers. We are glad to have video call with you, introducing our product details to you so that you can know our company and our products better. Please contact us if you are interested in LM-400 Digital Auto Lensmeter.
