VT-700 Auto Phoropter

Model: VT-700
Quantity:

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

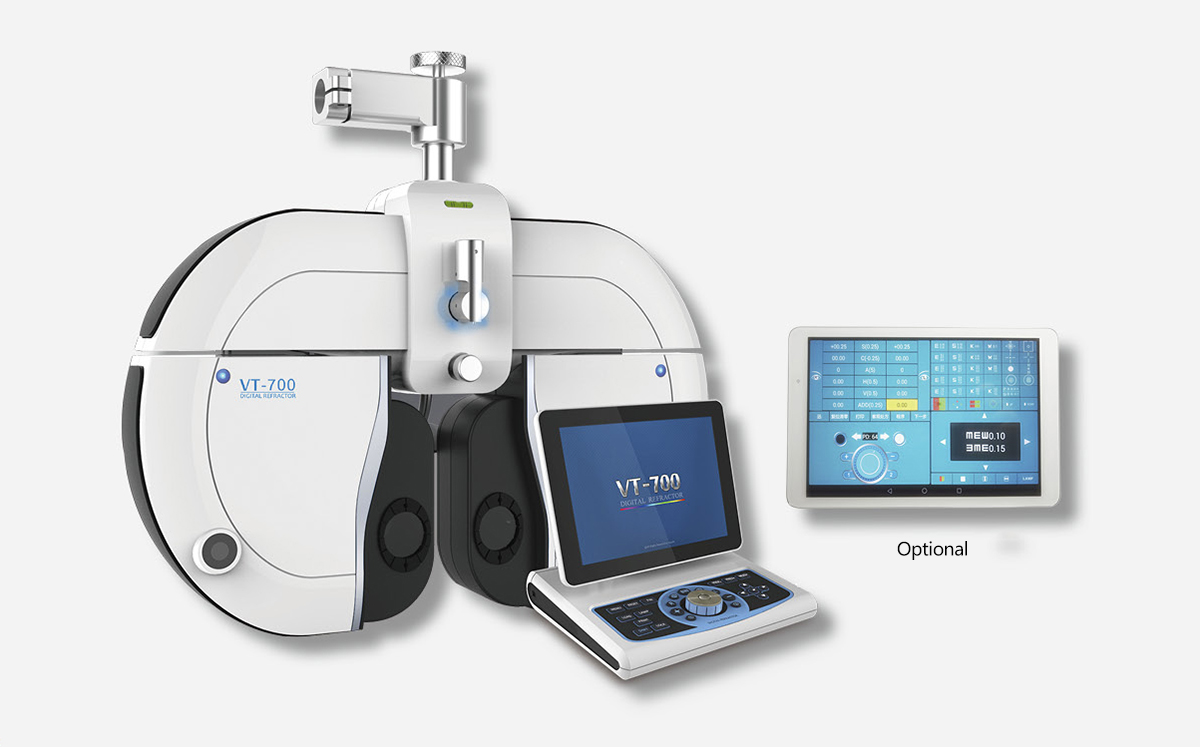

VT-700 Auto Phoropter

Video:

Features:
1.The 9.7 inch touch screen
2.Easy to update the software
3.The 180°rotating screen provides the direct communication with customers
4.Various near visual and facilitating icons
5.Abundant online functions
6.Elegant With exquisite workmanship
7.True Color touch screen

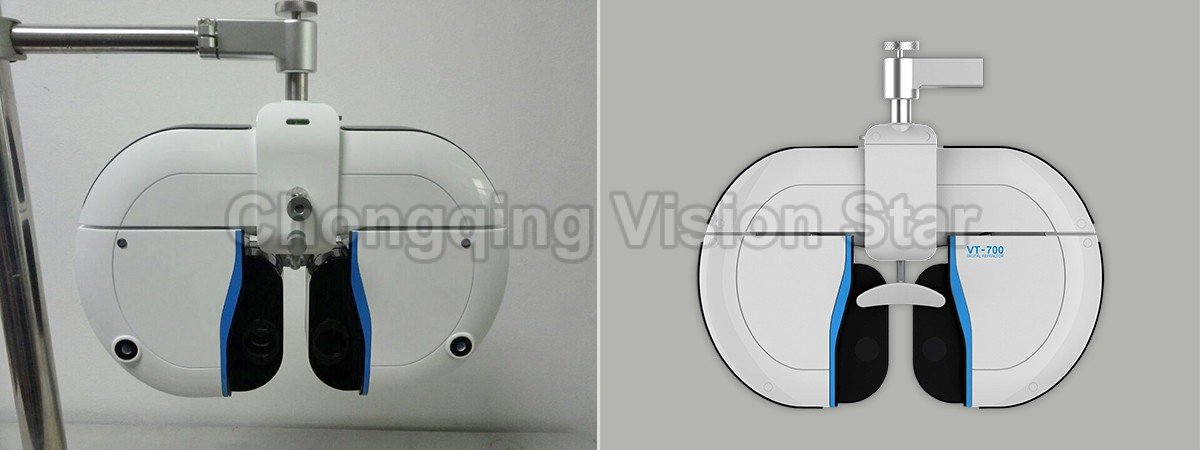

VT-700 Auto Phoropter

VT-700 Auto Phoropter

VT-700 Auto Phoropter

Specifications:

Sphere power



Range

16.75 to -19.00 diopters

Step

0.25 diopters



Cylinder power



Range

0.00 to -6.00 diopters(0.00 to -8.00 diopters with additional lens of -2.00 diopters)

Step

0.25 diopters

Cylinder axis

0 to 180°, 5°step

Cross cylinder

±0.25 diopters

Rotary prisms

0 to 20, 1 step











Auxiliary lens dial



(O)-Open aperture (two positions)

(R)-Retinoscopic lens, 1.50D

(P)-Polarizing lens 45-left eye, 135-right eye

(WMV) or (RMV)-Maddox rod, vertical white-left eye red-right

(WMV) or (RMV)-Maddox rod, horizontal white-left eye red-right

(RL)-Red lens

( .12)- 0.12D sphere

(PH)-Pin hole

(10 L) or (6 U)-10 base-in-left eye

6 base-up-right eye

(Dissociating prisms)(±.50)-±0.50 fixed cross cylinder

(OC)-Occluder

PD adjustment

48~75MM, 1MM steps

Standard accessory lenses

wo-.12D and -2.00 cylinder lenses, two plano lenses for sealing front opening

Standard accessories

1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses

Dimensions

31.8*29.3*9.6(CM)

Net weight

about 4.5KGS
