ML-400 Manual Phoropter

Model: ML-400

ML-400 Manual Phoropter is designed with classic appearance and professional technology. The ML-400 phoropter features precise measurement, and it is easy and convenient ot operate.


Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

ML-400 Manual Phoropter


ML-400 Manual Phoropter Features:
1.Classic appearance, professional technology, precise measurement, easy and convenient operating, and best price value
2.All the lens are anti-reflection coated.
3.All Cross-Cylinder lens are Manus lens
4.New leveling mechanism
5.Fingertip adjustment for sphere power control
6.Unique new convergence system mechanism
7.Wide range of auxiliary lens combinations
8.Precision machined to finest tolerances
9.This is suitable for eyesight examination in spectacles shops, department of ophthalmology in hospitals, schools

ML-400 Manual Phoropter Pictures:

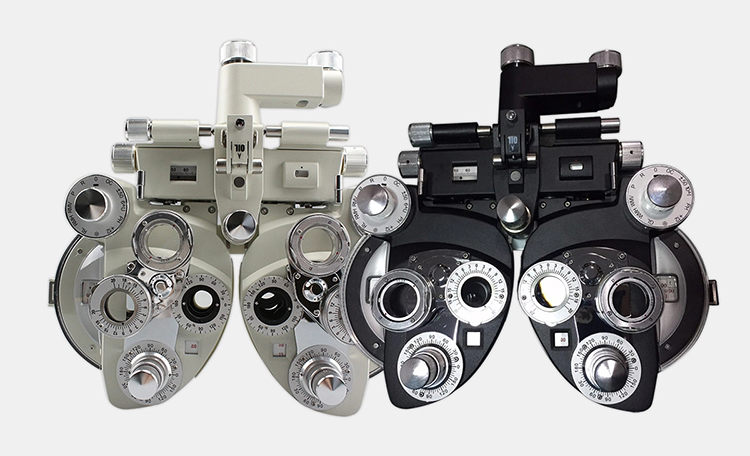

ML-400 Manual Phoropter

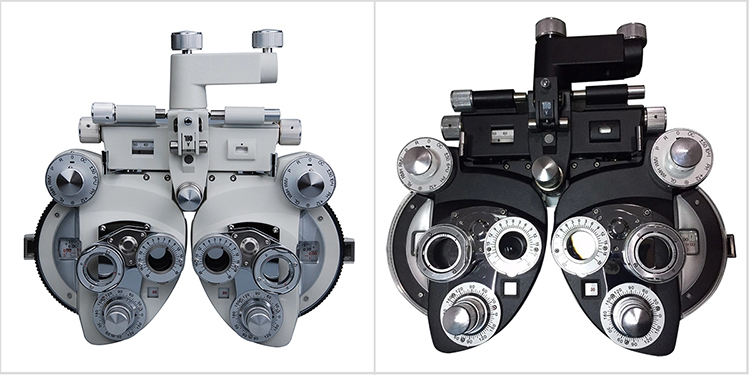

ML-400 Manual Phoropter

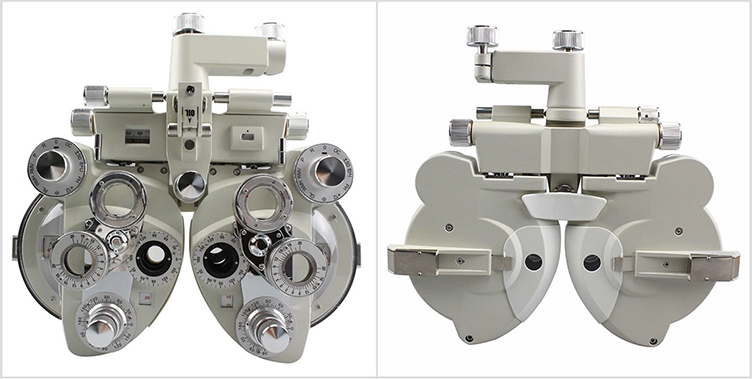

ML-400 Manual Phoropter

ML-400 Manual Phoropter Specifications:

Sphere Power Range 16.75 to -19.00 diopters
Step 0.25 diopters
Cylinder Power Range 0.00 to -6.00 diopters(0.00 to -8.00 diopters with additional lens of -2.00 diopters)
Step 0.25 diopters
Cylinder Axis 0 to 180°, 5°step
Cross Cylinder ±0.25 diopters
Rotary Prisms 0 to 20, 1 step
Auxiliary Lens Dial (O)-Open aperture (two positions)
(R)-Retinoscopic lens, 1.50D
(P)-Polarizing lens 45-left eye, 135-right eye
(WMV) or (RMV)-Maddox rod, vertical white-left eye red-right
(WMV) or (RMV)-Maddox rod, horizontal white-left eye red-right
(RL)-Red lens
( .12)- 0.12D sphere
(PH)-Pin hole
(10 L) or (6 U)-10 base-in-left eye
6 base-up-right eye
(Dissociating prisms)(±.50)-±0.50 fixed cross cylinder
PD Adjustment 48~75MM, 1MM steps
Standard Accessory Lenses wo-.12D and -2.00 cylinder lenses, two plano lenses for sealing front opening
Standard Accessories 1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses
Dimensions 400*350*160MM
Net Weight 4.38 KGS
