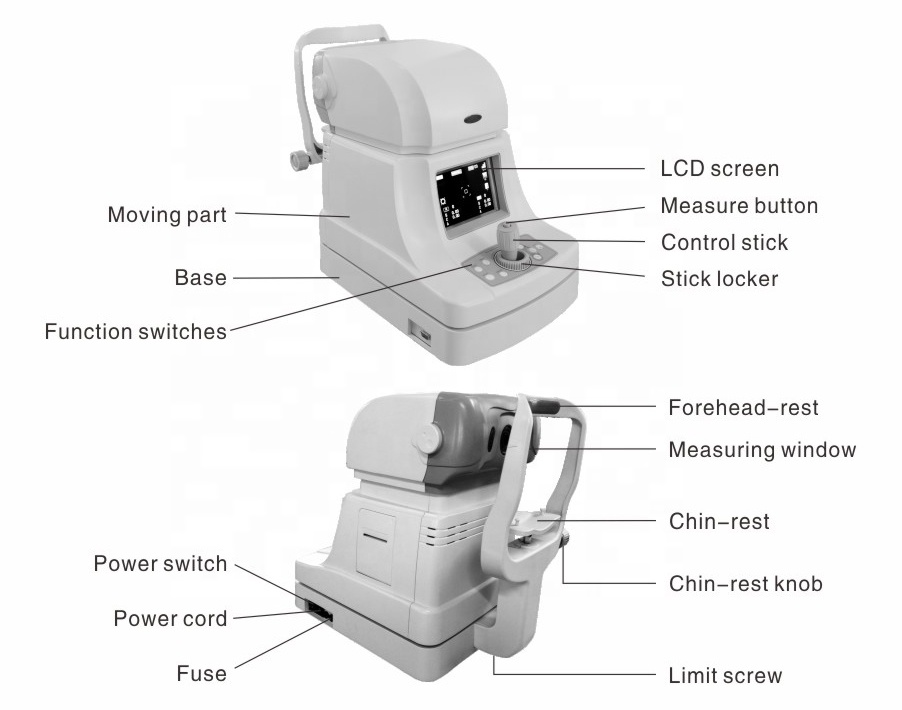

FA-6100 Optometry Auto Refractometer FA-6100K Auto Ref/Keratometer

Model: FA-6100/FA-6100K

Sphere: -20 – 20D (VD=12)  (0.12/0.25D Step)

Cylinder: -8D – 8D ( 0.12/0.25D step)

Axis: 0~180°(1° Step)

Pupil Distance: 45-88mm (1mm step)

Vertex Distance: 0mm, 12mm,13.75mm

Quantity:

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

FA-6100 Auto Refractometer ; FA-6100K Auto Ref/Keratometer

Features:
1.Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to-view screen.
2.AUTO PD measurement: The PD will be automatically calculated after measurement.
3.Easy to operate, one-hand control: All operations, including UPDown, RightLeft, ForwardBackward and Start can be easily controlled with one hand through the control stick.
4.Faster and more accurate measurement.
5.More broad measurement range of Min.pupil size toφ2.0mm.
6.Auto I manual focus function.
7.Convenient user menu setting.
8.Keratometry and refractometry mode select.

FA-6100 Auto Refractometer ; FA-6100K Auto Ref/Keratometer

FA-6100 Auto Refractometer ; FA-6100K Auto Ref/Keratometer



Refractometer

Vertex distance

0mm, 12mm,13.75mm

Spherical

-20 – 20D (VD=12)  0.12/0.25D Step

Cylinder

-8 – 8D    0.12/0.25D step

Axis

0~180° 1°Step

Cylinder form

-, ,

Pupil distance

45-88mm, 1mm step

Min. pupil size

2.0mm

Keratometry

Radius of curvature

5.0-10mm (increment:0.01mm)

Corneal Power

33.75-67.50D (when corner equivalent refractive index is 1.337)



Increment selectable from 0.12,0.25m-1

Corneal astigmatism

0.00-8.00m-1 (Increment selectable from 0.12,0.25m-1 )

Axis

1~180°(increment:1°)

Corneal diameter

2.0 -14mm (increment:0.1mm)

Others

Chart

Auto fog

Memory of data

10 meature value for each right and left eye

Display

5.6″LCD/TFT

Print

Thermal printer

Power supply

100 – 240V 50/60HZ

Dimension

FA-6100B:490mm•280mm•470mm,FA-6100:469mm•308mm•522mm FA-6000A&FA-6100A:280mm*492mm•462mm

Weight

15.5kg
