KR-9200 Auto Refractometer

KR-9200 Auto Refractometer is one of the most recommended Optical Equipment from our company. KR-9200 is a devoloped version of RM-9200 Auto Refractometer and it has the same features as RM-9200, while it has corneal curvature and diopter measurement. KR-9200 Auto Refractometer is also designed with ARM processor, fast thermal printer, and LCD color screen.

Categories: ,

Model: KR-9200

Send Enquiry Email Us

KR-9200 Auto Refractometer

More fashion model, more intelligent control;
Use the ARM processor and the latest domestic image processing, the system is fast and image is clear.
Japan mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment, more precise measurements.
Light rack with integral casting, CNC machining, measuring system is more stable, good consistency.

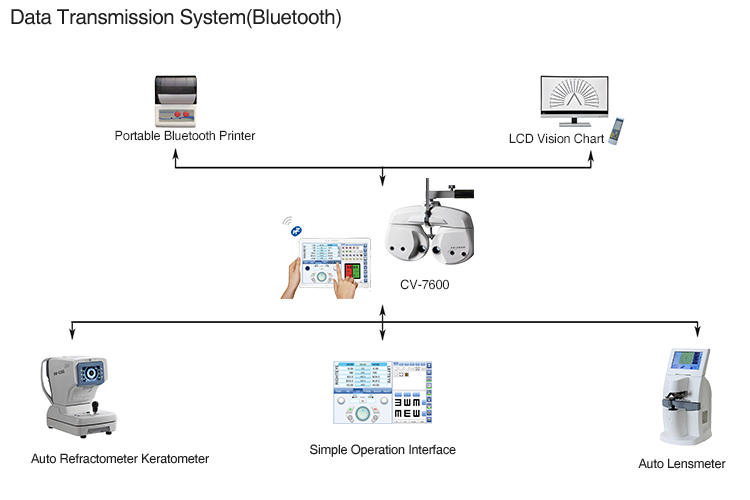

Data transmission with computerized vision tester, improved efficiency of online.
Motorized chinrest, automatic tracing focus (Y-AXIS direction)
Auto detachment printer
Auto tracking optical system
5.7 inches tillable color LCD
Date transmission with computerized vision tester, improved efficiency of online
With Corneal curvature and diopter measurement function

KR-9200 Auto Refractometer Specifications:

Refractive measurement Vertex Distance 0,12,13.75,15mm
Sphere -20~+20D (0.12/0.25D step)
Cylinder 0.00~+-10.00D (0.12/0.25D step)
Axis 1D-180D (1D step)
Pupil Distance 30~85mm
Min. Pupil diameter measurable 2.0mm
Target Automatic fogging target
Corneal curvature measurement Radius of curvature 5~10mm (0.01mm step)
Corneal Refraction 30.00~67.00D (0.12/0.25D step)
Corneal Astigmatism 0.00~-15.00D (0.12/0.25D step)
Angle of Cornea 1-180D (1D step)
Corneal diameter 2.0~12.00mm
Hardware specification Monitor 5.7 inch Color LCD
Printer Fast thermal printer
Power Saving Function OFF, 5/15 mins (Selectable)
Power supply AC 110~240V, 50/60HZ, 50W
Dimensions/weight 288 (W) * 500(D)*480 (H)mm/ 14.5kg

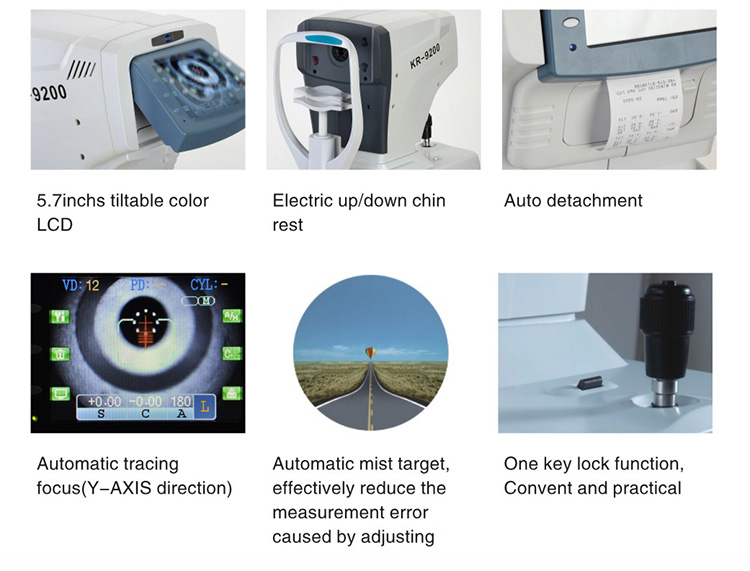

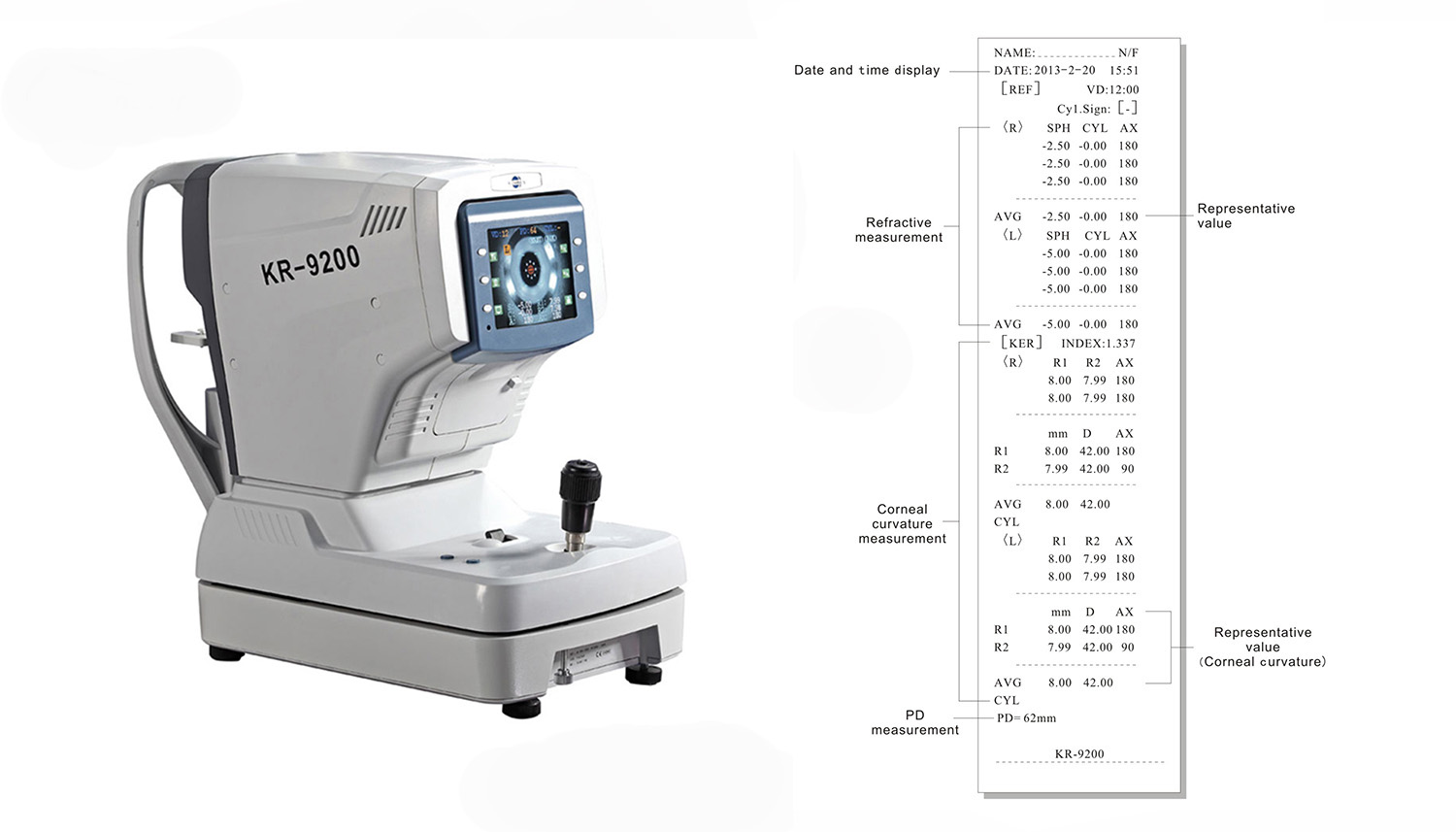

KR-9200 Auto Refractometer Pictures:

KR-9200 Auto Refractometer KR-9200 Auto Refractometer 2


5.7 inch Color LCD


Fast thermal printer

Power supply

AC 110~240V, 50/60HZ, 50W


288 (W) * 500(D)*480 (H)mm
