XTS-4B Multifunctional Operation Microscope

Model: XTS-4B

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

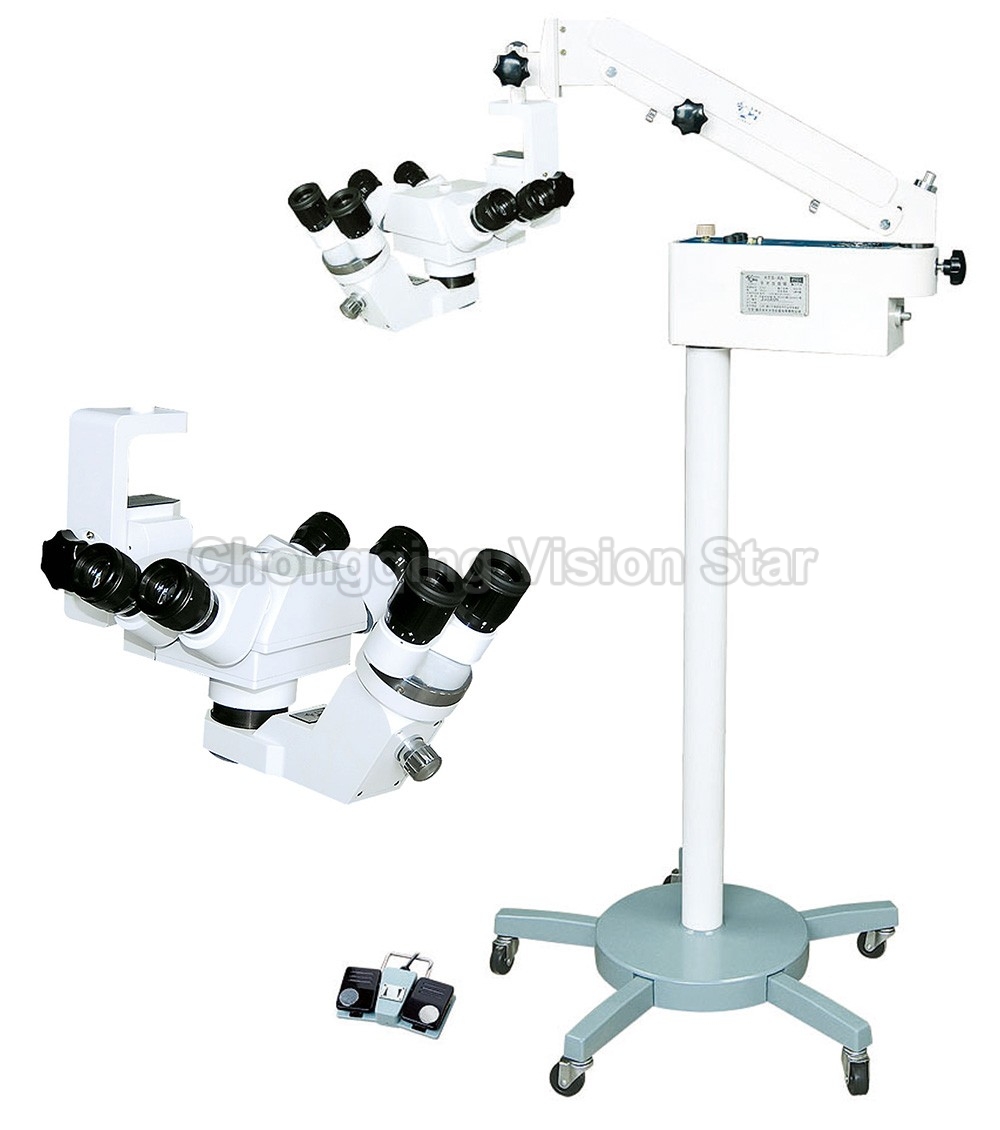

XTS-4B Operation Microscope


1. It can be used in ophthalmic, hand surgery, plastic surgery, gynaecology and so on microsurgery.

2. Three people six eyes:The main microscope:double binocular with 180° position, the same light route,the same illumination and the same position, the vice microscope and the main microscope at a 90° position.

XTS-4B Operation Microscope

Technical Specification:

Foot control motorized fine-tune range 40 mm
Eyepiece visual field >27.5 mm
Working distance 200 mm, 250 mm
Magnification:The main microscope 10x, 8x
The assistant microscope 4x
Adjustable range Ot eye-distance 55 mm – 75 mm
Cold light source, imported Halogen bulb 80V, 50W
The maximum illuminance 30000LX
The main mirror wide angle eyepiece 12.5x
The vice mirror eyepiece 12.5x, with the same light route of the main mirror
Balanced frame up-down range >250 mm
The maximum gyration radius of cross arm 800 mm
