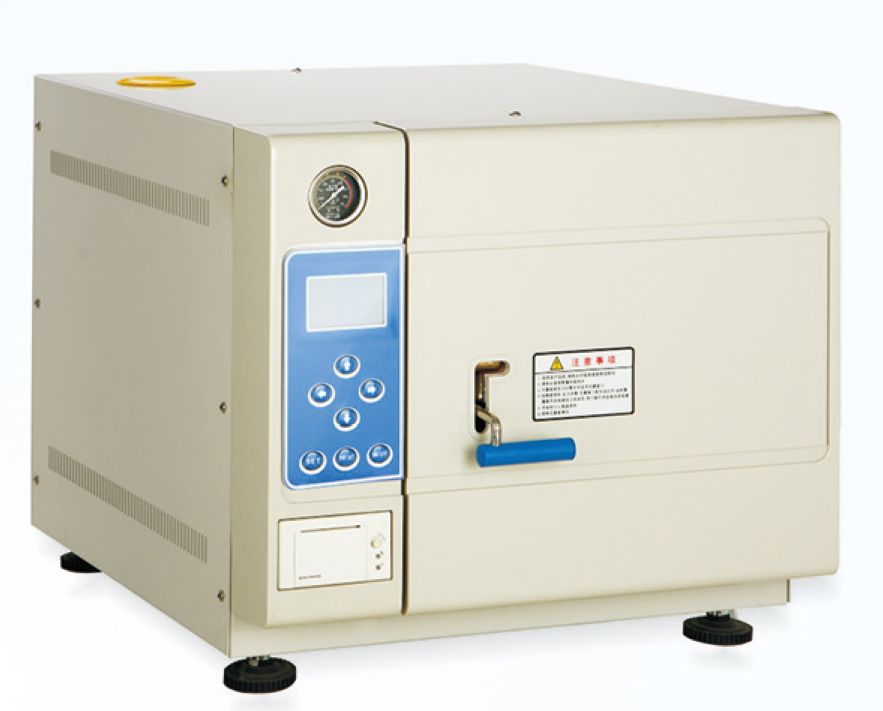

TM-XD Table Top Steam Sterilizer

Model: TM-XD
Quantity:

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

TM-XD Table Top Steam Sterilizer

Video:

Features:
1.The sterilizing procedure is automatically controlled, it is not necessary to be supervised, and used conveniently.
2.At least 3 or more times pulse-vacuum exhausting, which is applied to wrapped or unwrapped objects,hollow equipment.
3.Drying function.
4.With inner printer, which record the for the full procedure of the sterilization.
5.With Bowie&Dick testing function, which is for the steam penetrating testing.
6.Self-testing malfunction, easy to maintain.
7.Safety functions:
Safety locking:
the steam cannot enter the chamber and the unit will alarm when the door is not closed tightly,
and the door can not the open when the inner pressure is exceed 0.027mpa.
Over pressure protection:
If the pressure exceed the working pressure, the safety valve will exhausting the air.
Low water protection:
The unit can not be started if the water don’t reach the high level, and the power will cut off directly.
Over current protection:
The broker will cut off the power by the over current happened.

TM-XD Table Top Steam Sterilizer TM-XD Table Top Steam Sterilizer

Specifications:

Technical Data

   TM-XD20D

TM-XD24D

Sterilizing chamber volume

20L

ф250x 420mm

24L

ф250 x 520mm

Working pressure

0.22 Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0~99min

Heat average

≤±1℃

Power

1.5KW1 AC220V.50Hz

Sterilizing plate

340x200x30(3piece)

  400 x 200 x 30(3piece)

Dimension

480x480x380

580x480x384

Exterior package dimension

700x580x500

800x580x500

G.W/N.W

43/40kg

50/45kg



Specifications:

Technical Data

TM-XD35D

TM-XD50D

Sterilizing chamber volume

35L

ф 300 x 500mm

50L

ф 340 x 550mm

Working pressure

0.22 Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0~99min

Heat average

≤±1℃

Power

2.7KW/AC220V.50Hz

Sterilizing plate

400 x 200 x 30(4piece)

500 x 250 x 30(4piece)

Dimension

730x550x510

770x600x540

Exterior package dimension

810x680x650

880x730x700

G.W/N.W

90/73kg

105/86kg
