SOM-2000C Multifunctional Operation Microscope

Model: SOM-2000C
Quantity:

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

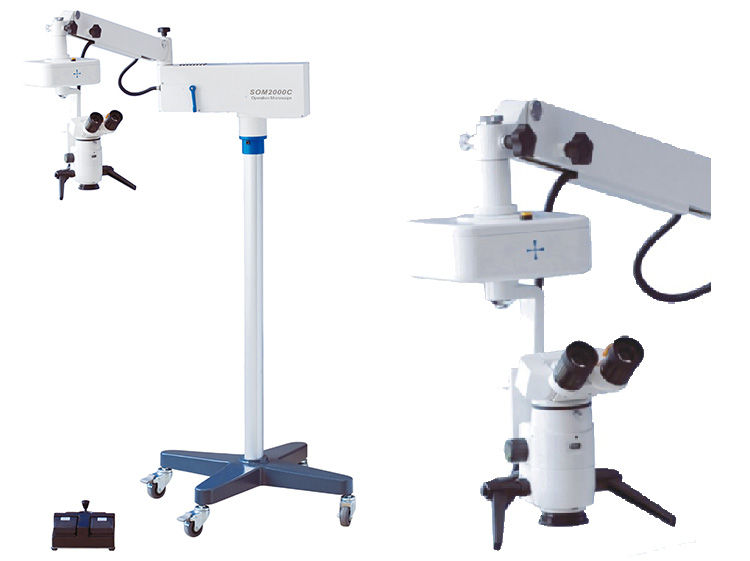

SOM-2000C Operation Microscope

Features:
1.Compact structure and complete functions.
2.4X~24X zoom magnifications, horizontal movement of foot control and fine focusing.
3.Germany imported Schott optics ensure the sharpimage and even field of view.
4.Applied in operations and fine examinations ofophthalmology,ENT ,surgery,etc.

SOM-2000C Operation Microscope

Specifications:

Eyepiece Magnification

12.5*/16B

Objective Focus

f=200mm (f=175/250/300 is optional)

Working Distance

190mm

Magnification for Main Microscope

4X ~24X

Diameter of Field

Ф41.5mm~ Ф7.5mm

Adjustable Diopter

±6D

Adjustable Range of Pupil Distance

55mm ~ 75mm

Visual Angle of Ocular

30″ ~ 90 (Eyepiece moving between0″ ~ 180 is optional )

Maximal Resolution

119LP/m

Illumination Source

15V/150W, Medical Cold-reflection Halogen Bulb

Illumination Type

6° 0° Coaxial illumination

filter

Orange filter ,çobalt filter is optional)

Coaxial Illumination

>40,000lx

Reaching Radius of Arm

1020mm

Adjustable Vertical Range

±250mm

Fine Focus Speed and Range

≤ 2mm/s, 30mm

Speed for X/Y and Range

≤ 2mm/s, 50mm x 50mm

Input Voltage

AC 220V ± 22V /50HZ ±1HZ, AC 110V ±11V/60HZ±1Hz

Power

200VA

Fuse

AC250V T4AL (51S-040H). AC125V T8AL (51S-080L)

Electrical Safety Standard

Executive standard: GB 9706.1-2007, Class I

Packing Volume

0.418m3 2cartons
