S8 Slit Lamp

Model: S8
Quantity:

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

S8 Slit Lamp

Video:

Feature:

* The slit lamp consists of an illumination system and a binocular observation system. Indication for use: AC-powered slit lamp Biomicroscopes intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule. It is used to aid in the diagnosis of diseases or trauma which affects the structural properties of the anterior eye segment.

* Total 5 magnifications:6X, 10X, 16X, 25X, 40X

* 12.5x eyepiece

* There are 4 types of filters to choose: Heat absorption filter, Light—reducing filter(ND), Red free(green) filter, Cobalt blue filter.

* If tilting the Control lever/joystick , you can make the instrument move slightly on the horizontal plane. If turning the handle, you can adjust the height of the instrument.

* Component: Illumination part binocular microscope, headrest, pedestal, operation platform.

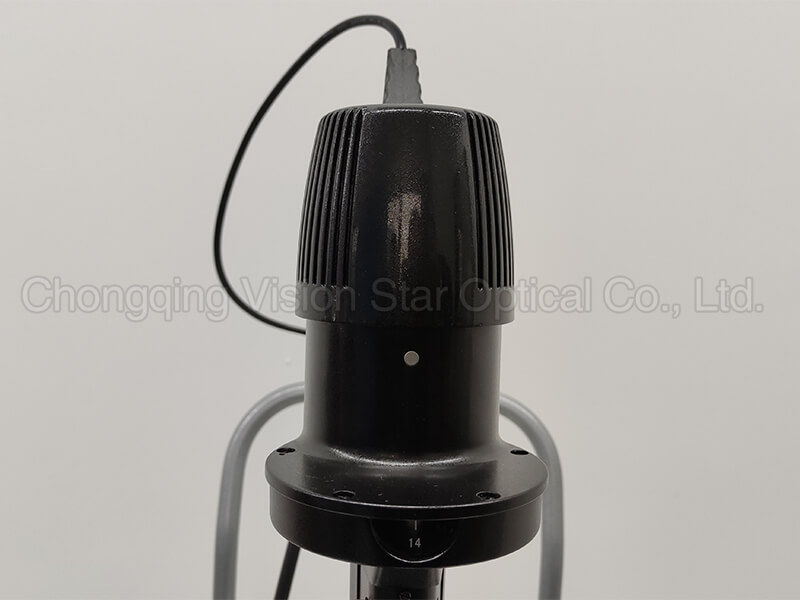

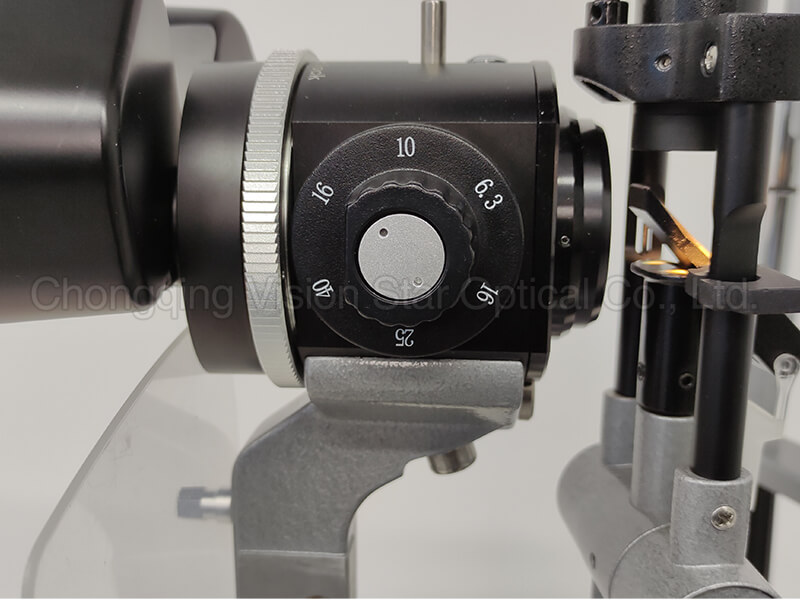

5 magnifications LED lamp

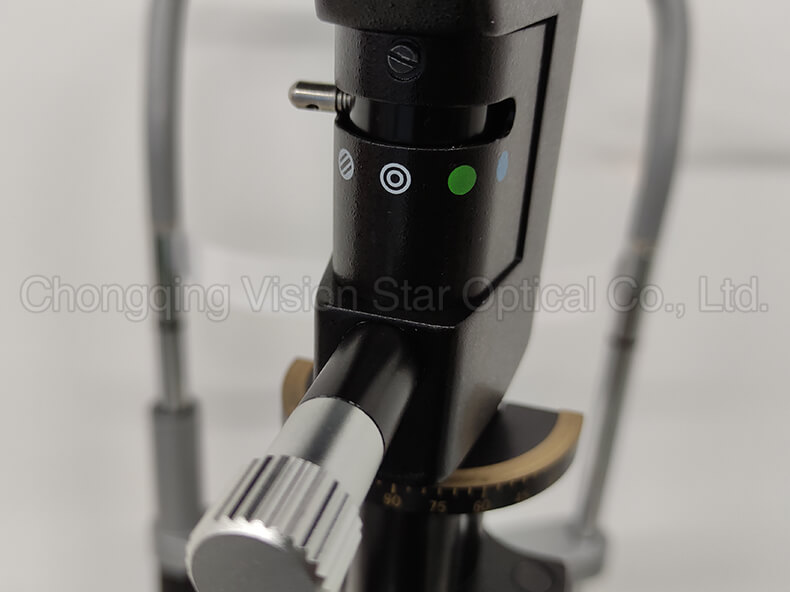

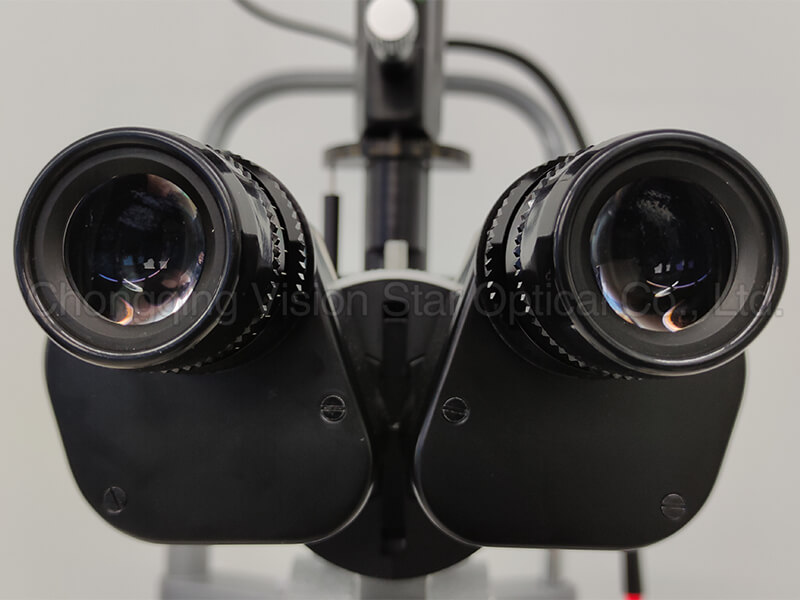

12.5x magnification eyepieces 4 filters

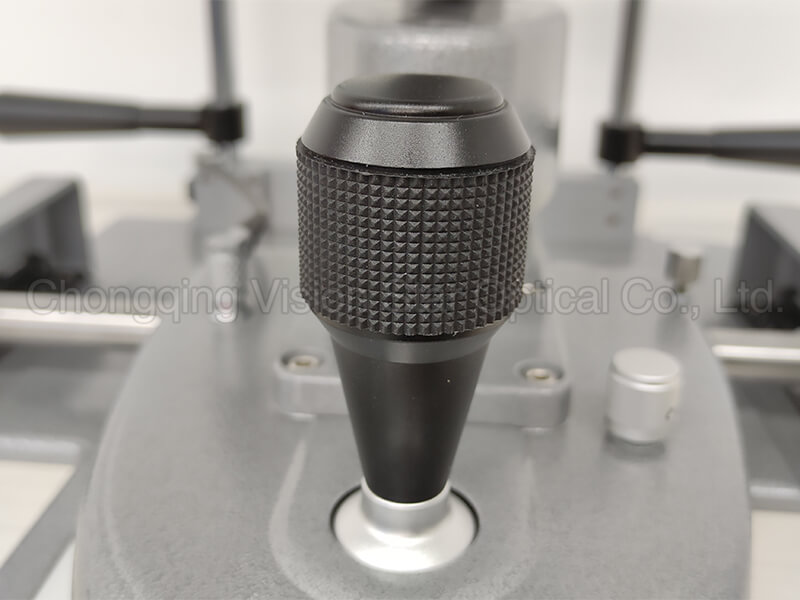

Adjustable illumination angle Smooth and stable joystick

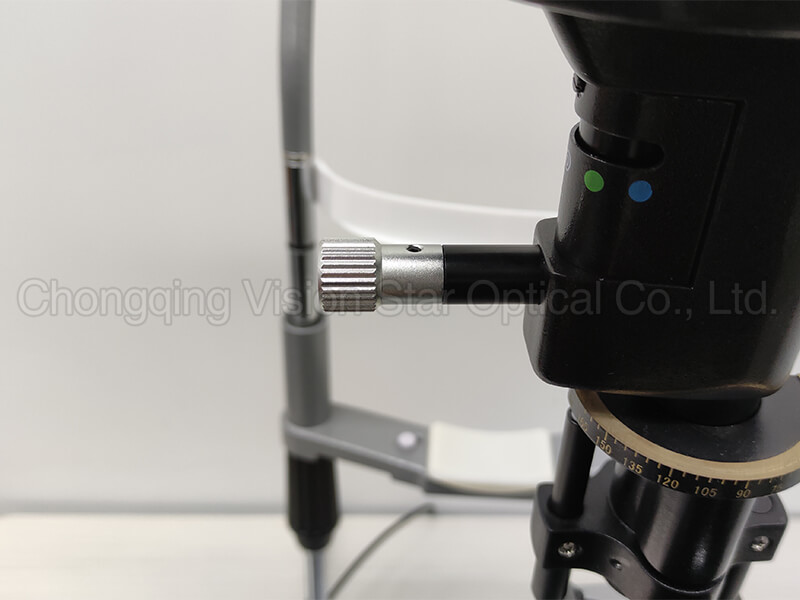

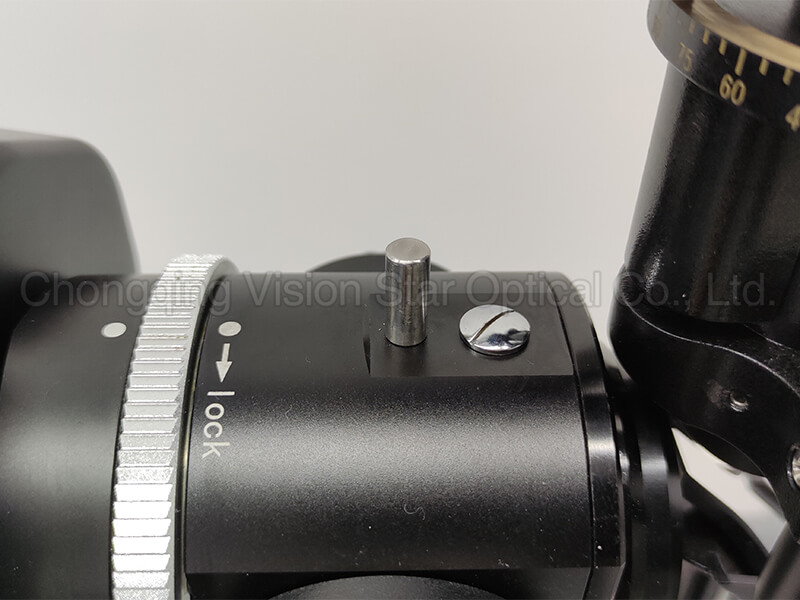

Interface for tonometer and laser Adjustable light spot size

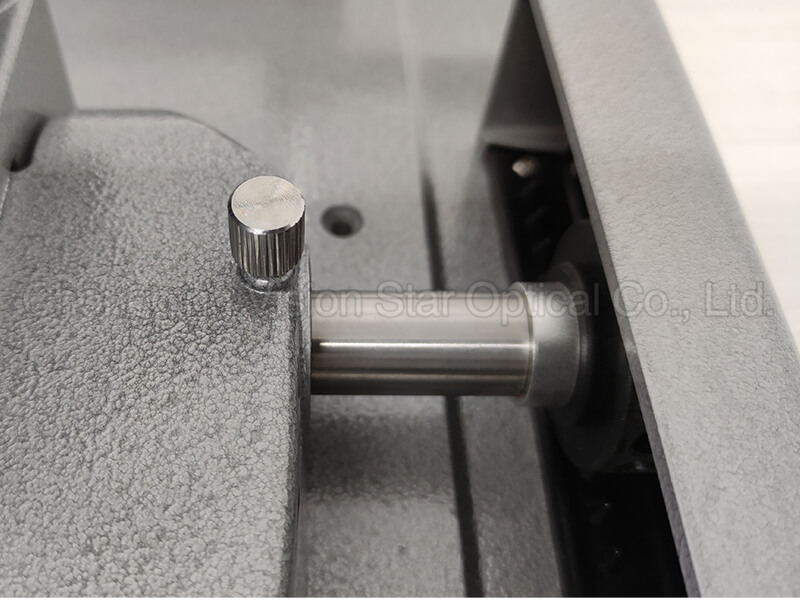

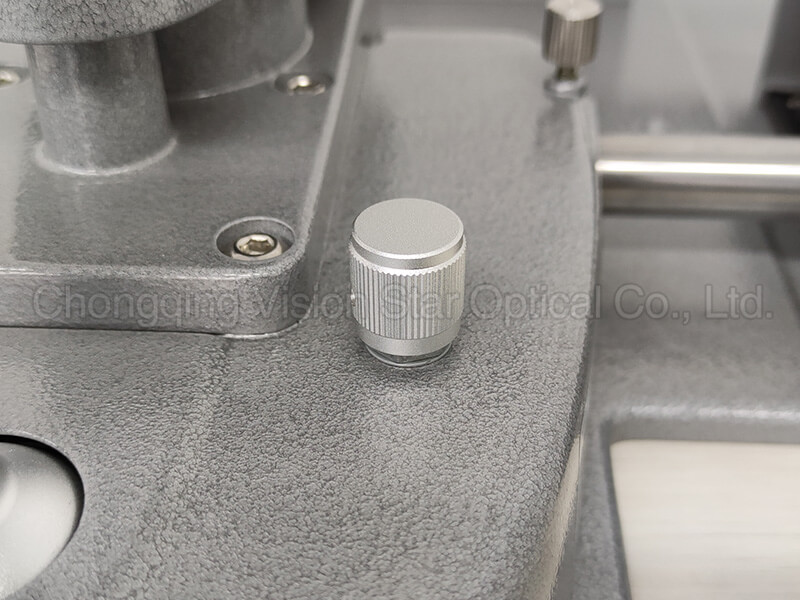

Stepless light brightness adjustment knob Platform lock knob

Specification:

Microscope



Type

Parallel type, Galilean system

Illuminance

11000 lux

Eyepiece

12.5X

Magnification

6X, 10X, 16X, 25X, 40X

Visual Field Diameter

Φ33mm, Φ20mm, Φ13mm, Φ8mm, Φ5mm

Pupil range

55mm—75mm

Diopter

-7D—+7D

Illumination



Slit image width

0mm —14mm continuous

Slit image length

1mm —14mm continuous

Diameter of aperture

Φ14, Φ10, Φ5, Φ2, Φ1, Φ0.2(mm)

Slit angle

0º—180º continuously rotation

Illumination tilting

5º, 10º, 15º, 20º totally 4 step

Filter

Heat absorption, Grey, Red free, Cobalt blue

Illumination

LED, 12V1A

Head rest



Move range

>80mm

Fixing lamp

3.5V Red LED

Working environment



Environment temperature

5℃~40℃

Relative humidity

≤85%

Atmospheric pressure

500hPa~1060hPa

Power

A.C. 220V 50Hz

Input power

75VA

Configuration



Head bracket(head rest & chin rest)

1

Workbench-Metal one



1 (PS: Wooden one is optional, deliver only when ordered Binocular microscope)

Illumination system

1

Pedestal

1

Power supply box

1

Focusing/ test rod

1

Rail Cover

2

Power wire

1
