Reticam 3100 Fundus Camera

Model: Reticam-3100 Fundus Camera

Reticam 3100 Mini: Color Fundus Camera

Reticam 3100A: Color Fundus Camera

Reticam 3100B: Fundus Camera & FFA (Fluorescein Fundus Angiography)

Reticam 3100C: Fundus Camera & FAF (Fundus Autofluorescence)



Test Mode: Non-Mydriatic / Mydriatic Photography, Anterior Segment Photography, Fundus Nuorescence Angiography (option)

Digital Camera: Canon EOS Technology

Image Resolution: 18 Mega Pixel

Minimum Pupil Size: 2.8mm

Diopter Compensation: -25D~+25D

Max Angle of View: 50°

Working Distance: 35mm

Quantity:

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

Reticam 3100 Fundus Camera

Reticam 3100 Mini: Color Fundus Camera

Reticam 3100A: Color Fundus Camera

Reticam 3100B: Fundus Camera & FFA (Fluorescein Fundus Angiography)

Reticam 3100C: Fundus Camera & FAF (Fundus Autofluorescence)

Reticam 3100 is a fully automatic non-mydriatic integrated ophthalmic fundus camera for retina examination. It has LCD color touch screen. It is easy to operate, and you can get exam results within 10 seconds. This fundus camera has professional software for doctors to perform examination, manage patient information, process pictures, and generate analysis reports.

Features:
1. One touch image acquisition.
2. Fast and accurate autofocus.
3. Non-mydriatic and auto exposure.
4. Smart operation: automatic, easy, and fast.
5. Dual-camera system.
6. Soft lighting-advanced optical technology.
7. Non-mydriatic design-minimum pupil size of 2.8mm.
8. Mosaic function.

Reticam-3100 Fundus Camera



Reticam-3100 Fundus Camera Reticam-3100 Fundus Camera
Reticam-3100 Fundus Camera Reticam-3100 Fundus Camera



Reticam-3100 Fundus Camera Reticam-3100 Fundus Camera

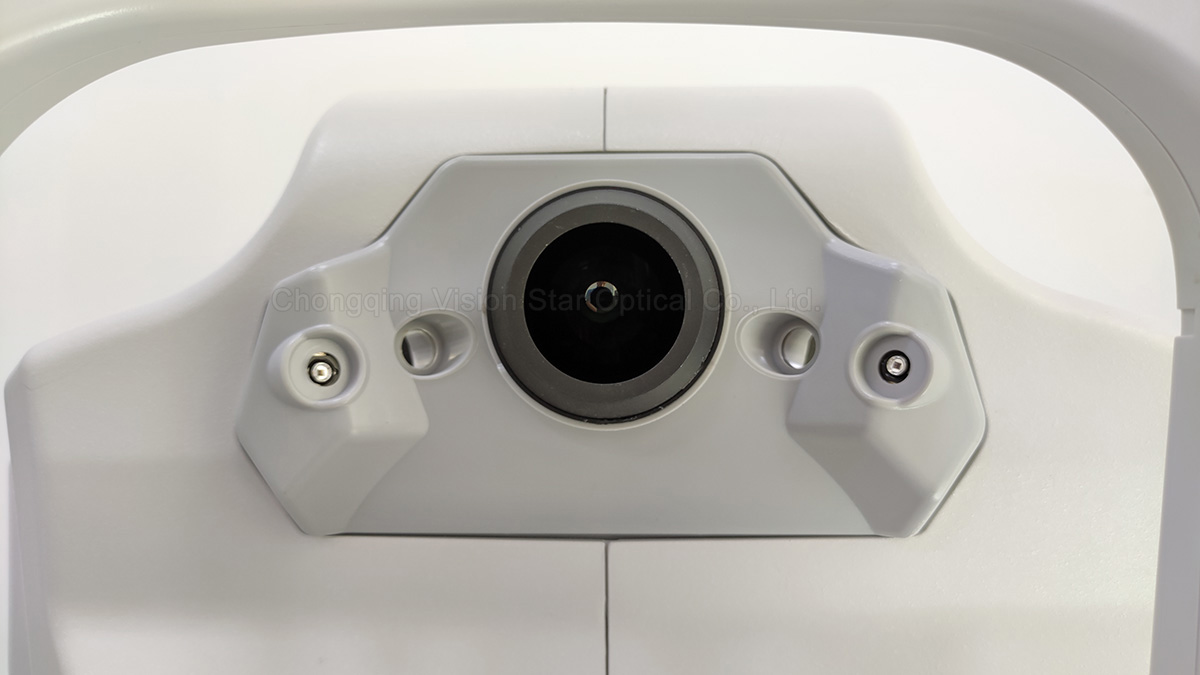

10.1 Inches Tilting Touch Screen Advanced Optical System
Reticam-3100 Fundus Camera Reticam-3100 Fundus Camera
Motorized Chinrest USB and Internet Interfaces

High Definition Fundus Images

Reticam-3100 Fundus Camera Fundus Images

Smart operation – automatic, easy, and fast

Easy to operate, only three steps are needed:

1: Enter patient information;

Reticam-3100 Patient Management

2: Choose OD (right eye) or OS (left eye) and position the pupil between two-line marks;

Reticam-3100 OD OS

3: Click “Take Picture”, the image will be taken automatically.

Reticam-3100 Capture

Dual-camera system – accurate autofocus

Dual-camera system helps search and locate pupil center fast and improve the accuracy for autofocus.

Soft lighting – advanced optical technology
Soft lighting reduces discomfort caused by the illumination during exam.

Non-mydriatic design – minimum pupil size of 2.8mm
Measurable minimum pupil size is 2.8mm. So this fundus camera can be used for patients who have small pupils.

Reticam 3100 Fundus Camera

Mosaic function – 9 pictures from up to 135° range

With mosaic function, you can choose 9 different internal fixations (from up to 135° range) to take pictures and generate a mosaic image.

Reticam-3100 Fundus Camera Mosaic

Reticam-3100 Fundus Camera 12

High quality step motors – quiet
High quality step motors reduce noise effectively and provide quiet environment for patients and operators.

Technical Specifications

Item Specification
Acquisition modes Non-Mydriatic / Mydriatic Photography, Anterior segment photography, Fundus nuorescence angiography(option)
Field of view 50°
Minimum pupil size 2.8mm
Focus  modes  Auto/Manual
 Exposure modes Auto/manual
Operation Auto
Image acquisition time Within 10 seconds
Image resolution 18mega pixel
Working distance 35mm
Diopter compensation ±25D
Fixation   External fixation/internal fixation
DICOM30 Yes
Autofocus assist light Infrared LED
Power supply           100-240v 50/60HZ
