OCT-800 Ophthalmic OCT Optical Coherence Tomography

Model: OCT-800

MOQ: 1 Set


Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Get Price Now

Chat on WhatsApp: whatsapp +8613618377608

OCT-800 Optical Coherence Tomography

OCT-800 Ophthalmic optical coherence tomography OCT machine is a comprehensive eye diagnostic device with cornea scan function.


* OCT-800 is a new generation of HD SD-OCT, with upgraded function, clear image and smooth system. It is equipped with professional analysis software to accurately identify retinal diseases, help screen and reduce the missed diagnosis of the initial examination, which can greatly improve the clinical use efficiency.

* It uses LSLO technology, with up to 2.65mm scan depth, and the lateral resolution of retinal fundus image is up to 5μm. Equipped with professional analysis software, it can obviously show the macular thickness under the macular thickness analysis model, which helps accurately identify clinical macular diseases.

* Deep to the Bottom of Fundus

The scan depth is up to 2.65mm, reaching to the choroid and even the sclera. Fully display of all layers during one scan. The scan depth (imaging depth) is one of the most important performance parameters in the OCT system. OCT-800 has an obvious advantage in depth, that is, the choroid imaging is clearer without affecting the axial resolution. It has significant advantages for fundus diseases involving highdepth and high resolution, such as choroid disease diagnosis.

* Wide to the Edge of Vision

Large scanning range, clear macular area and optic disc area at a glance.

* Auto Focus

OCT-800 can automatically complete the tracking of fundus and macula, detect and calibrate the central part of the pupil, detect and adjust the focus and fault position, and display retina layers of high-definition. The whole acquiring time is limited to 5 seconds, greatly saving the diagnosis time.

* Scan Mode

OCT-800 has a variety of scan modes, including area scan, HD one line scan and multilines scan.

Area scan: 512*64, range 6mm*6mm\range 12mm*12mm

HD one line scan: 2048*30, length 6mm; 1024*30, length 12mm

Multilines scan: 5 lines parallel scan, Radiation scan, Circular scan

* Glaucoma Analysis

Accurately measure the retinal thickness around the fovea and compare it with the age-related normal data to analyze the deviation.

Perform circular scan around the optic papilla, automatically quantify the optic nerve thickness, and compare the thickness with database, so as to examine the atrophy of the optic nerve as an early sign of glaucoma.

* Follow-up, a More Efficient Patient Management

Accurate and rapid scan helps follow up the disease changes, making diagnosis more efficient and easier.

OCT-800 can automatically record current scanning position of macular and eyeball and intelligently locate the previousscanning position in the later follow-up examination, to ensure that two scans are in the same position. Based on the trend analysis of retinal thickness in different stages, perform long-term follow-up examinations and trend analysis.

* Anterior Segment Examination

Cornea scan

HD scan, multiple images combined to produce better image, clear cornea structure: corneal epithelial layer, anterior elastic layer and corneal stroma

Auto measurement and manual measurement for each cornea layer thickness

Fundus Image

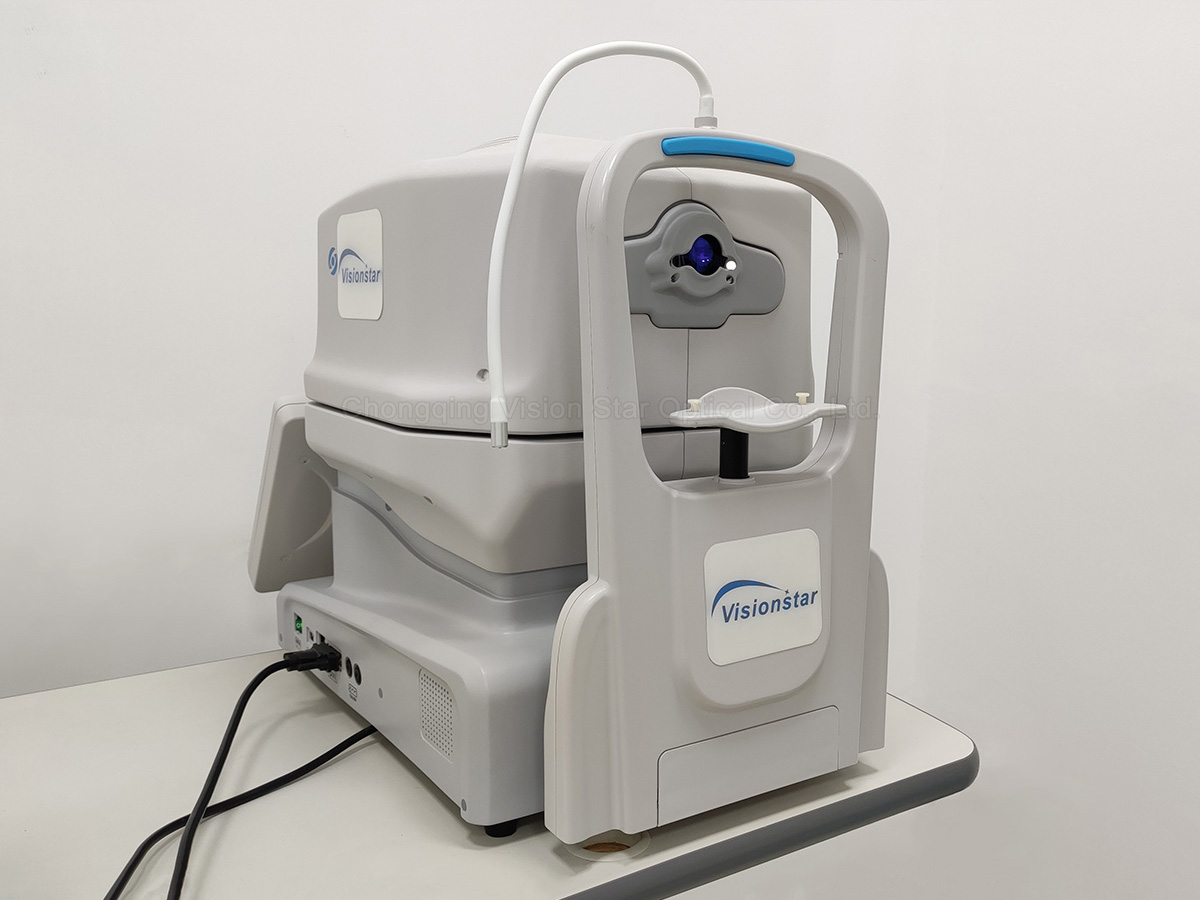

Retiview-500 OCT Machine

Retiview-500 OCT Machine Retiview-500 OCT Machine
Retiview-500 OCT Machine Retiview-500 OCT Machine


Technical Data


Scan light source


Central wavelength


Scanning speed


Maximum scanning depth


Scanning range


Light power

≤750μw (at the cornea)

Refractive compensation range




Axial resolution


Horizontal resolution


Fundus image


Linear scanning ophthalmoscope (LSO)


Central wavelength


Maximum imaging range




Scan mode


Cube scan


Multi-line scan

five-line scan, radial scan, scan length 6mm/12mm

High list line scan


Ring scan

diameter 3mm

Analysis functions


Macular thickness analysis, optic disc RNFL thickness analysis, follow-up analysis

Anterior segment analysis: corneal thickness and atrial Angle were measured



Hard disc





RTX2060 6G


DDR4 16G


24-inch LCD screen
