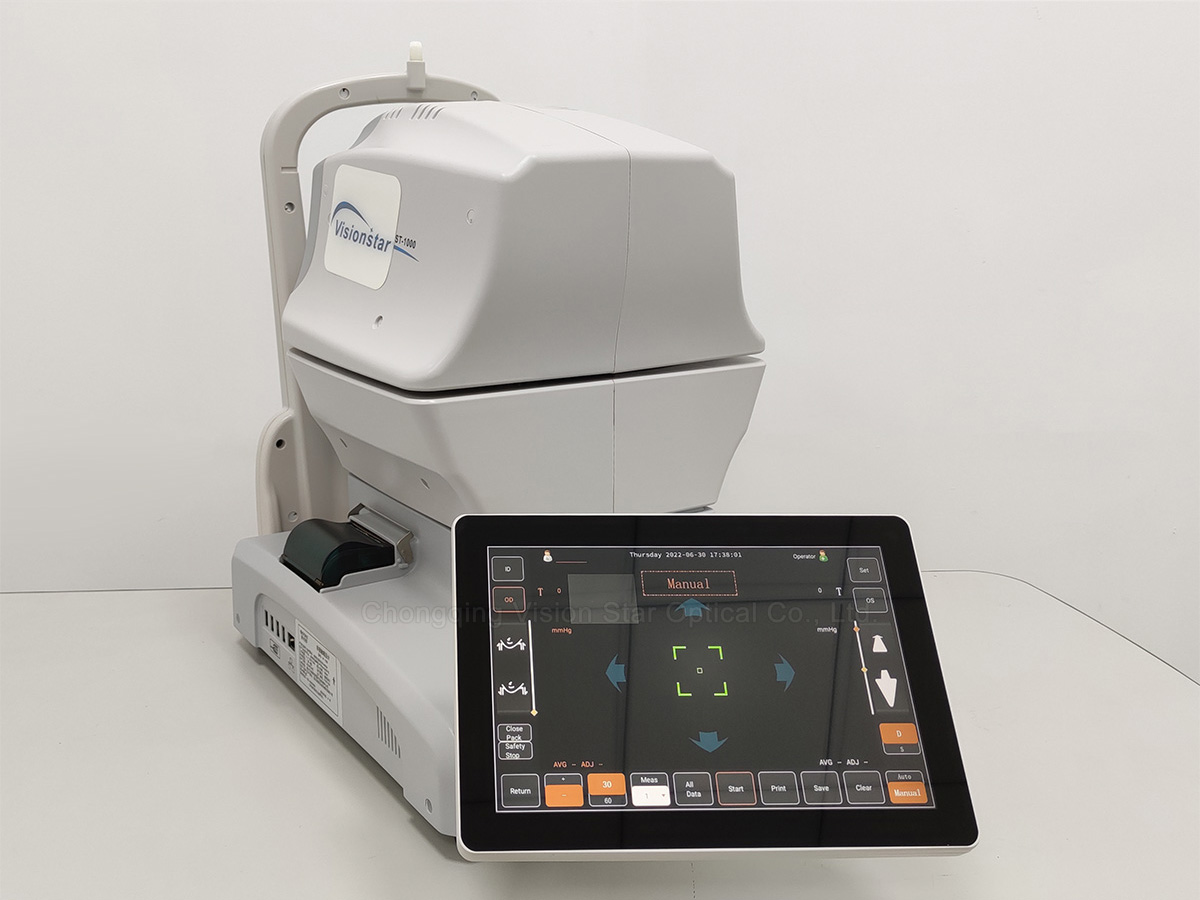

NCT-100 Automatic Air Puff Non-Contact Tonometer
MOQ: 1 Set
NCT-100 is a non contact tonometer, using puff of air to measure eye pressure. This pulse air tonometer is accurate, easy and fast to operate, and you can get a measurement result within 10 seconds. Non contact air puff tonometer will also prevent infections and corneal injuries during the measurement.
NCT-100 Full Auto Air Puff Non-Contact Tonometer
NCT-100 air puff tonometer is a non contact tonometry machine for intraocular pressure (IOP) test. This machine is simple and easy to operate, and you can get test results within 10 seconds. Contactless measurement will reduce injuries or infections on eyes.
Product features:
NCT-100 air puff non-contact tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results, and easy to operate. The air puff non-contact tonometer can be used to measure intraocular pressure (IOP) and corneal thickness.
 |
 |
 |
 |
Performance Features:
1. Auto 3-D positioning of xyz results in precise and reliable measurement.
2. Full-auto measurement for both right and left eye data without manual switch.
3. Easy to operate the tonometer with color touch monitor.
4. Stable data of IOP through soft air measurement .
5. To compensate corneal thickness measurement of IOP.
 |
 |
| 10.1 Inches Tilting Touch LED Screen | Motorized Chinrest |
 |
 |
| Built-in Thermal Printer | USB and Internet Interfaces |
Fully automatic eye pressure measurement
Database for measurement results
Printed test report
Specifications
| Intraocular pressure (IOP) measuring range | 1mmHg~30mmHg /1mmHg~60mmHg ( precision of 1mmHg) |
| Measuring system | dual sensor system of light and pressure |
| Working distance | ≥11mm |
| R/L | automatic detection and display |
| Measuring result | 10 times per eye; 3 times result printing per eye |
| Recording | build-in printer |
| Measuring mode | auto/manual |
| Focus | when luminous spot is in the focus frame, 2 modes can be chosen. auto mode: auto intraocular pressure measurement manual mode: when it’s good focus, the frame will turn yellow into green, and click to start the measurement |
| Error indication | if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ” |
| Safety limit button | install measurement for minimum distance between head and patient |
| Safety functions | the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head. |
| Movement range | ≥30mm（front to back)/ 90mm(left to right)/ 30mm(vertical) |
| Jaw layer vertical movement | 0~65mm with under jaw layer |
| Display mode | 10.1-inch HDMI color LED touch monitor |
| Output port | USB2.0 |
| Working platform | electric elevating platform |
| Weight | 19.7kg |
| size | 380 mm (L) x 460mm (W) x 505mm (H) |
| Power supply | 220V/50HZ |
With more than 20 years experience in ophthalmology, Chongqing Vision Star now has become a professional manufacturer and supplier for ophthalmic and optometry equipment. Our main products include slit lamp, fundus camera, tonometer, OCT machine, AB scan, vision field analyzer, etc. These products are CE and FDA approved. With high technology and artifical intelligence, our ophthalmology diagnostic machines show clear image and accurate results of eyes, helping doctors to provide treatment solution for the patient. The products have been exported to more than 100 countries, and widely praised among our customers. Our company have expert sales team and technician team, provide 1-3 years quality warranty, technical support, and life time after-sales service. We are committed to building a good brand, providing sincere service, and establishing long-term cooperative relationship with our customers. We are glad to have video call with you, introducing our product details to you so that you can know our company and our products better. Please contact us if you are interested in NCT-100 Automatic Air Puff Non-Contact Tonometer.
