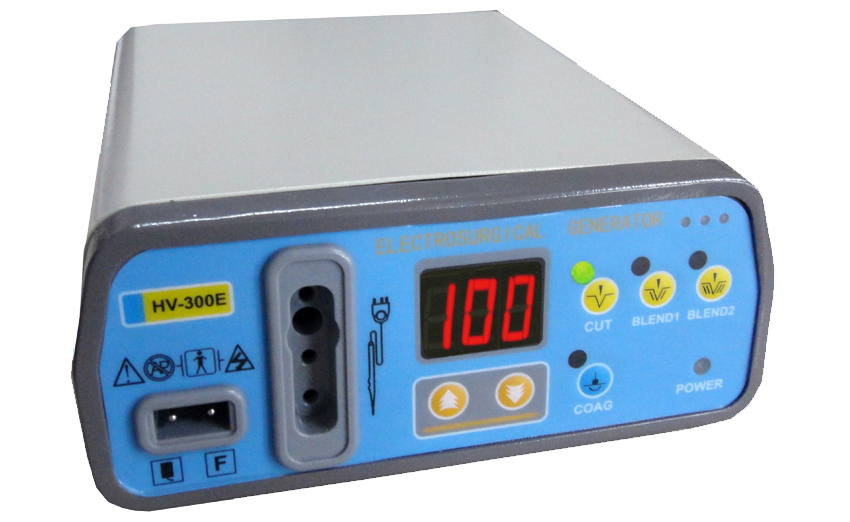

HV-300E MINI Protable Electrosurgical Generator

Quantity:

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Send Inquiry

Chat on WhatsApp: +8613618377608

HV-300E MINI Protable Electrosurgical Generator

Features:
Intelligent Device System:
The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for us in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.
REM (Return Electrode Monitoring):
Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Multilanguage Available:
Language options: English, Spanish, Portuguese, Turkish and etc
Application of Use:
General Surgery; Dermatology; Vascular Surgery; Obstetrics and Gynecology
ORL/ENT; Minimally Invasive Surgery (MSI)
Cerebral surgery;Neurosurgery, Orthopedics & Plastic Surgery.
Low Frequency Leakage:
Normal Polarity, Intact Chassis Ground: <10μA
Normal Polarity, Ground open< 50μA
Reverse Polarity, Ground Open< 50μA
Sink Current, 140V Applied, All inputs < 50μA
Power Readouts
Agree with actual power into rated to within ±20% or 5W, whichever is greater, Dosage Error monitor.

HV-300E MINI Protable Electrosurgical Generator HV-300E MINI Protable Electrosurgical Generator

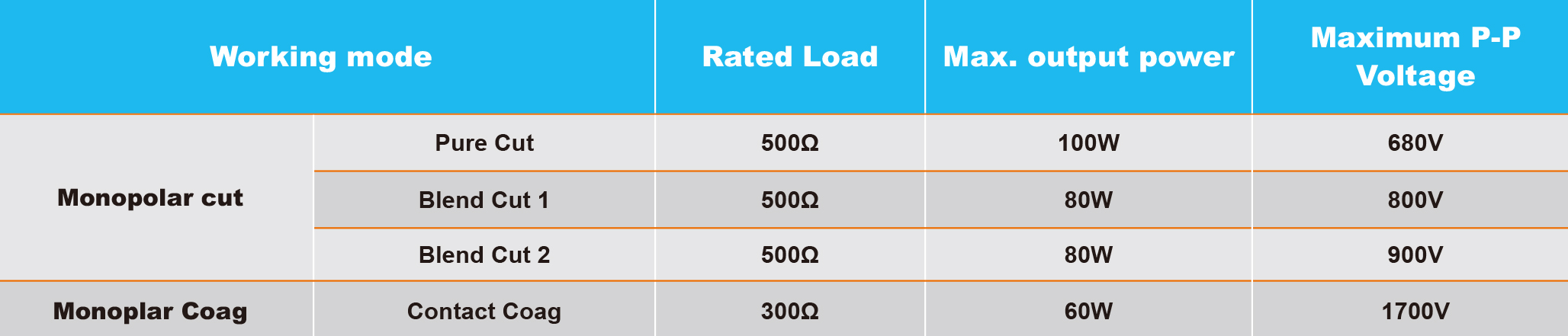

Specifications:

Main Frequency

512 KHz

Power Supply

110V/60Hz;220V/50Hz

Weight

3.00KG

Dimension

27*17*29

High Frequency Leakage

Monopolar: < 150mA;

Low Frequency Leakage

Normal Polarity, Intact Chassis Ground: <10μA

Normal Polarity, Ground open< 50μA

Reverse Polarity, Ground Open< 50μA

Sink Current, 140V Applied, All inputs < 50μA

Power Readouts

Agree with actual power into rated to within ±20% or 5W, whichever is greater, Dosage Error monitor.
