Elevating-type Pulse Vacuum Vertical Medical Autoclave

Model: TM-XB20J / TM-XB24J

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Get Price Now

Chat on WhatsApp: +8613618377608

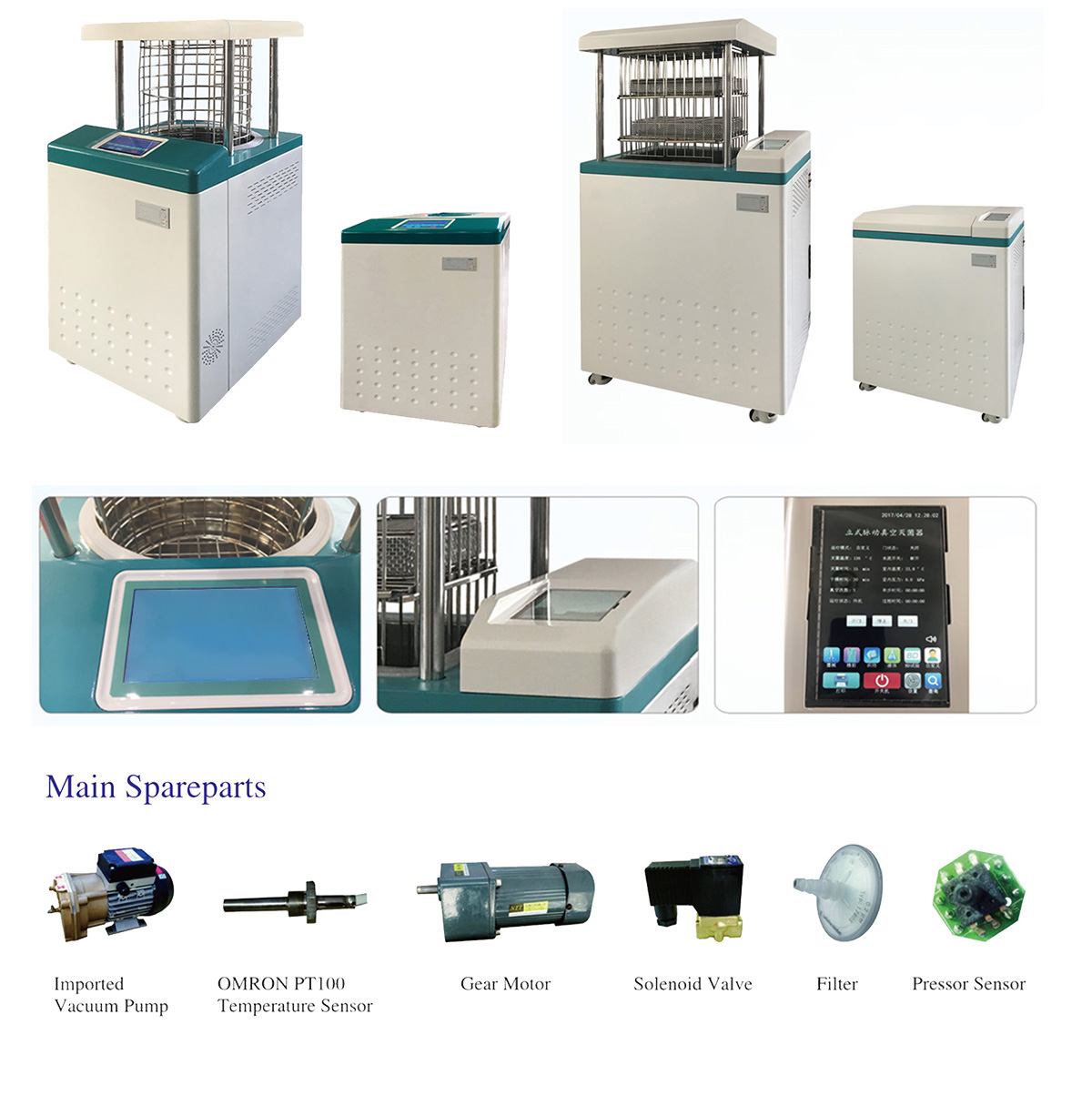

Elevating-type Pulse Vacuum Vertical Autoclave

1.7″ capacitive touch screen, fully automatically controlled, easy to operate on.
2.Elevating type door, which is more convenient to place and fetch the objects from the autoclave.
3.The whole procedure from water inlet, pulse vacuum, heat , sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one key operation.
4.Pulse vacuum, the limit is 0.080Mpa, which ensure the sterilizing more completely.
5.Separated steam generator, which is more energy saving by comparing to the normal heating and prevent the sterilizing objects from been oxidized.
6.There are several programs loaded in the autoclaves for different requirement of different objects.
7.With PT-TT testing port, easy to run the testing.
8.Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20 µm, which ensure the air is sterile, prevent the contamination. inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

Elevating-type Pulse Vacuum Vertical Autoclave




Sterilizing chamber volume

20L(φ250×420 mm)

24L(φ250×520 mm)

Maximum working pressure


Maximum working temperature


Adjustment of temperature



0-60 min

Chamber temperature equal

≤ ± 1℃

Source power

1.5KW/AC 220V 50Hz (AC110V 60HZ)

Sterilizing plate

340×200×30 mm (3 piece)

400×200×30 mm (3 piece)


480×480×384 mm

580×480×384 mm

Package dimension

700×580×500 mm

800×580×500 mm

 G. W/N.W

44/40 kg

50/45 kg
