T8 4D Echo Color Doppler Trolley Ultrasound Machine
MOQ: 1 Set
Real Time 4D Color Doppler Ultrasound:
1. Monitor: 21.5 inch LED + 10.4 inch touch screen
2. Intel i5 processor ,4G RAM,SSD 120G+1T
3. Four active probe sockets
4. B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, PDI Color, Dual Color Simultaneous 2D/Color Compound, PW, CW, Duplex/Triplex, Directional PD, 2D, 3D, 4D TDI, Auto IMT, Free hand Elastography, Panoramic Imaging, Trapezoid Imaging, Color M Mode
5. Depth: 20-340mm
6. External interfaces: USB, VIDEO (PAL-D), HDMI, DICOM, DVD/CD

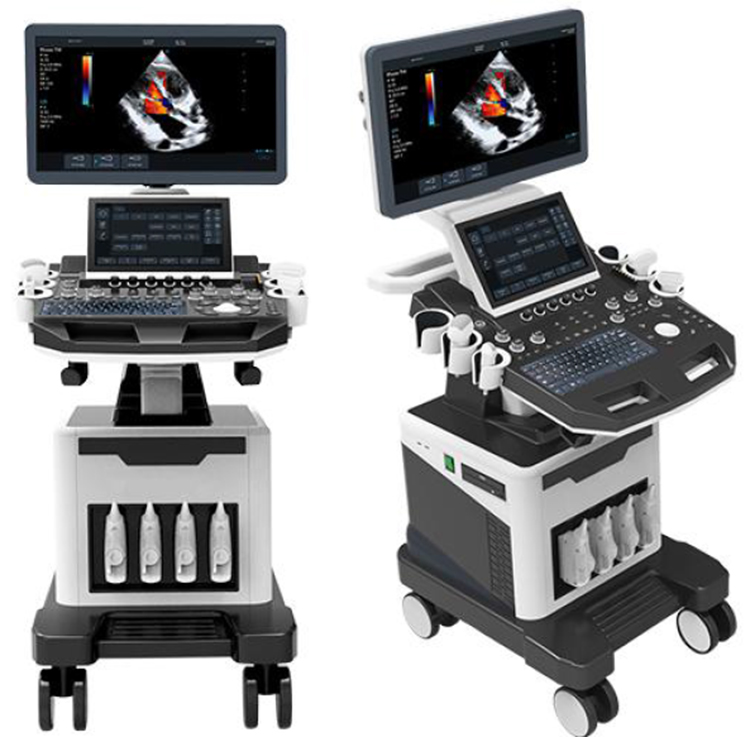

T8 4D Echo Color Doppler Trolley Ultrasound Machine
Features:
1．Trolley type full digital color Doppler ultrasonic mainframe
2．Ultrasonic host operating system: Windows operating system
3．Applications：Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal
4．Probes：Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volumeprobe
5．Applications and report：Support abdomen, obstetrics, gynecology, heart, urology, small organs, superficial, blood vessels, pediatrics, etc. advanced measurement software package, report software package, patient management software package
6．carotid artery intima measurement thickness(IMT）
7．Automatic spectral envelope measurement
8．Full digital transmission and reception of beam synthesizer
9．Color Doppler imaging（C）
10．Pulse Doppler Imaging（PW）
11．Coherent Contrast imaging（CCI）
12．Continuous wave Doppler imaging（CW）
13．B/C/D Real-time three synchronous imaging
14．Power Doppler imaging（PDI）
15．Direct power Doppler imaging（DPDI）
16．M mode imaging
17．Anatomic M mode imaging
18．Color Doppler M mode imaging

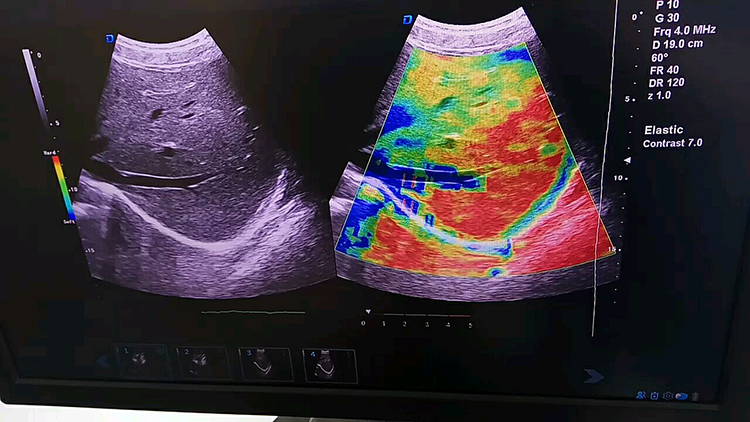

19．Elastography
20．Tissue Doppler imaging（TDI）
21．Strain rate imaging (SRI)
22．Tissue harmonic imaging（THI）
23．Fusion harmonic imaging（FHI）
24．Speckle Reduce imaging（SRI）
25．Panoramic imaging
26．Deflection imaging
27．Trapezoidal imaging
28．Adaptive velocity optimization
29．Free hand 3D
30．Real time 3D imaging（3D/4D）
Specifications:
| Probes | Fundamental Frequency | 2.0MHz/2.3MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/4.6MHz/5.0MHz/5.4MHz |
| Harmonic Frequency | 4.0MHz/4.6MHz/5.0MHz | |
| Fundamental Frequency | 4.0MHz/4.6MHz/5.0MHz/6.0MHz/7.0MHz/8.0MHz/9.2MHz/10.0MHz/12.0MHz/13.3MHz | |
| Harmonic Frequency | 8.0MHz/9.2MHz/10.0MHz, | |
| Fundamental Frequency | 3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz/10.0MHz | |
| Harmonic Frequency | 6.0MHz/7.0MHz/8.0MHz | |
| Fundamental Frequency | 3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz | |
| Harmonic Frequency | 6.0MHz/7.0MHz/8.0MHz | |
| Fundamental Frequency | 1.7MHz/1.9MHz/2.1MHz/2.5MHz/3.0MHz/3.4MHz/3.8MHz/4.2MHz/5.0MHz， | |
| Harmonic Frequency | 3.4MHz/3.8MHz/4.2MHz | |
| Fundamental Frequency | 2.0MHz/2.5MHz/3.0MHz/3.3MHz/3.7MHz/4.0MHz/5.0MHz/6.0MHz | |
| Harmonic Frequency | 4.0MHz/5.0MHz/6.0MHz | |
| 2D imaging mode | Gain | 0－100，Step 2 adjustable |
| TGC | 8 segment adjustable | |
| Maximum focus point | ≥7, which can be moved throughout the whole process. | |
| Speckle reduction | 0-5，5 level | |
| Space Synthesis | 0-2，2 level（Liner probe: 3 level， cardiac probe:0） | |
| Dynamic | 30-180，35 level，step 5 adjustable | |
| Line density | low、middle、high，3 level | |
| Frame correlation | 0-4,4 level | |
| Noise reduction | 0-5，5 level | |
| Edge Enhancement | 0-5，5 level | |
| Sound power | 2-10, 9 level | |
| Grey scale | 0-67, 67 level | |
| False color | 0-67，67 level | |
| Image style | Soft-Comparison，2 level | |
| Color Doppler imaging mode | Blood gain | 0-100，Step 2 |
| Parameter display | Velocity、Variance | |
| B-Restrain（B/W restrain） | 0-7, 7 level | |
| Speed Through | 0-8, 8 level | |
| Sampling number | 6-24, 7 level | |
| Blood flow preferred | 0-8, 8 level | |
| Filtering | 1-6, 6 level | |
| Sound power | 2-6, 4 level | |
| Noise reduction | 0-4, 4 level | |
| Smooth treatment | 0-4， 4 level | |
| Frame correlation | 0-6， 6 level | |
| Chromatography（Blood flow graph） | 0-37， 37 level | |
| Line density | Low-Middle-High， 3 level | |
| Frequency | 4 level adjustable | |
| Velocity | Minimum 0.4K，Maximum 40.5K | |
| Convex probe | 0.4K-4.3K-38.5K | |
| Linear probe | 0.4K-14.7K-39.0K | |
| Trans-vaginal probe | 0.4K-7.8K-39.7K | |
| Volume probe | 0.4K-4.2K-34.8K | |
| Micro-convex probe | 0.4K-10.3K-40.5K | |
| cardiac probe | 0.4K-7.8K-39.7K | |
| Pulse wave Dopplermode | Gain | 0-100，Step 2 |
| Spectrum envelope function | real time automatic spectrum envelope, manual spectrum envelope, and other modes. The system automatically analyses and displays various data such as PSV, EDV, RI, PI, S/D, ACC, HR and so on. Can wake up or close | |
| Sample volume | 0.5mm~30mm | |
| Blood angel | -75—75 degree，Step 5 | |
| False color | 0-67， 67 level | |
| Dynamic range | 20-40， 4 level | |
| Filter | 0-9, 9 level | |
| Smooth treatment | 1-4， 4 level | |
| Sound power | 2-5， 4 level | |
| Volume | 0-100, 10 level，Step 10 | |
| Audio filtering | 0-4， 4 level | |
| Base line | -1.0~1.0, | |
| Grey map | 0-67， 67 level | |
| Scan velocity | 100-500, 6 level | |
| PRF:Minimum 0.5K，Maximum 87.5K | ||
| Convex probe | 0.5K-4.3K-63.3K | |
| Linear probe | 0.5K-14.5K-78.4K | |
| Trans-vaginal probe | 0.5K-8.1K-78.4K | |
| Volume probe | 0.5K-4.2K-53.8K | |
| Micro-convex probe | 0.5K-10.3K-81.1K | |
| cardiac probe | 0.5K-4.3K-87.5K | |
| Frequency | 4 level | |
| Continuous Wave Doppler | Support probe | Cardiac probe,Adjustment of B mode parameters is switchable |
| Gain | 0-100，Step 2,Sampling line position is adjustable | |
| PRF | 0.9K~36.1K | |
| Baseline | -1.0~1.0 | |
| Blood angel | -75~75 degree | |
| Grey map | 0-67 | |
| Scan velocity | 100-300 | |
| False color | 0-67 | |
| Dynamic range | 20-40 | |
| Filtering | 0-9，9 level | |
| Smooth treatment | 1-4 | |
| Frequency | 2.0MHz/2.3MHz/2.5MHz/3.0MHz，4 level adjustable | |
| Sound power | 2-5 | |
| Volume | 0-100 | |
| Audio Filtering | 0-4 | |
| Anatomical M imaging | Support probe | Convex probe, Linear probe,Cardiac probe Adjustment of B mode parameters is switchable |
| Gain | 0-100，Step 2 M Sampling line angel is adjustable M Sampling line length is adjustable | |
| Sampling line | 3，Can be displayed or hidden separately | |
| Blood flow M mode | Gain | 0-100，Step2 |
| Frequency | 4 level | |
| Sampling number | 6-24 | |
| Speed through | 0-8, 8 level | |
| Scan velocity | 150-500 | |
| Frame correlation | 0-6, 6 level | |
| Filtering | 1-6，6 level | |
| Blood flow preferred | 0-8，8 level | |
| Smooth treatment | 0-4,4 level | |
| Map | 0-37, 37 level | |
| Tissue Doppler imaging | Gain | 0-100，step 2 |
| ROI area adjustable | ||
| Sampling number | 6-24 | |
| Velocity | 0.4K-8.0K | |
| Frame correlation | 0-6，6级 | |
| Tissue preferred | 0-7, 7 level | |
| Frequency | 2.0MHz/2.3MHz/2.5MHz/3.0MHz | |
| Panoramic imaging | Support probe | Linear probe |
| Speckle Reduction | 0-5, 5 level | |
| Deflection imaging | Support probe | Linear probe |
| Adjustment of B mode parameters is switchable | ||
| Deflection angel | 8 level | |
| Speckle reduction | 0-5, 5 level | |
| Dynamic rate | 30-180，Step 5 | |
| Line density | low-middle-high，3 level | |
| Frame Correlation | 0-4， 4 level | |
| False color | 0-67, 67 level | |
| Image style | Soft-Comparison，2 level | |
| Noise reduction | 0-5, 5 level | |
| Edge Enhancement | 0-5，5 level | |
| Sound power | 2-10，8 level | |
| Grey map | 0-67，67 level | |
| Trapezoidal imaging | Probe support | linear probe |
| Adjustment of B mode parameters is switchable | ||
| Deflection angel | 8 level | |
| Speckle reduction | 0-5, 5 level | |
| Dynamic rate | 30-180，Step 5 | |
| Line density | low-middle-high，3 level | |
| Frame Correlation | 0-4， 4 level | |
| False color | 0-67, 67 level | |
| Image style | Soft-Comparison，2 level | |
| Noise reduction | 0-5, 5 level | |
| Edge Enhancement | 0-5，5 level | |
| Sound power | 2-10，8 level | |
| Grey map | 0-67， 67 level | |
| Space Synthesis | 0-2, 2 level | |
| Freehand 3D imaging | Support probe | convex probe, linear probe |
| Display model | :4 pictures | |
| Image Rotation X/Y/Z Axis | ||
| Multi-slice Visibility | ||
| Real-time 4D imaging | Support probe: 4D volume probe Adjustment of B mode parameters is switchable | |
| Gain | 0-100，Step 2 | |
| Display model | one image、two images、four images | |
| Image Rotation | X/Y/Z Axis Multi-slice Visibility Light&Shade inversion | |
| Smooth | 0-4, 4 level | |
| Threshold level | 0-129, Step 3 | |
| Transparency | 1-509，Step 10 | |
| Render type | 4 kinds，Surface、maximum、minimum、perspective | |
| Extended Imaging | Gain | 0－100，Step 2 |
| TGC | 8 segment adjustable | |
| Maximum focus point | ≥7, which can be moved throughout the whole process. | |
| Speckle reduction | 0-5，5 level | |
| Space Compound | 0-2，2 level（Linear probe: 3 level，don’t support cardiac probe） | |
| Dynamic range | 30-180，35 level，Step 5 | |
| Line density | Low、Middle、High，3 level | |
| Frame correlation | 0-4,4 level | |
| Noise reduction | 0-5，5 level | |
| Edge enhancement | 0-5，5 level | |
| Sound power | 2-10, 9 level | |
| Grey map | 0-67, 67 level | |
| False color | 0-67，67 level | |
| Image style | Soft-Comparison，2 level | |
| Extended level: | Maximum 72 leve | |
| Convex probe | 9 level | |
| Trans-vaginal probe | 72 level | |
| Micro-convex probe | 29 level | |
| Cardiac probe | 40 level | |
| 4D Volume probe | 17 level | |
| Measurement and analysis function | General measurement | Distance, area, ellipse, cross line, angle, distance ratio, volume, Volume (ellipse), area ratio, diameter, joint angle |
| Cardiac | Automatic spectrum envelope、LV、Main Pulmonary artery diameter、RVEDd、RVEDs、LVM、LAV、HR、MVF、AO、AR、LVOT、TVF、Pulmonic valve、Pulmonary vein、RV、Doppler fetal heart sound、LVET、LVM、LVMI、AV | |
| Vascular | carotid intima (IMT), length stenosis ratio, area stenosis ratio, IMT (back wall), IMT (front wall) | |
| OB | Fetal routine、AFI、TW、GS、CRl、OFD、HL、ulna、NT、Fibula、Nbonel、Radial、Tibia | |
| GYN | uterus、cervix、corpus uteri/cervix uterus、left ovarian vein、right ovarian vein、dominant follicle、intima thickness | |
| Urologyseminal vesicle | :prostate、residual urine、left kidney、right kidney、left suprarenal vein、right suprarenal、left testis、right testis、left seminal vesicle、right | |
| liver、CHD、partal vein diameter、cholecyst、CBD、pancreas、spleen、Internal diameter of abdominal aorta、kidney Abdomen | ||
| Small parts | Thyroid | |
| Software package | Measurement package、Software package、Medical records management software package | |
| Graphic and text management system | Host build in 2 hard disk（SSD 120 1T），Start fast and stable | |
| Movie playback：≥1200 frames | ||
| Internal file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on. | ||
| Type of report is 16 | ||
| One key fast report graphic and text management | ||
| Interface | USB interface | 4 |
| HDMI interface | 1 | |
| RJ-45 interface | 1 | |
| Grounding wire interface | 1 | |
| DVD RW | 1 | |
| Configuration | Trolley type full digital color Doppler ultrasound diagnostic system | |
| Probe: convex array probe (standard), linear probe (optional), Trans-vaginal probe (optional), cardiac probe (optional), 4D volume probe (optional) | ||
| ≥13 quick adjusting knobs | ||
