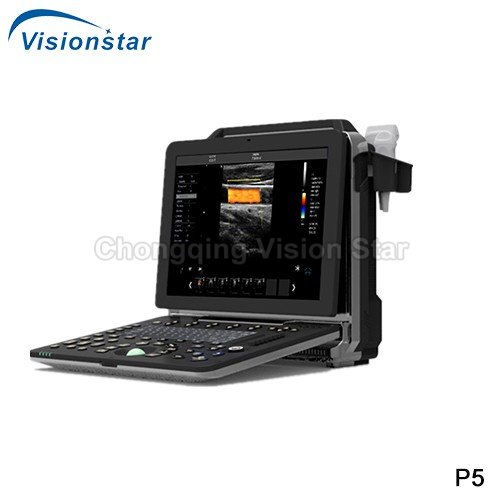

P5 Portable 4D Color Doppler Ultrasound Machine
MOQ: 1 Set
Standard Configuration:
1. 15 inch LED medicinal monitor
2. 4D, CW,THI function
3. PC Windows system
4. Rich measurement packages
5. Rechargeable battery (≥3H)
6. USB ports, HDMI, DICOM 3.0
P5 Portable 4D Color Doppler Ultrasound Machine
Features:
1．Laptop type all digital color Doppler ultrasound host
2．Ultrasonic host operating system: Windows7 operating system
3．Spectrum pulse Doppler
4．Direction energy Doppler
5．Real time three synchronization
6．Space composite imaging: the requirement is 3 level, visual adjustable.
7．Organized harmonic imaging technology
8．4B imaging mode
9. One key intelligent optimization
10．Support multilingual user interface
11．Monitor: 15 inches, high definition LED
12．Physical clipboard: save the image on the left side of the screen, which can be deleted directly.
13The system has the function of on-the-spot upgrade
14．Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.Support real-time 3D imaging function
15．Language: Chinese/English/Russian/Spanish/French/Arabic/Vietnamese/Portuguese/Indonesian
16. The probe interface is 2
Specifications:
| Probes | Convex probe | 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz, |
| Linear probe | 6.0MHz/6.5MHz/7.5MHz/10.0MHz/12.0MHz, | |
| Trans-vaginal probe | 5.0MHz/6.0MHz/6.5MHz/7.5MHz/9.0MHz, | |
| R11 Micro convex probe | 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz/6.0MHz/7.5MHz/10MHz, | |
| R15 Micro convex probe | 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz/6.0MHz/7.5MHz/10MHz | |
| Phased array probe | 2.1MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz, | |
| 4D Volume probe | 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz, | |
| Two-dimensional imaging mode | Gain | 0-100, step 2 visible adjustable |
| TGC | 8 segment adjustable | |
| Image optimization | visible and adjustable over 6 levels | |
| Dynamic range | 0-270dB 15 level visual adjustable | |
| False color | 7, visible and adjustable | |
| Smooth treatment | 8, visible and adjustable | |
| Edge enhancement | 8, visible and adjustable | |
| Sound power | 0-15, step 7%, visible adjustable | |
| Display depth | ≥320mm, | |
| Maximum focus number | 4 focal points, which can be moved throughout the whole process. | |
| Scan line density | 256 visible tunable | |
| Gray scale | 1-16 level visible visible and adjustable | |
| Filtering | 3 kinds | |
| Scanning range | 50%-100% | |
| Frame correlation | 0-4 level, visible and adjustable | |
| Color imaging mode | Color frequency | ≥7 frequency conversion, visible adjustable |
| Color deflection | equipped with | |
| C afterglow | 8, visible and adjustable | |
| Color map | 7, visible and adjustable | |
| Color reversal | adjustable | |
| B/C split screen synchronous display function | equipped with | |
| Color baseline | 7, visible and adjustable | |
| Color line density | adjustable | |
| Measurement and analysis function | General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, spectrum tracing, resistance index / pulsatility index, etc. | |
| Professional software package: abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid artery, Urology, orthopedics, peripheral blood vessels, heart. | ||
| Graphic and text management system | Host built in≥ 120G solid state hard disk to start fast and stable | |
| Movie playback: 600 frames | ||
| Internal patient file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on. | ||
| Report type 3 species | ||
| One key fast report graphic and text management | ||
| Interface | USB interface | 3 |
| Audio interface | 1 | |
| HDMI interface | 1 | |
| LAN interface | 2 | |
