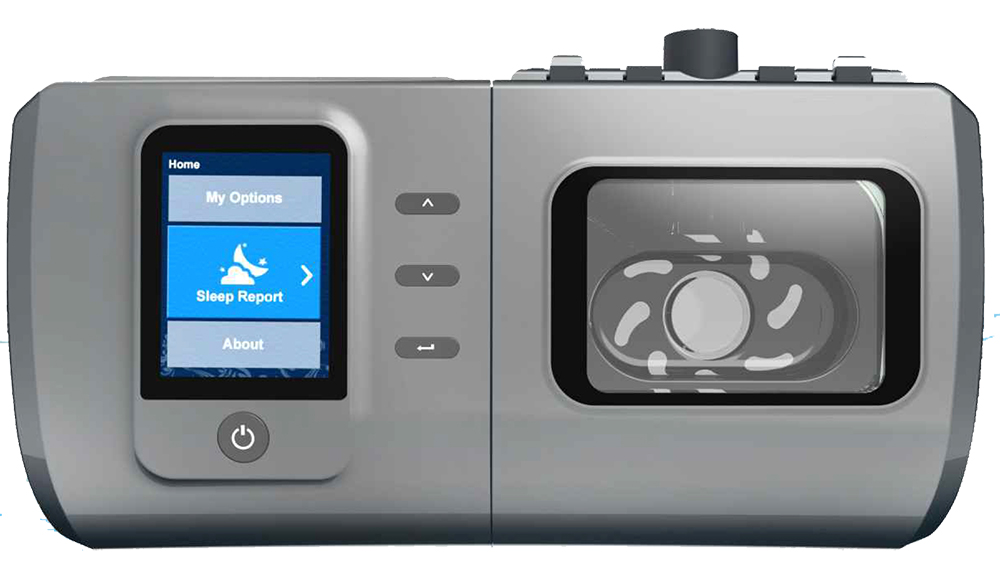

BiPAP DS-7 & DS-8 Ventilator
MOQ: 1 Set
BiPAP DS-7 & DS-8 Ventilator
Features:
1. AST(Automatic Synchronization Technology) anticipates respiratory waveform and provides corresponding EPAP and IPAP to ensure patient’s comfort and mechanical synchrony.
2. SD card or Cellular(available per customers’ request).
Specifications:
Description |
BiPAP DS-7(ST25) |
BiPAP DS-8(ST30) |
Work Mode |
CPAP, Auto, S, T, ST |
CPAP, Auto, S, T, ST, APCV |
Color |
Grey |
|
Sound |
<28 dB |
|
Screen |
2.8 inch TFT, 320 x 240 |
|
Pressure Range |
4-25 cmH2O |
4-30 cmH2O |
IPAP |
4-25 cmH2O |
4-30 cmH2O |
EPAP |
4-20 cmH2O |
4-20 cmH2O |
Data Storage |
SD Card |
|
Power Supply |
Input 100-240V, 50-60Hz, 1-2A; Output 24V, 2.5A |
|
DC Voltage |
24VDC, 2.5A |
|
Over-Temperature Protection |
Stop automatically, alarm with 4 times |
|
Lock Function |
Yes |
|
Screen Auto Sleep |
Auto sleep in 15 minutes, press any button to highlight screen |
|
Backup Rate |
5-50/min, adjustable |
|
I/E |
10-80% |
|
Ramp Item |
0-60min adjustable 1min/Step |
|
Auto ON/Off |
Yes |
|
Inspirate Triggle |
1-5 level |
|
Expirate Level |
1-5 level |
|
Inspirate Sensitivity |
1-5 level |
|
EPR |
Yes, 0-3 level |
|
Auto-Altitude |
Yes |
|
Leak Compensation |
Yes |
|
Awake Detection |
Yes |
|
Breath Event Detection |
Yes |
|
Water Capacity |
220ML max |
|
Humidifier Level |
Integrated Heated, 0-5 level |
|
Alert |
Power off, mask off |
|
Dimensions(cm) |
28L x 14W x 9.5H(machine); 38.5L x 36.5W x 16H(1pc carton) |
|
Weight(with humidifier) |
1.6Kg(net weight); 3.9Kg(gross weight) |
With more than 20 years experience in ophthalmology, Chongqing Vision Star now has become a professional manufacturer and supplier for ophthalmic and optometry equipment. Our main products include slit lamp, fundus camera, tonometer, OCT machine, AB scan, vision field analyzer, etc. These products are CE and FDA approved. With high technology and artifical intelligence, our ophthalmology diagnostic machines show clear image and accurate results of eyes, helping doctors to provide treatment solution for the patient. The products have been exported to more than 100 countries, and widely praised among our customers. Our company have expert sales team and technician team, provide 1-3 years quality warranty, technical support, and life time after-sales service. We are committed to building a good brand, providing sincere service, and establishing long-term cooperative relationship with our customers. We are glad to have video call with you, introducing our product details to you so that you can know our company and our products better. Please contact us if you are interested in BiPAP DS-7 & DS-8 Ventilator.
