YZ-20P5 12X Ophthalmic Operation Microscope
MOQ: 1 Set
YZ-20P5 Operation Microscope
Video
YZ-20P5 is a small-sized and portable ophthalmic operation microscope, and it can also be used in ENT and other micro-surgeries.
This microscope is manufactured with a pair of binocular eyepieces, three steps magnification, and red-reflex filter to meet most surgery requirements. This operating microscope offers clear image and large field of vision. A cold light source with quality halogen bulbs is used in the illumination system and it provides soft light, which is harmless to eye tissues.

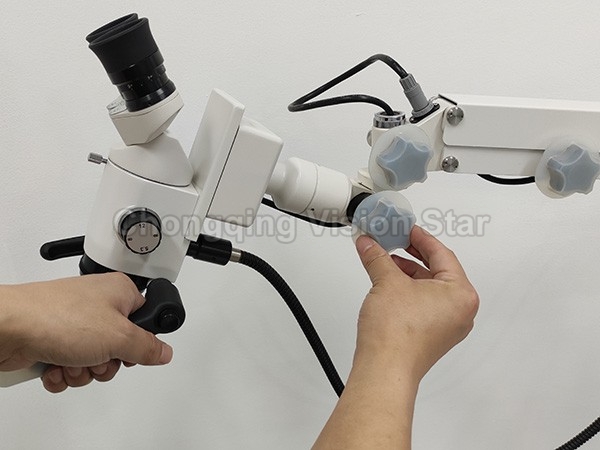

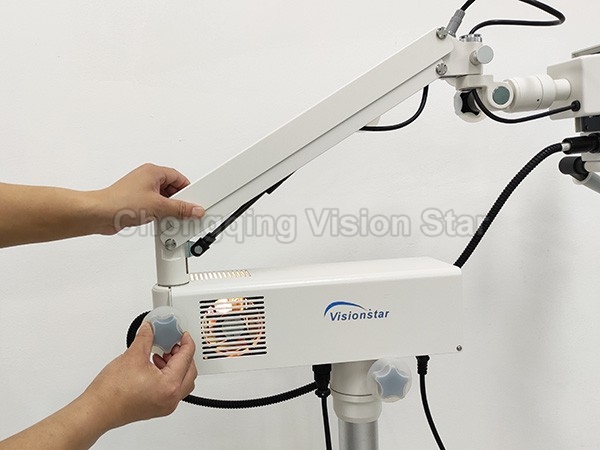

A spring balance system is designed for the arm so that the microscope can move upwards and downwards, and stop at any desired position. You can easily and smoothly adjust magnification, focusing and inclination during the surgery. Multifunctional foot switch will help you improve the efficiency of your work.
Design Features
Foot Switch for Microscope Height Adjustment
Clear View from Eyepieces
Two types to choose
Technical Specification:
Eye piece Magnification | 12.5x |
Objective Lens | f=200mm |
Working Distance | 190mm |
Magnification for Main Microscope | 5.3x, 8x, 12x |
Diameter of Field | ∮37mm, ∮25mm,∮16.7mm, |
Adjustable Diopter | ±6D |
Adjustable Range of Pupil Distance | 50mm ~ 80mm |
Maximal Resolution | 100LP/m |
Illumination Source | 12V/100W, Medical cold-reflection Halogen Lamp |
Illumination Type | 6° 0 °Coaxial cold light source illumination |
Coaxial Illumination | ≥ 30000lx |
Reaching Radius of Arm | 870mm |
Adjustable Vertical Range | 700mm ~ 1100mm |
Fine Focus Range | 30mm |
Input Voltage | AC 220V ± 10% /50HZ ±1HZ, AC 110V±10%/60HZ ±1Hz |
Power | 120VA |
Fuse | T-type AC 250V T1.25A AC 125V T2.5 A |
Electrical Safety Standard | Executive to GB 9706.1-2007, Class I |

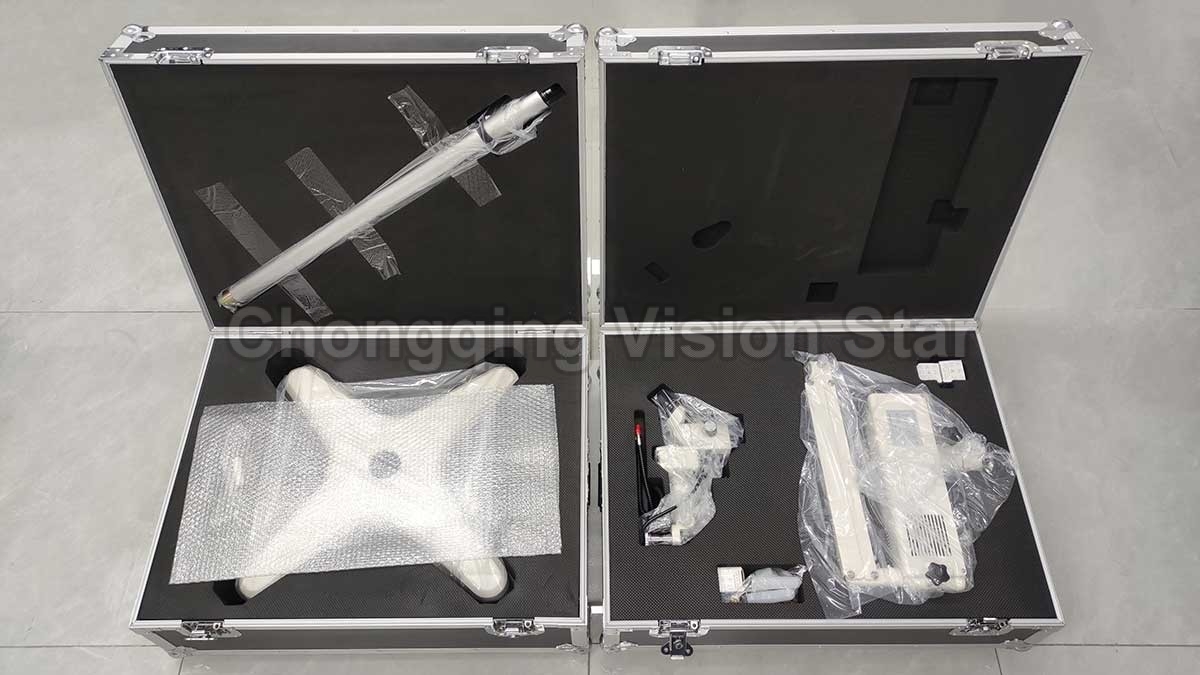

Packing Volume | 0.2cbm, 1 cartons |
Total Gross Weight | 41kg |
With more than 20 years experience in ophthalmology, Chongqing Vision Star now has become a professional manufacturer and supplier for ophthalmic and optometry equipment. Our main products include slit lamp, fundus camera, tonometer, OCT machine, AB scan, vision field analyzer, etc. These products are CE and FDA approved. With high technology and artifical intelligence, our ophthalmology diagnostic machines show clear image and accurate results of eyes, helping doctors to provide treatment solution for the patient. The products have been exported to more than 100 countries, and widely praised among our customers. Our company have expert sales team and technician team, provide 1-3 years quality warranty, technical support, and life time after-sales service. We are committed to building a good brand, providing sincere service, and establishing long-term cooperative relationship with our customers. We are glad to have video call with you, introducing our product details to you so that you can know our company and our products better. Please contact us if you are interested in YZ-20P5 12X Ophthalmic Operation Microscope .
