HV-300E Electrosurgical Generator

Model: HV-300E

MOQ: 1 Set

Quantity:

Trusted Services: 1. Video chat to check our factory and products; 2. Free online technical support and training; 3. Free online installation support; 4. 1-3 Years quality warranty; 5. Lifetime after sales support.

Get Price Now

Chat on WhatsApp: whatsapp +8613618377608

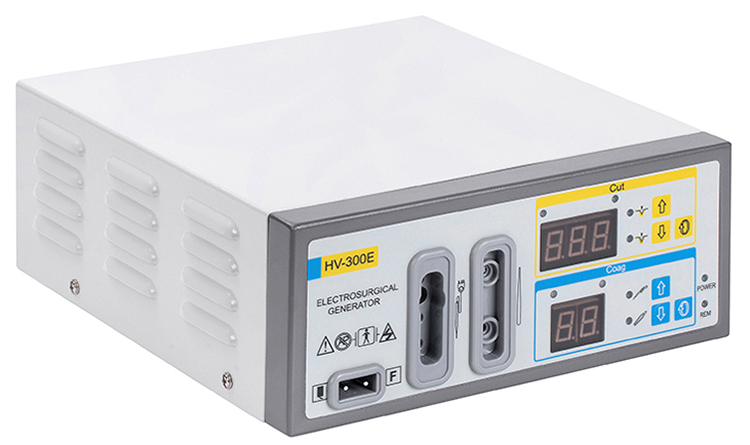

HV-300E Electrosurgical Generator

Features:
Intelligent Device System
The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for us in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.
REM (Return Electrode Monitoring):
Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Compatible with Other Equipments:
▪ Optimum Smoke Evacuation System
Multilanguage Available:
Language options: English, Spanish, Portuguese, Turkish and etc
Application of Use:
General Surgery; Dermatology; Vascular Surgery; Obstetrics and Gynecology
ORL/ENT; Minimally Invasive Surgery (MSI)
Cerebral surgery;Neurosurgery, Orthopedics & Plastic Surgery.
Low Frequency Leakage:
Normal Polarity, Intact Chassis Ground: <10μA
Normal Polarity, Ground open< 50μA
Reverse Polarity, Ground Open< 50μA
Sink Current, 140V Applied, All inputs < 50μA
Power Readouts
Agree with actual power into rated to within±20% or 5W, whichever is greater, Dosage Error monitor.

  HV-300E Electrosurgical Generator HV-300E Electrosurgical Generator HV-300E Electrosurgical Generator HV-300E Electrosurgical Generator

Specifications:

Main Frequency

512 KHz

Power Supply

110V/60Hz;220V/50Hz

Weight

6.5KG

Dimension

28*38*40

High Frequency Leakage

Monopolar: < 150mA;

Bipolar < 60mA

Low Frequency Leakage

Normal Polarity, Intact Chassis Ground: <10μA

Normal Polarity, Ground open< 50μA

Reverse Polarity, Ground Open< 50μA

Sink Current, 140V Applied, All inputs < 50μA

Power Readouts

Agree with actual power into rated to within ±20% or 5W, whichever is greater, Dosage Error monitor.





With more than 20 years experience in ophthalmology, Chongqing Vision Star now has become a professional manufacturer and supplier for ophthalmic and optometry equipment. Our main products include slit lamp, fundus camera, tonometer, OCT machine, AB scan, vision field analyzer, etc. These products are CE and FDA approved. With high technology and artifical intelligence, our ophthalmology diagnostic machines show clear image and accurate results of eyes, helping doctors to provide treatment solution for the patient. The products have been exported to more than 100 countries, and widely praised among our customers. Our company have expert sales team and technician team, provide 1-3 years quality warranty, technical support, and life time after-sales service. We are committed to building a good brand, providing sincere service, and establishing long-term cooperative relationship with our customers. We are glad to have video call with you, introducing our product details to you so that you can know our company and our products better. Please contact us if you are interested in HV-300E Electrosurgical Generator.
